Description
Product Description

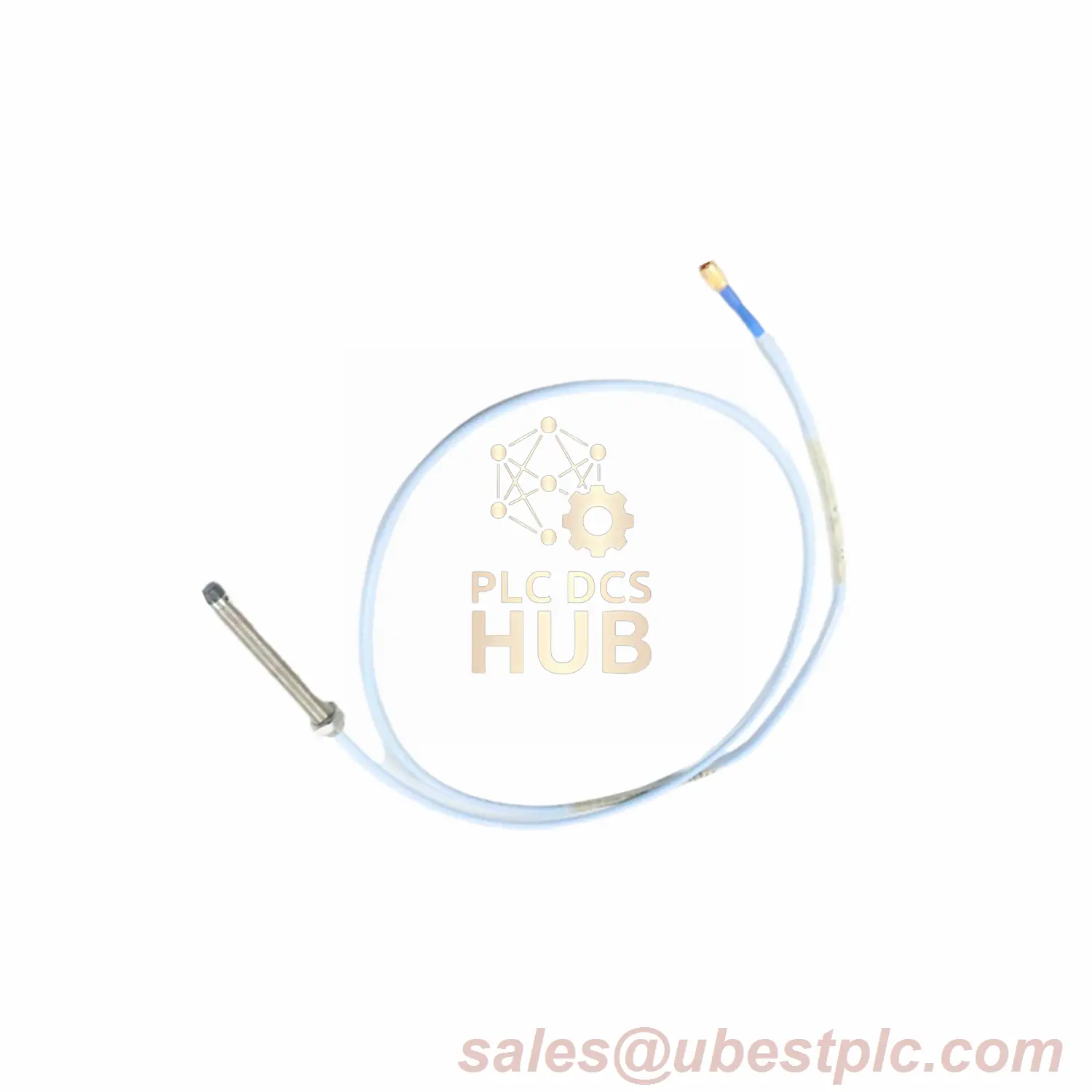

The Bently Nevada 330104-00-18-10-02-CN is an 8 mm proximity probe designed for precise vibration and position monitoring in industrial machinery. Built with a stainless steel case and PPS probe tip, it ensures durability in harsh environments.
Technical Data
- Brand: Bently Nevada
- Model: 330104-00-18-10-02-CN
- Range: Optimized for 1.27 mm (50 mils) gap with AISI 4140 steel target
- Accuracy: DC Resistance 7.59 Ω ±0.50
- Output Signal: -24 Vdc, 50 Ω resistance
- Operating Temperature: +18°C to +27°C (+64°F to +80°F)
Suffix Information
- Unthreaded Length: 00 (0 mm) - Case Length: 18 (18 mm) - Cable Length: 10 (1.0 meter / 3.3 ft) - Connector Type: 02 (Miniature ClickLoc) - Approval: CN (Country-Specific)
Installation Guide
Use M10 x 1 threaded mounts. Ensure proper sealing with Viton® O-ring. Operate at -17.5 Vdc to -26 Vdc. Avoid voltage above -23.5 Vdc to maintain linear range.
Application Examples
- Industrial turbine vibration monitoring
- Rotating machinery shaft position detection
Contact Information
For inquiries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
