Description
Description

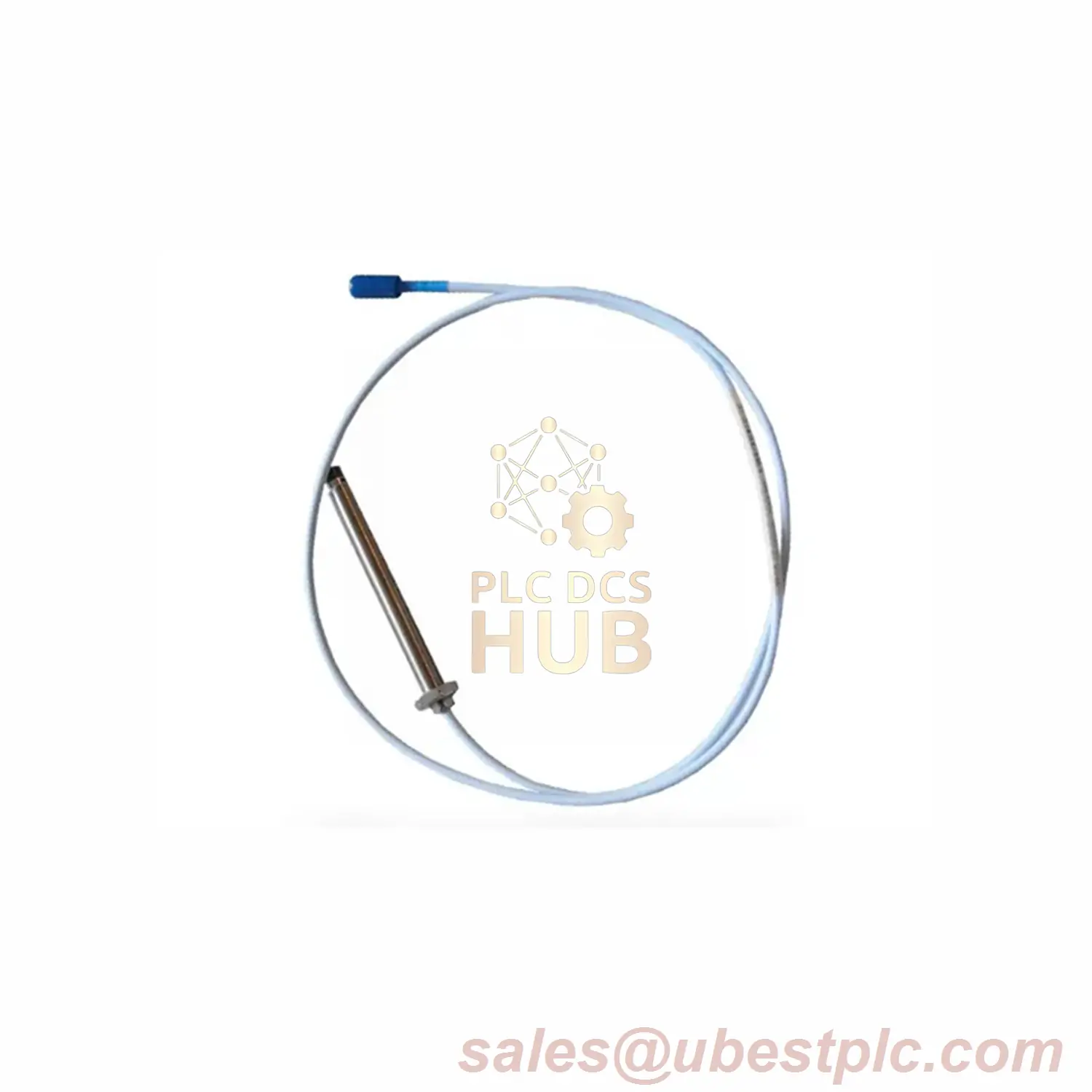

The Bently Nevada 330104-00-02-90-02-CN 3300 XL 8 mm Proximity Probe is designed for accurate, non-contact shaft vibration and position monitoring. It ensures reliable performance in harsh environments and works with 3300 XL Proximitor Sensors.
Technical Data for 330104-00-02-90-02-CN
- Probe Type: 3300 XL 8 mm
- Thread: M10 x 1 with armor
- Length: 9.0 meters (29.5 feet)
- Connector: Miniature coaxial ClickLoc
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: Stainless Steel (AISI 303/304)
- Voltage: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance: 9.87 ± 0.50 Ω
- Seal: Viton® O-ring
- Temperature: -55°C to +232°C
- Approval: CN (Country-Specific)
Installation Guide
Mount using the M10 x 1 thread. Align properly with the target for best accuracy. Use with 3300 XL Proximitor Sensors for best results.
Compatibility
- Works with Bently Nevada 3300 XL Proximitor Sensors
- Supports standard 8 mm extension cables
- Designed for AISI 4140 steel targets
Certifications
- Explosion Proof: AEx/Ex ia IIC T5…T1 Ga
- Hazardous Areas: Class I, Zone 0 & Zone 2
- Intrinsic Safety: ATEX and IECEx certified
Packaging & Warranty
- 1 x Bently Nevada 3300 XL 8 mm Proximity Probe
- Standard manufacturer packaging
- Warranty: 12 months
Applications
- Rotating machinery monitoring
- Gas & steam turbines, compressors
- Pumps, motors, generators
- Industrial automation
