Description
Product Description

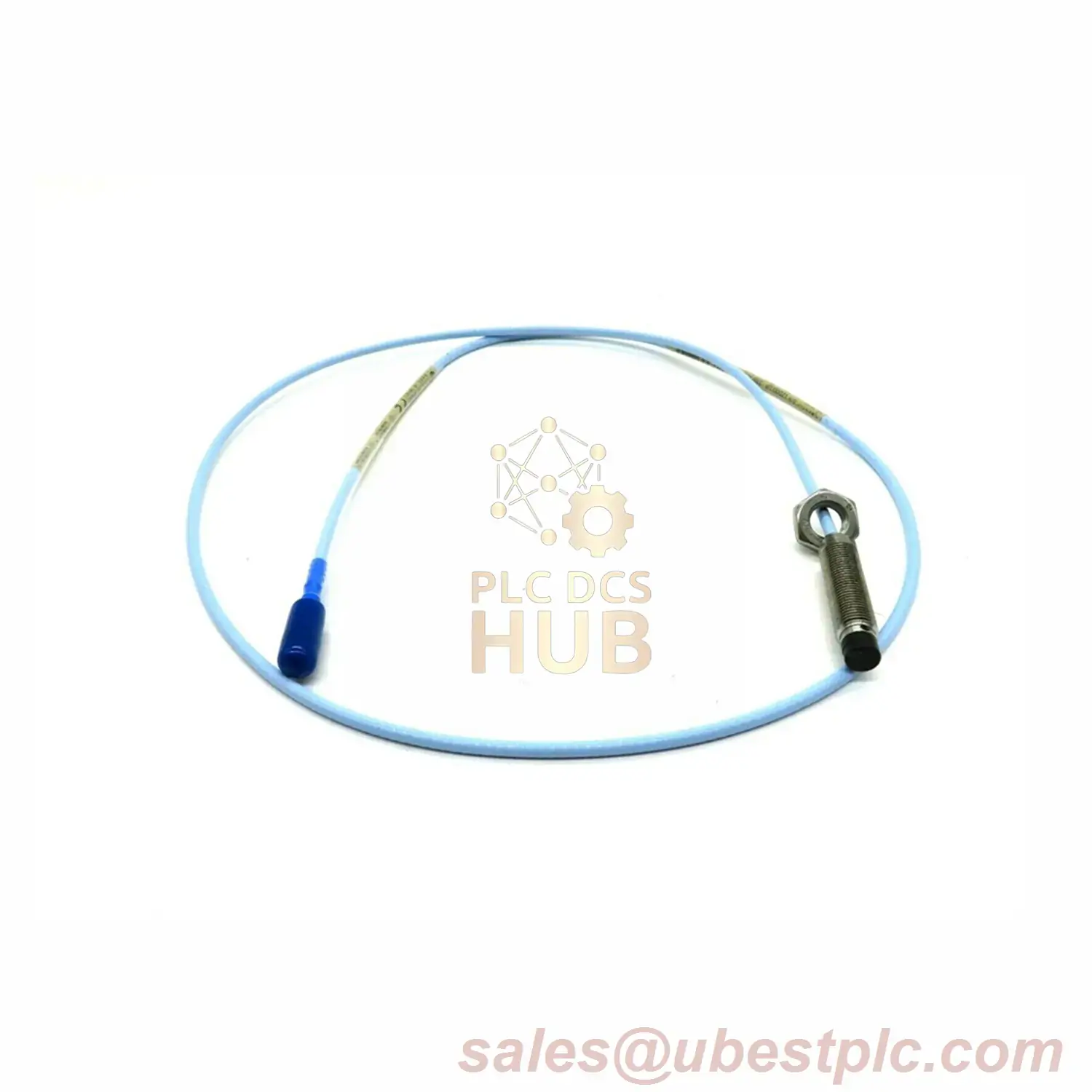

The Bently Nevada 3300 XL 8 mm Proximity Probe (P/N: 330104-05-11-90-11-CN) is a high-precision sensor designed for industrial machinery monitoring. It features a robust stainless steel case, PPS probe tip, and Viton® O-ring sealing for reliable performance in harsh environments. The probe includes a 9.0-meter FluidLoc cable with a ClickLoc connector for secure installation.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 3300 XL 8 mm Proximity Probe |
| Full Suffix | 330104-05-11-90-11-CN |
| Range | ±1.27 mm (50 mils) |
| Accuracy | 9.87 Ω ±0.50 Ω (9.0m cable) |
| Output Signal | -24 Vdc, 50 Ω resistance |
| Operating Temp. | -55°C to +232°C (probe only) |
Installation Guide
- Use M10x1 threaded mounting
- Gap probe at 1.27 mm from target
- Max altitude: 2000 meters
Compatibility
Works with 3300 XL 8mm Proximitor Sensors. Requires AISI 4140 steel target for optimal accuracy.
Certifications
- AEx/Ex ia IIC T1-T5 (Zone 0)
- AEx/Ex nA IIC T1-T5 (Zone 2)
- Class I/II/III, Groups A-G
Package Includes
- 1x 8 mm Proximity Probe
- ClickLoc connector protector
- Installation manual
Warranty
1-year limited warranty against manufacturing defects.
Application Examples
- Steam turbine vibration monitoring
- Compressor shaft position detection
- Generator bearing health analysis
