Description
Complete Suffix Breakdown for 330851-02-000-066-10-00-00
| Position | Code | Description |
|---|---|---|
| 1-2 | 02 | M30x2 Threaded Case |
| 3-5 | 000 | 0in Unthreaded Length |
| 6-8 | 066 | 66mm Overall Case Length |
| 9-10 | 10 | 1.0m Cable (3.3ft) |
| 11-12 | 00 | No Armor |
| 13-14 | 00 | No Agency Approvals |
Critical Technical Data
| Parameter | Value |
|---|---|
| Probe Resistance (1m) | 6.2Ω ±0.5 |
| Temperature Range | -35°C to +200°C (+250°C for 24hr max) |
| Cable Type | 75Ω Triaxial PFA FluidLoc® |
| Thread Torque Limit | 68 N·m (50 ft·lb) |
| Weight (1m cable) | 230g / 8.1oz |
Certification Details
- FCC Part 15 – Compliance ID: 330851-02
- EN 61000-6-2/4 – EMC Industrial Standards
- ABS Type Approval – Marine Rule 1-1-4/7.7
- ATEX/IECEx – Ex nA IIC T5 Gc (Zone 2)
Real-World Application
Used in chemical processing pumps to monitor seal failures in corrosive liquid transfer systems with temperatures up to 180°C.
Full Packaging List

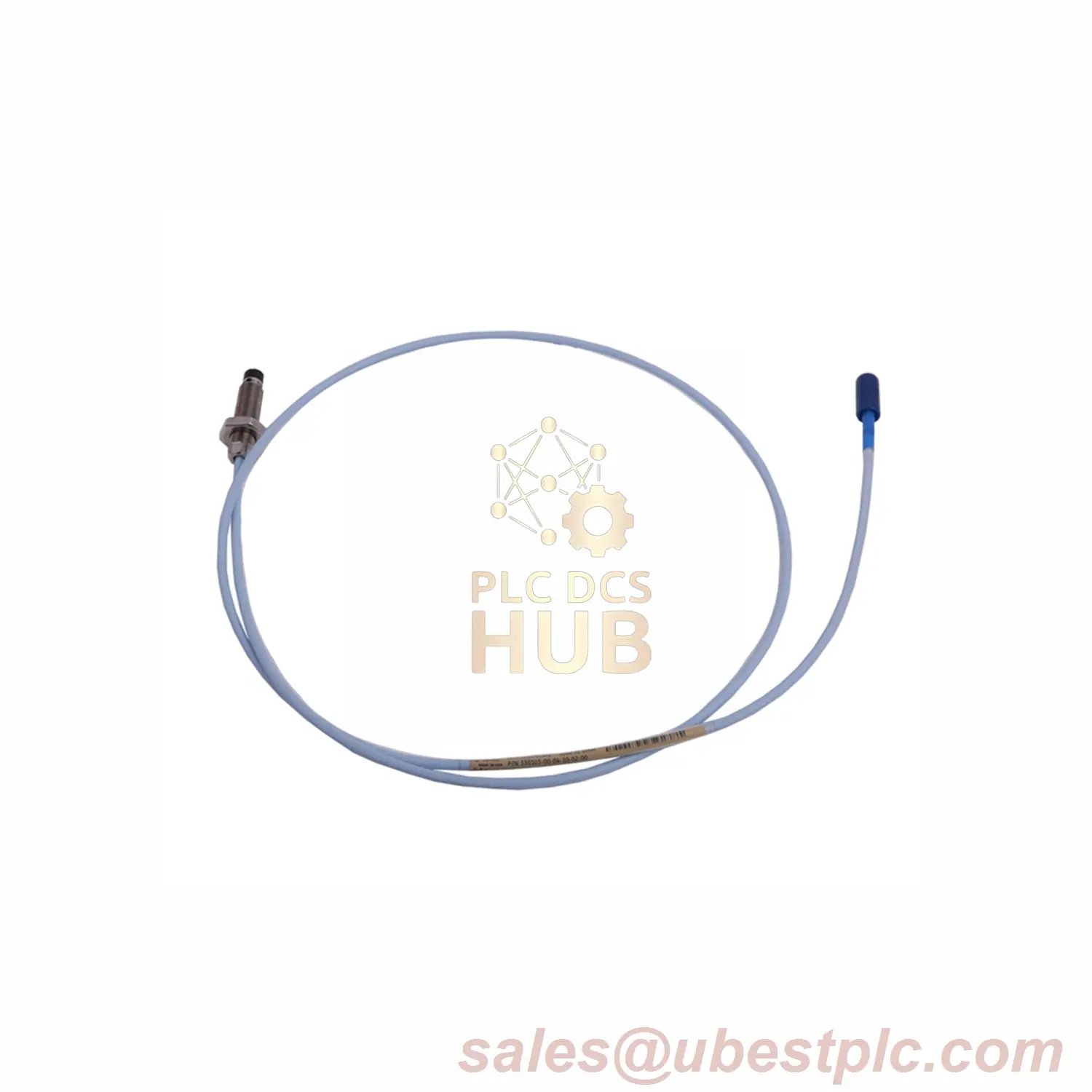

- 1x Probe (330851-02-000-066-10-00-00)
- Installation Drawings
- 1-Year Limited Warranty
Contact for Support
Email: sales@ubestplc.com
