Product Description

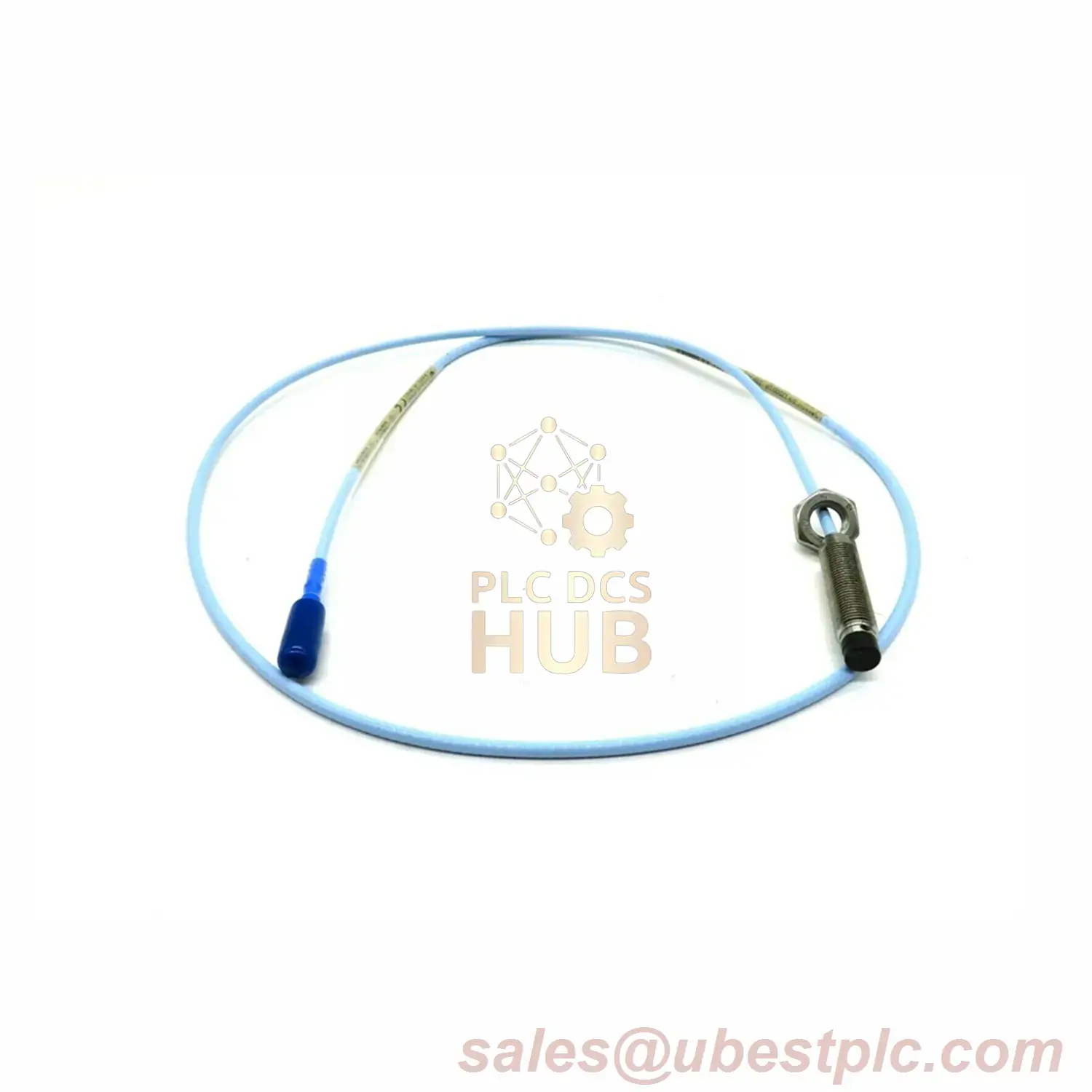

The Bently Nevada 330851-02-000-030-10-00-CN 3300 XL 25 mm Proximity Probe is a rugged sensor designed for harsh industrial environments. It replaces older 7200 series probes and works in high-temperature settings up to 200°C (392°F), with short-term tolerance up to 250°C (482°F). Features include a stainless steel case, PEEK tip, and FluidLoc cable for durability. Ideal for steam turbines, pumps, and heavy machinery.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 25 mm Proximity Probe
- Full Suffix: 330851-02-000-030-10-00-CN
- Range: 25 mm
- Accuracy: ±0.5 ohms (probe resistance)
- Output Signal: 75 Ω triaxial cable
- Operating Temp: -35°C to +200°C
- Probe Resistance: 6.2 ±0.5 ohms (1m length)
- Cable Length: 1.0m (3.3 ft), 5m, or 9m options
- Weight: 230g (8.1 oz) without armor
Installation Guide
- Torque: Max 163 N·m (120 ft·lb), recommended 68 N·m (50 ft·lb)
- Thread Type: M30x2 (Case Option 02)
- Material: AISI 304 SST case, PEEK tip
Compatibility
Replaces 7200 25mm/35mm probes and DE Integral systems. Compatible with side/rear exit configurations.
Certifications
- FCC Part 15
- ATEX/IECEx (Zone 0/2)
- EMC, RoHS, ABS Maritime
Packaging & Warranty
- 1x Probe, 1x Cable (1m standard)
- Warranty: 1-year limited
Application Examples
- Steam Turbines: Monitors shaft vibration in high-heat zones.
- Power Plants: Ensures reliability in generators and pumps.
- Oil & Gas: Withstands corrosive environments.
