Bently Nevada | ATEX-Certified Industrial Vibration Probe 330851-02-000-030-50-00-00

Description

Product Summary

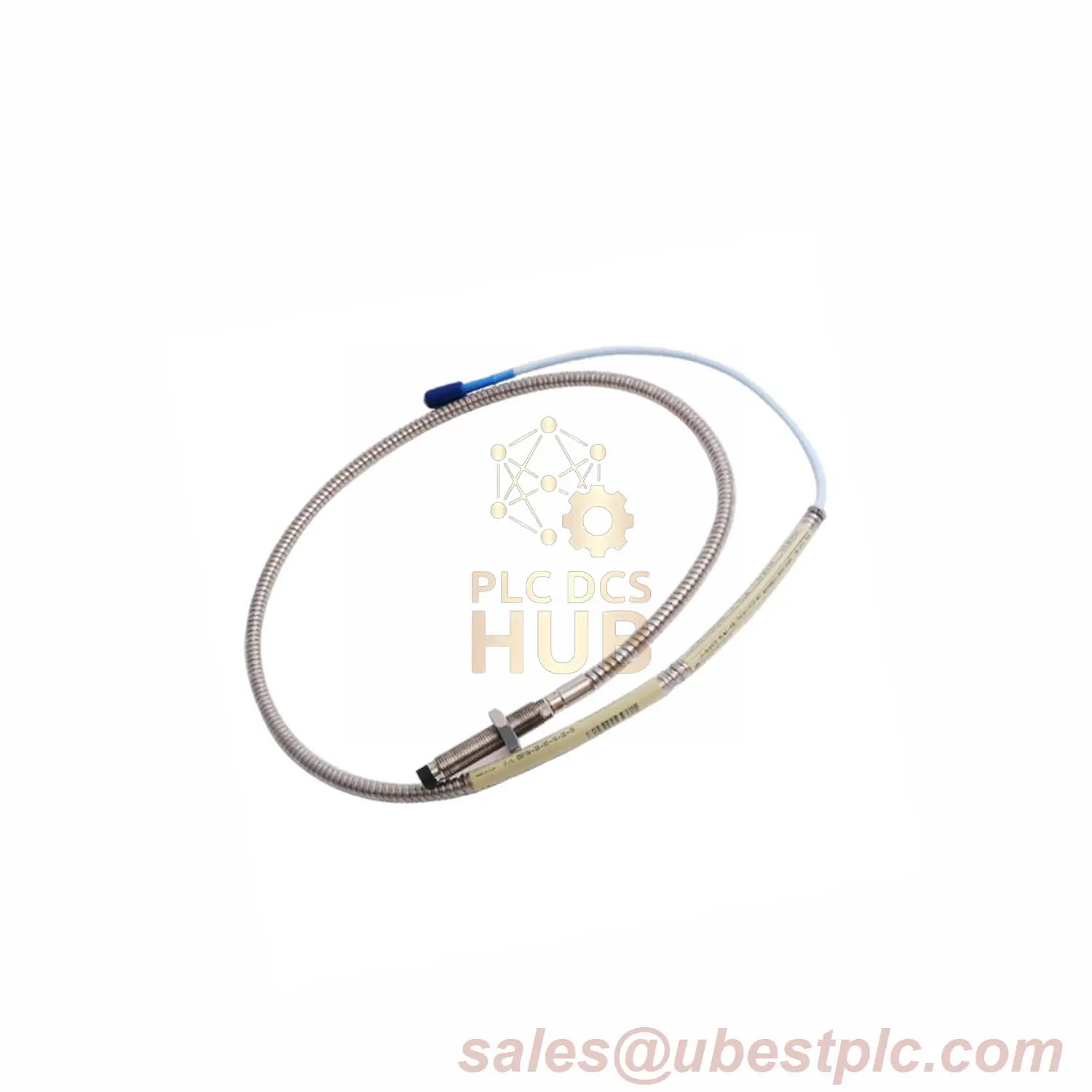

Bently Nevada 3300 XL 25mm Probe (Model: 330851-02-000-030-50-00-00) is a flexible sensor for industrial monitoring. Features a 30mm case, 5.0m cable, and no armor. Works in extreme heat up to 250°C.

Technical Details

• Brand: Bently Nevada
• 330851-02-000-030-50-00-00 Breakdown:
  • 02: M30x2 Threaded Case
  • 000: 0″ Unthreaded Part
  • 030: 30mm Case Length
  • 50: 5.0m Cable
  • 00: No Armor
  • 00: No Agency Approvals
• Key Specs:
  • Resistance: 7.5Ω ±0.8 (5.0m cable)
  • Temp Range: -35°C to +200°C (24/7)
  • Peak Temp: +250°C (24h max)
  • Weight: 230g (no armor)
  • Cable: 75Ω Triaxial, PFA Insulation

Installation Guide

• Max Torque: 163 N·m (120 ft·lb)
• Safe Torque: 68 N·m (50 ft·lb)
• Materials:
  • Case: AISI 304 Stainless Steel
  • Tip: PEEK (Heat-Resistant)

Certifications

• FCC, EMC, RoHS Compliant
• ABS Maritime Certified
• ATEX/IECEx: AEx/Ex ia IIC (Zone 0) & AEx/Ex ec (Zone 2)

Real Applications

• Food Processing: Monitor conveyor belts in hot, washdown areas.
• Railway Systems: Track wheel bearings with long 5.0m cable.
• Agricultural Machinery: Survive dust and vibrations in harvesters.

Package & Support

• Includes: Probe, 5.0m Cable, Manual
• Warranty: 1 Year (Defects coverage)

Contact: Email sales@ubestplc.com for orders or support.

Download official datasheet here: 3300-XL-25MM-Datasheet
