25 mm Proximity Probe – M30x2 Thread Bently Nevada 330851-02-000-070-10-00-CN

Description

Product Details

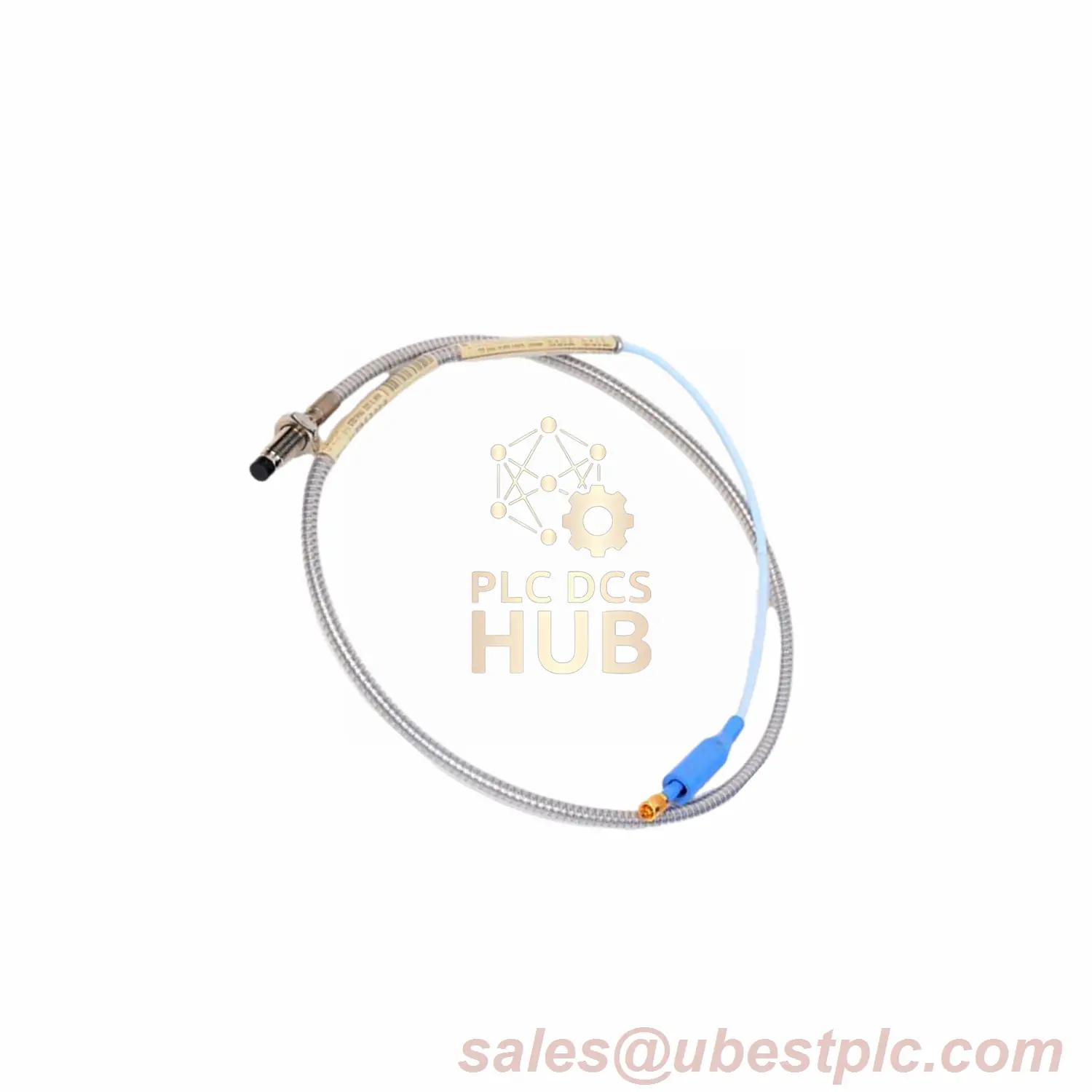

Bently Nevada 3300 XL 25mm Proximity Probe (Model: 330851-02-000-070-10-00-CN) is built for tough industrial use. Made in the USA, it works in high-heat environments like turbines and motors. Key features: **no armor**, **70mm case length**, and **1.0m cable**.

Key Specifications

• Brand: Bently Nevada
• Model Suffix: 02-000-070-10-00-CN
  • 02: M30x2 Threaded Case
  • 000: 0″ Unthreaded Length
  • 070: 70mm Overall Case
  • 10: 1.0m Cable
  • 00: No Armor
  • CN: Country-Specific Approval
• Probe Resistance: 6.2Ω ±0.5 (1.0m cable)
• Temperature Range:
  • Normal: -35°C to +200°C
  • Short-Term: +250°C (24hr max)
• Weight: 230g (no armor)
• Cable: 75Ω Triaxial, PFA Insulation

Installation Tips

• Max Torque: 163 N·m
• Recommended Torque: 68 N·m
• Material: Stainless Steel (AISI 304) Case, PEEK Tip

Certifications

• FCC Part 15, EMC EN 61000-6-2/6-4
• RoHS, ABS Maritime Standards
• ATEX/IECEx: AEx/Ex ia IIC (Zone 0) & AEx/Ex ec (Zone 2)

Where to Use

• Gas Turbines: Monitor shaft vibration in high-heat zones.
• Compressors: Detect rotor position without armor for easy installation.
• Power Generators: Reliable performance in dusty or wet areas.

Package & Support

• Includes: Probe
• Warranty: 1 Year

Need Help? Contact sales@ubestplc.com for details.
