Product Description

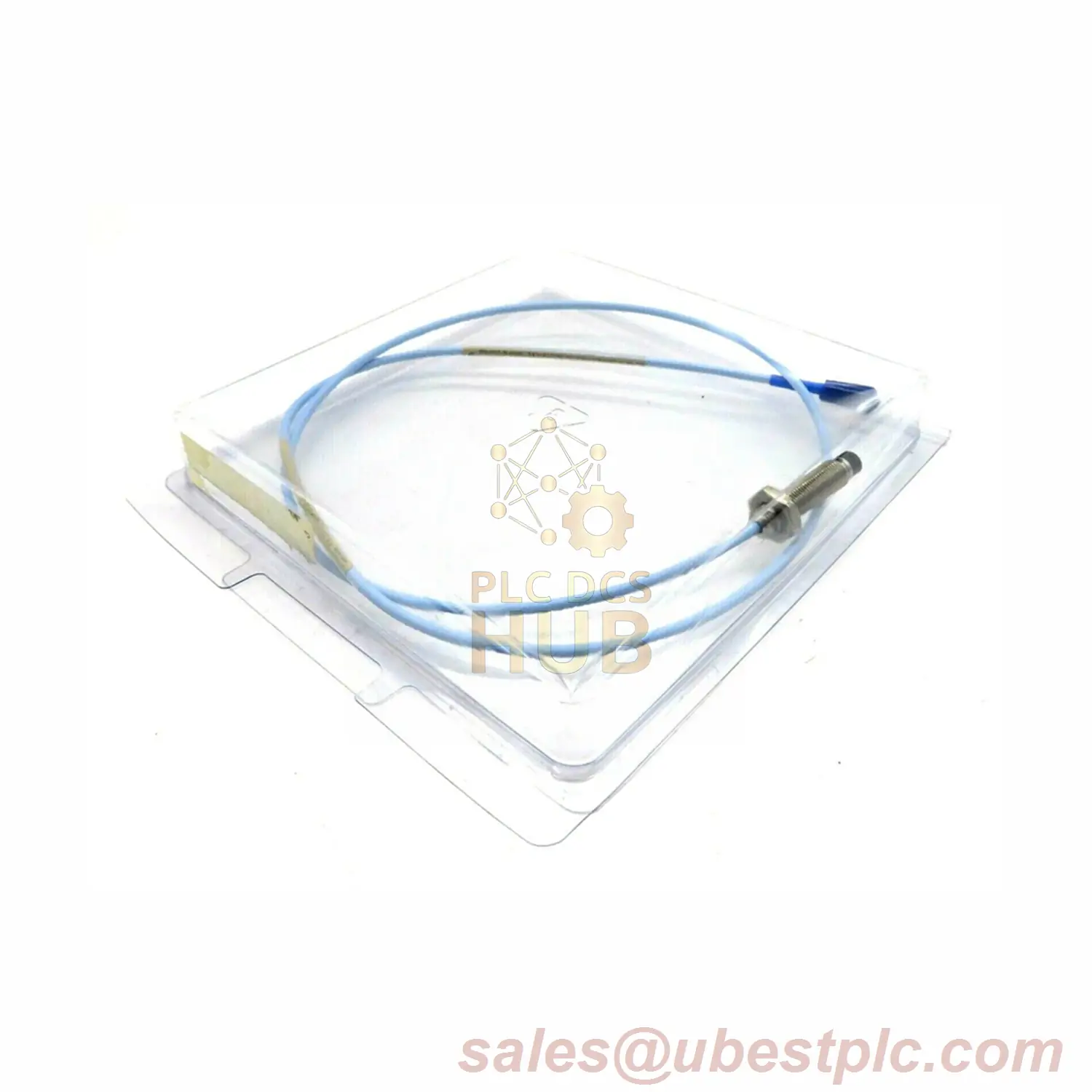

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-050-10-01-CN) is a rugged sensor designed for harsh industrial environments. It replaces older 7200 series probes and withstands extreme temperatures up to 250°C (482°F). Ideal for steam turbines, it ensures reliable accuracy with PEEK tip and stainless steel case.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330851-02-000-050-10-01-CN |
| Suffix Details | 02: M30x2 Thread 000: 0″ Unthreaded Length 050: 50mm Case Length 10: 1.0m Cable 01: SST Armor CN: Country Approval |
| Range | 25 mm |
| Accuracy | ±0.5 ohms (Probe Resistance) |
| Output | 75Ω Triaxial Signal |
| Operating Temp | -35°C to +200°C (Up to +250°C short-term) |
| Weight | 230g (without armor) / 330g (with armor) |
Installation Guide
- Max Torque: 163 N·m (120 ft·lb)
- Recommended Torque: 68 N·m (50 ft·lb)
- Material: AISI 304 SST Case, PFA Cable
Certifications
- FCC Part 15, EMC EN 61000-6-2/4
- RoHS, ABS Maritime
- ATEX/IECEx: AEx/Ex ia IIC, AEx/Ex ec
Package & Warranty
- Includes: Probe
- Warranty: 1 Year
Application Example
Used in steam turbine monitoring to detect shaft vibration and position under high-temperature conditions.
