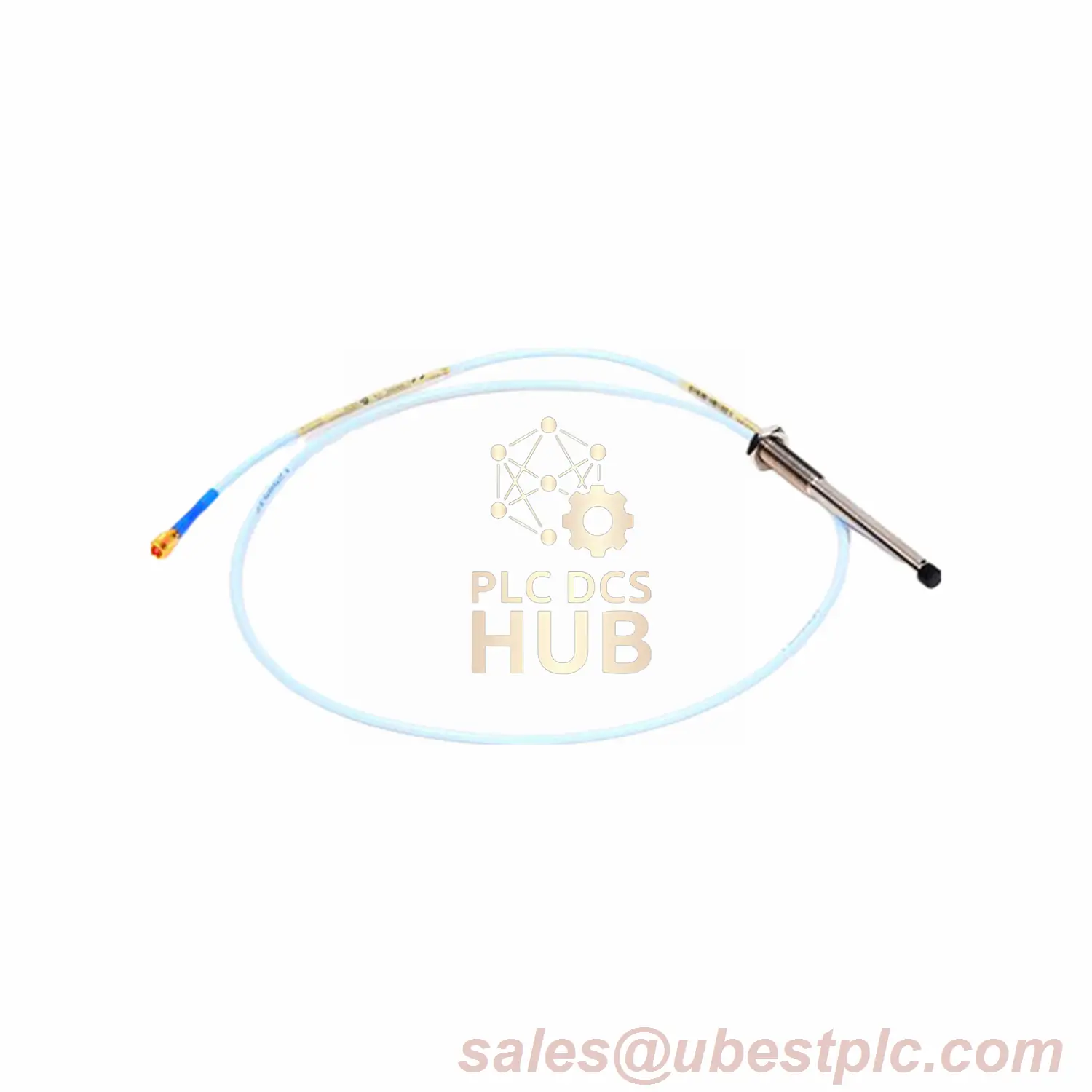

3300 XL 25 mm Proximity Probe – 330851-02-000-050-10-00-05 Bently Nevada

Description

Product Description

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-050-10-00-05) is a rugged sensor designed for harsh environments like steam turbines. It operates reliably at 200°C (392°F) continuously and withstands short-term temperatures up to 250°C (482°F).

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 25 mm Proximity Probe
• Full Suffix: 02-000-050-10-00-05
  • Case: M30x2 Thread
  • Unthreaded Length: 0 in
  • Case Length: 50 mm
  • Cable: 1.0 m (No Armor)
  • Agency: Multiple Approvals
• Resistance: 6.2 ± 0.5 Ω (Center to Outer Conductor)
• Temperature Range:
  • Operating: -35°C to +200°C
  • Short-Term: +250°C (≤24 hrs)
• Weight: 230 g (1m cable, no armor)

Installation Guide

• Torque: Max 163 N·m (120 ft·lb) | Recommended: 68 N·m (50 ft·lb)
• Avoid overtightening threaded cases.

Certifications

• FCC Part 15
• EMC: EN 61000-6-2/6-4
• RoHS 2011/65/EU
• Maritime ABS 2009
• ATEX/IECEx (Zone 0/Zone 2)

Packaging & Warranty

• Includes probe
• 12-month warranty against defects.

Application Examples

• Steam turbine vibration monitoring
• High-temperature industrial machinery.
