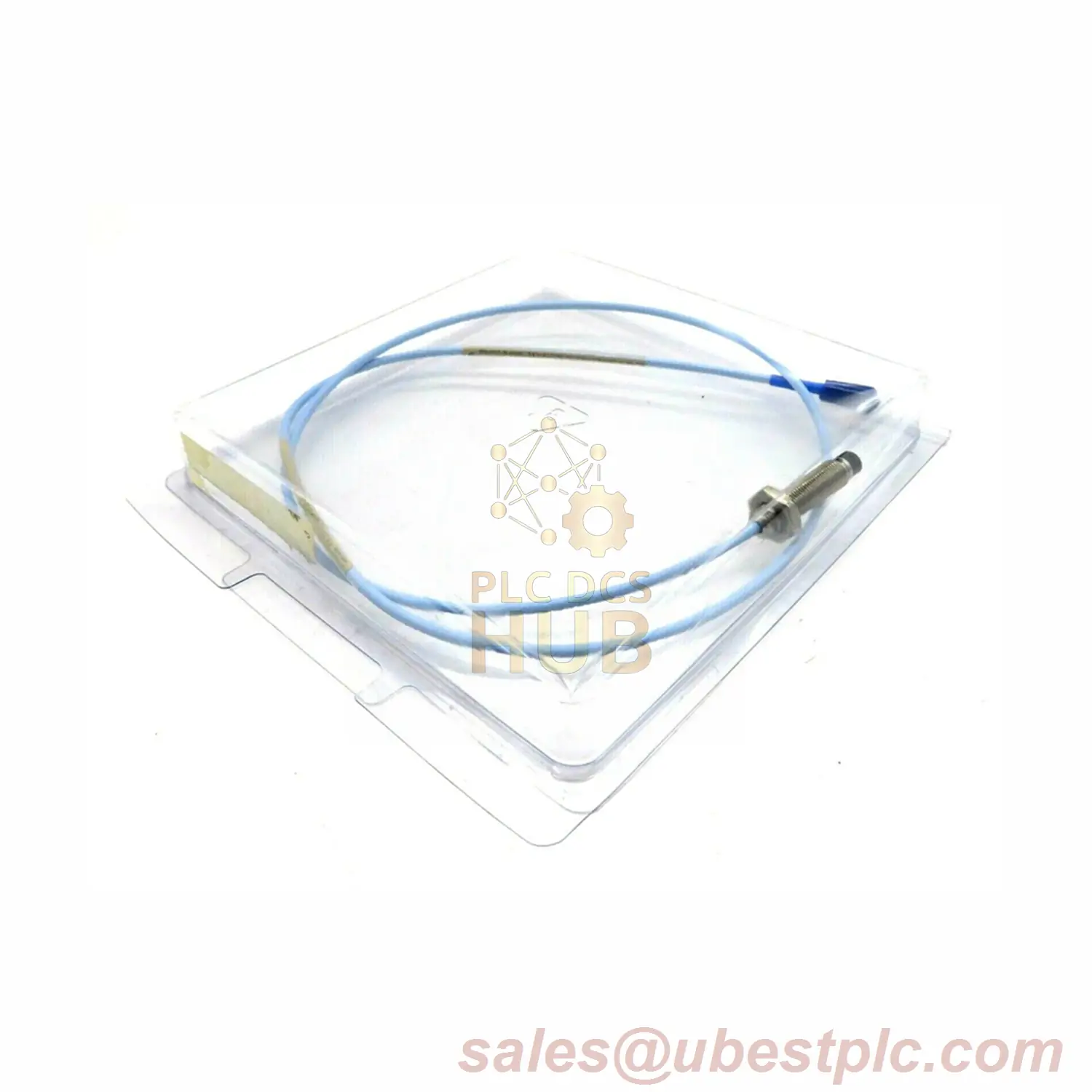

25 mm Probe – Bently Nevada 330851-02-000-080-10-01-CN

Description

Key Features

• ???? 80mm Armored Probe (Code 080/01)
• ???? China Market Ready (Code CN)
• ???? Works at -35°C to +200°C
• ???? 6.2Ω ±0.5 Precision

Full Model Code for 330851-02-000-080-10-01-CN

1. 330851 : Base Model
2. 02 : M30x2 Thread
3. 000 : 0in Unthreaded
4. 080 : 80mm Case
5. 10 : 1.0m Cable
6. 01 : SST Armor
7. CN : China Certifications

Technical Data

• ???? Range : 25mm
• ???? Max Temp : 250°C (24hr limit)
• ???? Weight : 330g (11.6oz)
• ???? Cable Types : 1m/5m/9m

Installation Guide

• ???? Torque Max : 163 N·m
• ???? Safe Torque : 68 N·m (50 ft·lb)
• ???? Replaces : 7200 35mm Systems

Certifications

• ????️ China GB/T 3836 Standards
• ????️ FCC Part 15
• ????️ EN 61000 EMC
• ????️ ABS Marine Type

Industry Application

Monitors oil refinery pumps detecting shaft vibration in explosive atmospheres (+190°C).

Package Contents

• ???? 1x Armored Probe (80mm) 330851-02-000-080-10-01-CN
• ???? GB/T Compliance Documents
• ???? 1-Year China Warranty

Contact Support

???? sales@ubestplc.com
