Description
Industrial Monitoring Solution

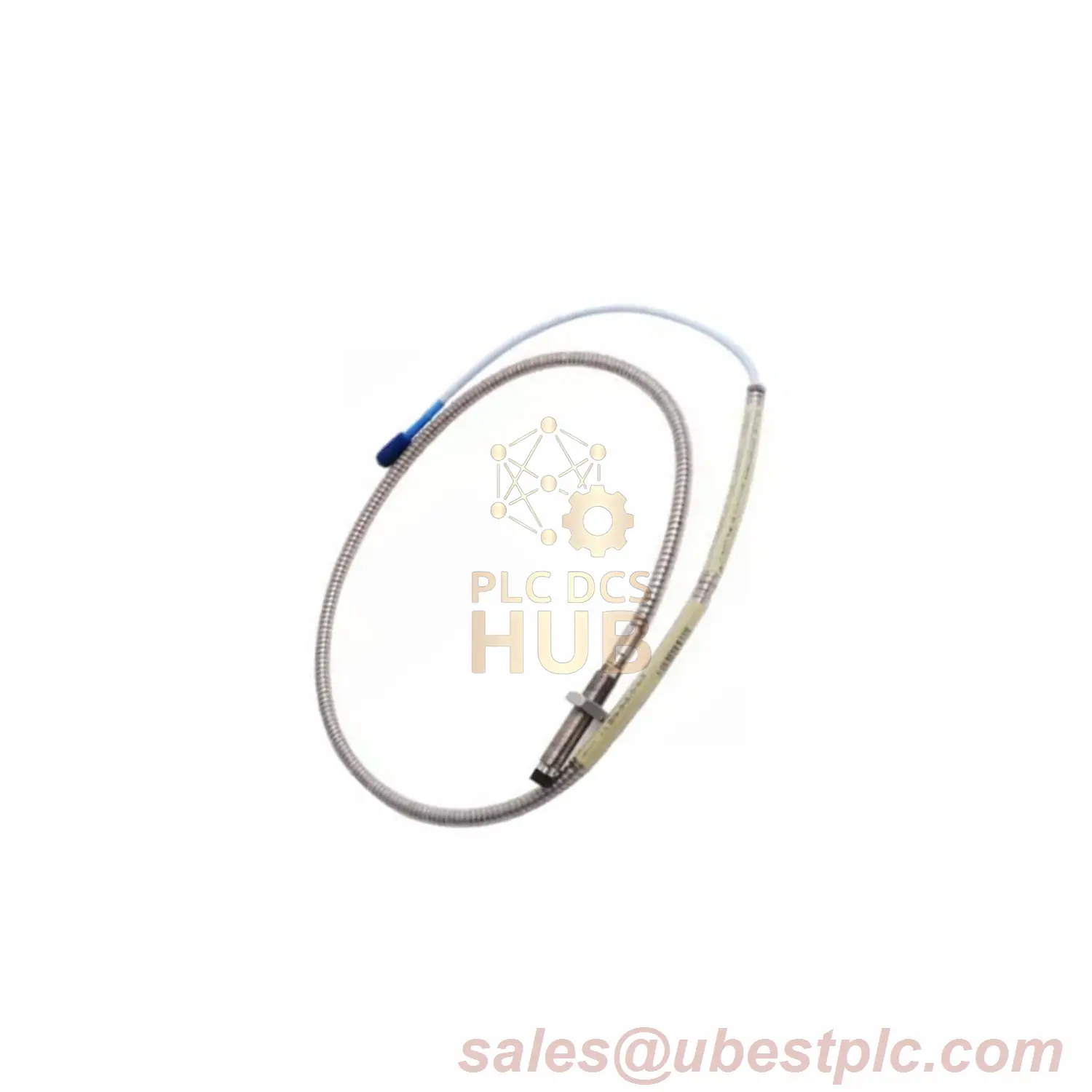

Bently Nevada 3300 XL Probe
Model: 330851-02-000-066-50-00-00
66mm Compact Design • 5m Cable • General Industrial Use
Full Product Code:
- 02 = M30x2 Thread
- 000 = No Unthreaded Section
- 066 = 66mm Case
- 50 = 5.0m Cable
- 00 = No Armor
- 00 = No Safety Certifications
Technical Specifications for 330851-02-000-066-50-00-00
▷ Core Metrics:
• 7.5Ω ±0.8 Resistance
• 230g Lightweight Build
• 75Ω Triaxial Signal
▷ Environment:
• Works at -35°C to +200°C
• 250°C Max (24h)
Factory Applications
Chemical MixersMonitors agitator shafts in non-explosive areas
Packaging LinesTracks conveyor belt rollers in dry environments
Material Details
- Probe Tip: PEEK (heat-resistant plastic)
- Case: Rust-proof AISI 304 steel
- Cable: Oil-resistant PFA coating
Installation Guide
| Task | Specification |
|---|---|
| Max Torque | 163 N·m (120 ft·lb) |
| Recommended Torque | 68 N·m (50 ft·lb) |
What’s Included
- 1x Probe (66mm case)
- 5.0m FluidLoc® Cable
- Basic Installation Manual
Contact Support
Email sales@ubestplc.com for non-hazardous area schematics
