Description
Product Summary
The Bently Nevada 3300 XL 25mm Probe (Model 330851-02-000-070-50-00-00) features a 70mm case for medium-depth installations. With a 5.0m cable and no armor (Option 00), it balances reach and durability. Made in the USA.
Technical Profile
- Full Model Code
- 330851-02-000-070-50-00-00
- 02 = M30x2 Threaded Case
- 070 = 70mm Case Length
- 50 = 5.0m Cable (16.4 ft)
- 00 = No Armor/No Certifications
- Electrical Performance
- Resistance: 7.5Ω ±0.8 (5m cable)
- Signal Type: 75Ω Triaxial
- Mechanical Specs
- Case Material: AISI 304 Stainless Steel
- Tip Material: PEEK (High-Temp Plastic)
- Weight: 230g (8.1 oz) base model
Environment Limits
- Works from -35°C to +200°C
- Handles 250°C for 24 hours
- Max Torque: 163 N·m (120 ft·lb)
Industry Applications
- Cement Plants: Monitors kiln roller vibrations in dusty, high-heat areas.
- Pharmaceuticals: Measures mixer shaft alignment in clean rooms.
- Hydroelectric Dams: Tracks turbine bearings in humid conditions.
Compliance Status
- FCC & EMC Certified
- RoHS Compliant
- Not rated for explosive zones (Approval 00)
Package Includes

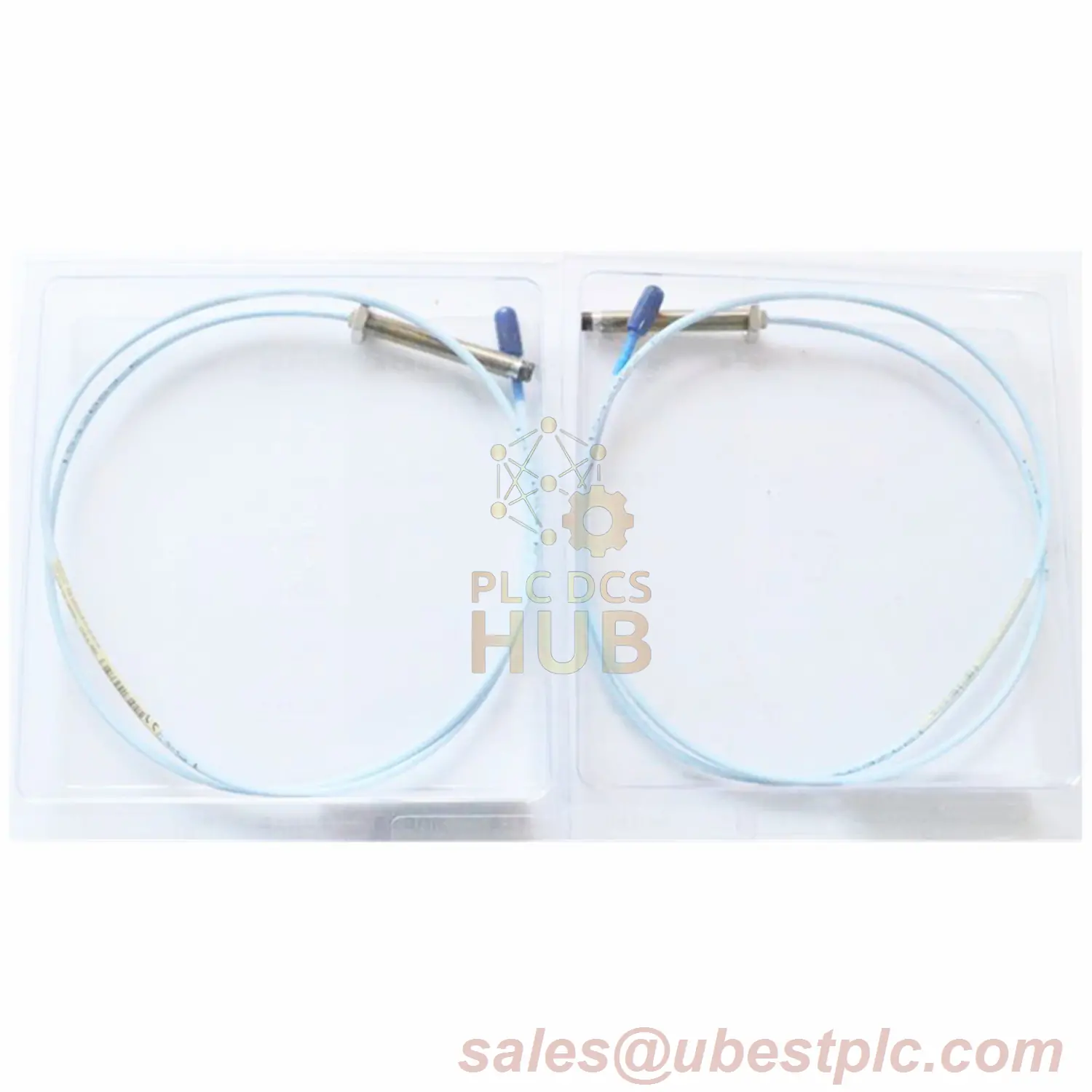

- 1x Probe (70mm case, 5m cable)
- 1-Year Factory Warranty
Contact Details
Email sales@ubestplc.com for bulk orders or specs.
