Description
Product Overview

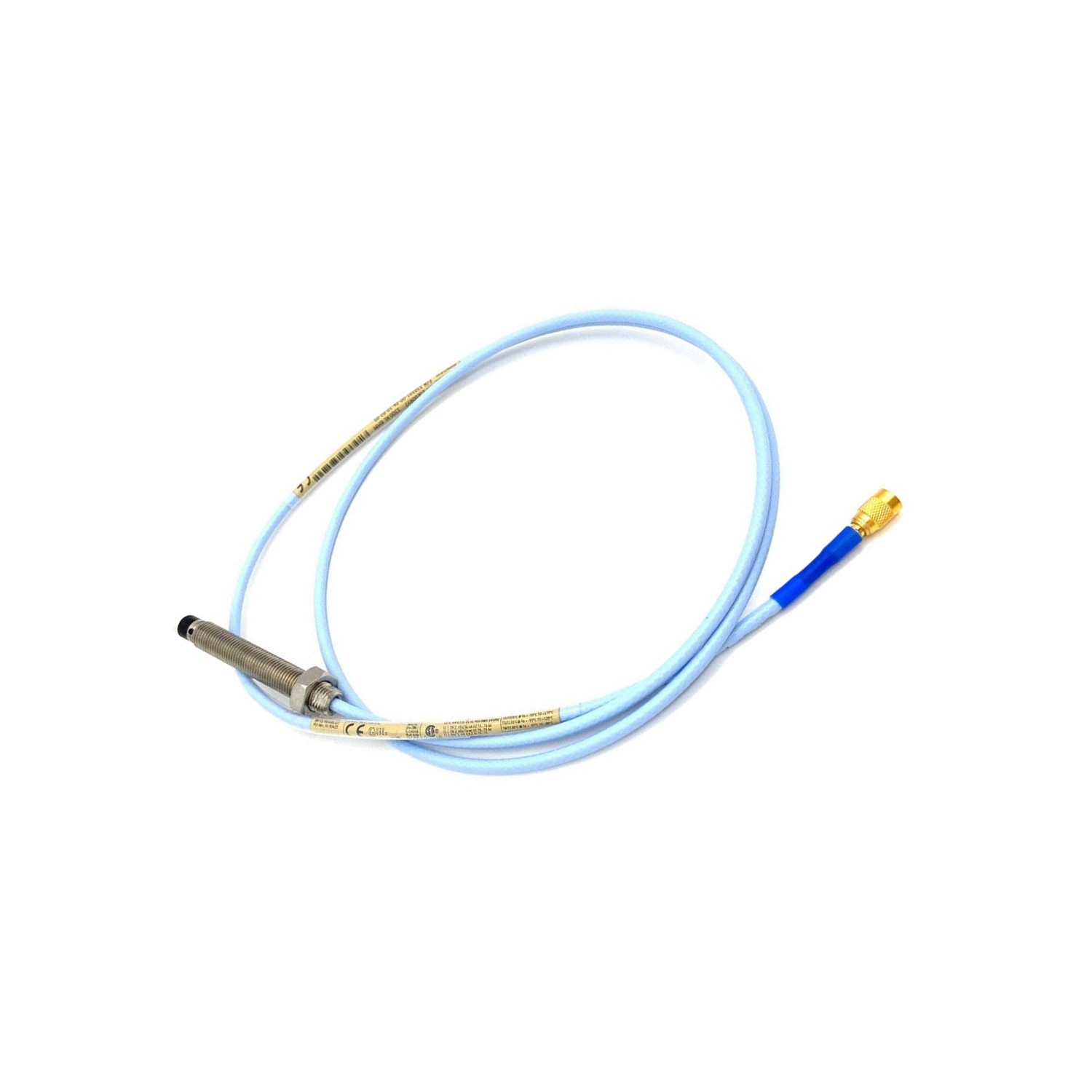

The Bently Nevada 3300 XL 25mm Probe (Model 330851-02-000-050-50-00-00) combines a 50mm case with a 5.0m cable for flexible installations. No armor or special certifications (Option 00). Built for tough conditions.
Key Specifications
- Full Model: 330851-02-000-050-50-00-00
- Case: M30x2 Threads (02) | 50mm Length (050)
- Cable: 5.0m FluidLoc® Triaxial (50)
- Resistance: 7.5Ω ±0.8 at 5m
- Temp Range: -35°C to +200°C (+250°C for 24h)
- Weight: 230g (8.1 oz) without armor
Durability Features
- Stainless Steel (AISI 304) Body
- PEEK Tip (Heat/Chemical Resistant)
- Max Torque: 163 N·m (120 ft·lb)
Industrial Uses
- Agriculture Machinery: Monitors tractor engine vibrations in dusty fields.
- Printing Presses: Tracks roller alignment in fast-moving systems.
- Plastic Manufacturing: Measures extruder screw positions under high heat.
Certifications
- FCC | EMC | RoHS Compliant
- No explosion-proof ratings (00)
Package Contents
- 1x Probe (50mm case, 5m cable)
- 1-Year Limited Warranty
Contact Us
Email sales@ubestplc.com for technical support.
