Description
Product Description

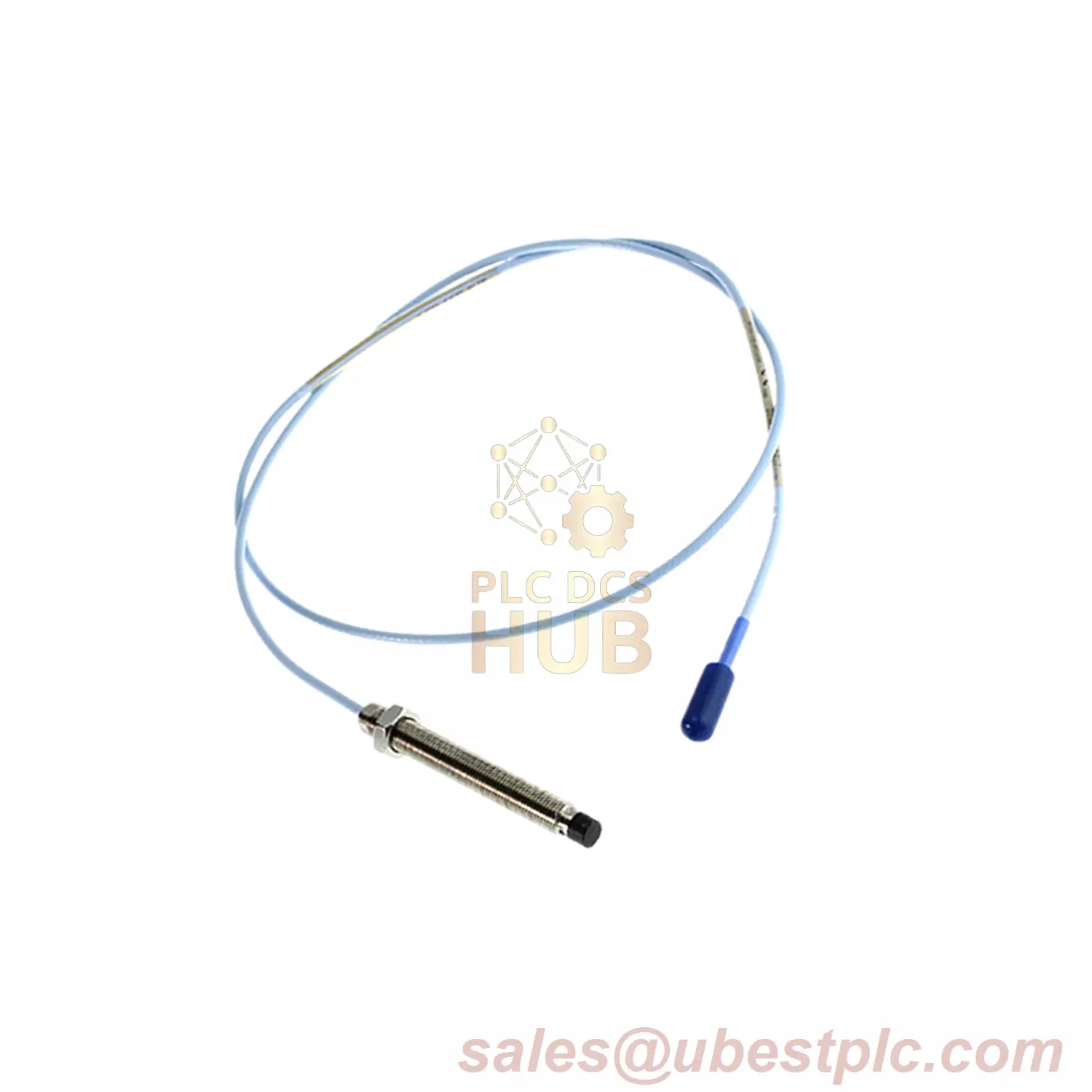

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-070-50-00-CN) is a rugged sensor designed for harsh industrial environments. It replaces legacy 25 mm and 35 mm probe systems, offering high-temperature resistance up to 250°C (482°F) short-term.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 25 mm Proximity Probe
- Full Suffix: 330851-02-000-070-50-00-CN
- Measurement Range: 25 mm
- Probe Resistance: 7.5 ± 0.8 Ω (5.0 m cable)
- Operating Temp: -35°C to +200°C (Continuous)
- Max Temp: 250°C (24 hours max)
- Cable: 75 Ω triaxial, 5.0 m length
- Output Signal: Eddy current-based
- Weight: 230 g (1m cable, no armor)
Installation Guide
Use 68 N•m (50 ft•lb) torque for threaded M30x2 cases. Avoid exceeding maximum ratings. Compatible with 7200 series and 25 mm DE Integral systems.
Certifications
- FCC Part 15
- EN 61000-6-2/4
- RoHS 2011/65/EU
- ABS Maritime
- ATEX/IECEx: Zone 0/1/2 approved
Package Includes
- Probe assembly
- 5.0 m PFA-insulated cable
- Installation manual
- Calibration certificate
Warranty
12-month limited warranty from delivery date.
