Description
Full Product Configuration

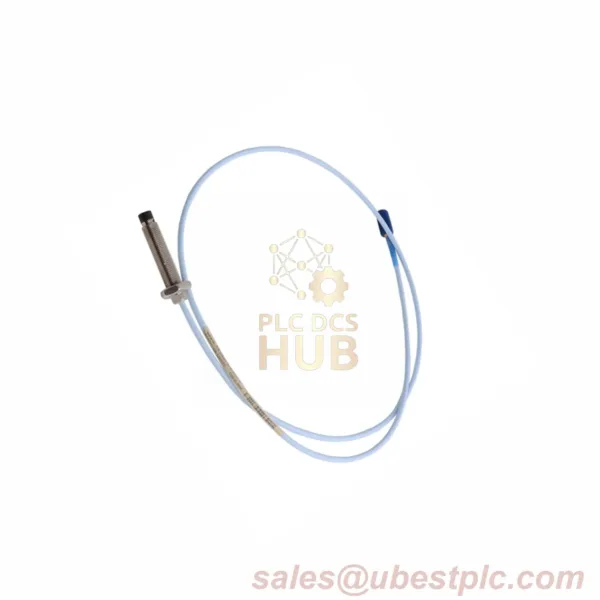

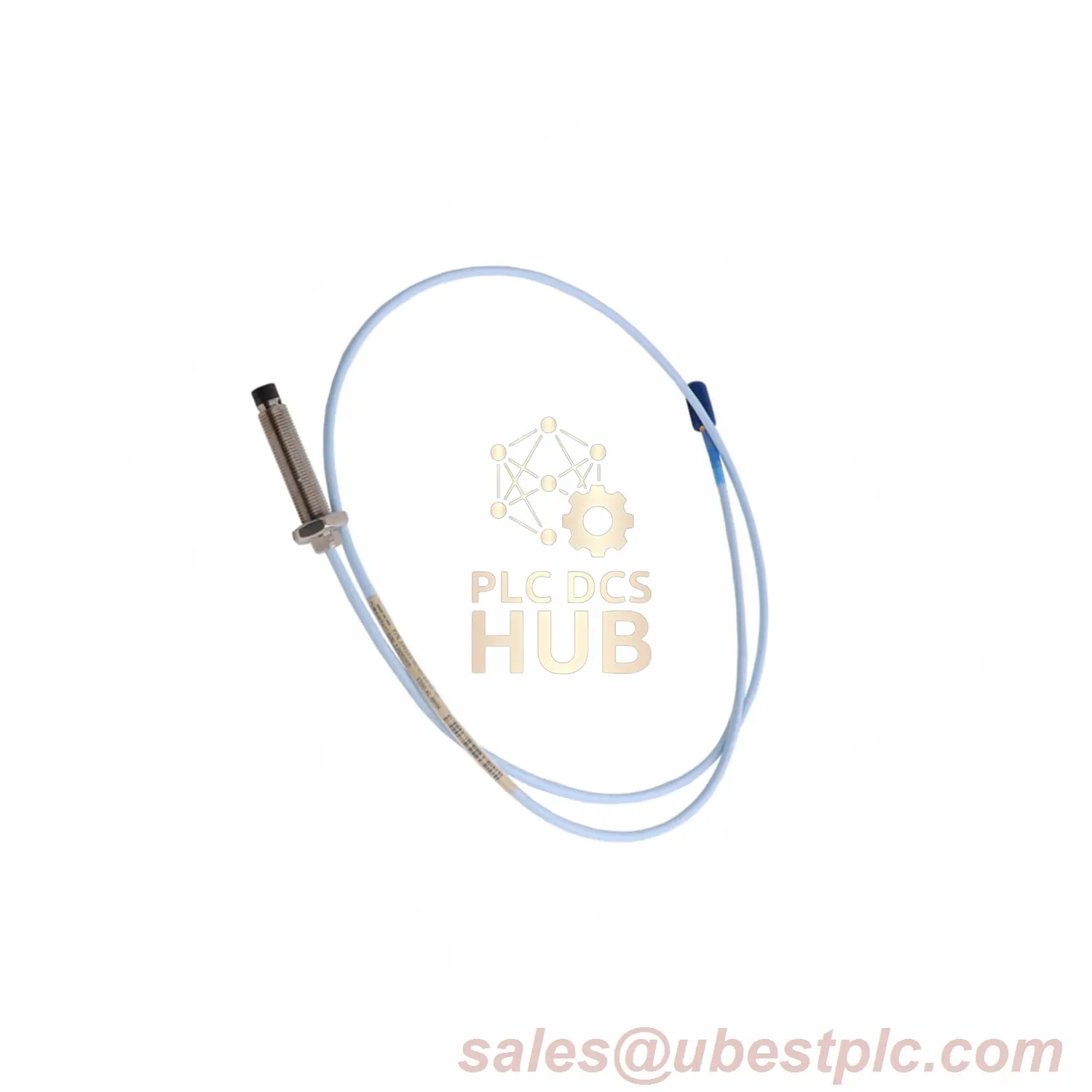

Bently Nevada 3300 XL Probe
Model: 330851-02-000-030-50-00-05
Complete Suffix Details:
- 02 – M30x2 Threaded Case
- 000 – 0in Unthreaded Section
- 030 – 30mm Case Length
- 50 – 5.0m Cable (16.4 ft)
- 00 – No Armor
- 05 – ATEX/IECEx/ABS Certified
Core Technical Data
▸ Electrical Specs:
Resistance: 7.5Ω ±0.8 (5m cable)
Signal: 75Ω Triaxial
▸ Mechanical Specs:
Case Material: AISI 304 SST
Tip Material: PEEK Polymer
Weight: 230g (8.1 oz)
Certification Details
- ATEX/IECEx Zone 0: AEx ia IIC T1-T5
- ABS Marine: Rules 1-1-4/7.7, 4-8-3/1.11.1
- Global Compliance: FCC/EMC/RoHS
Industrial Applications
Pharmaceutical:
- Monitors lyophilizer rollers in -50°C freeze dryers
Aerospace:
- Tracks turbine blade clearance in jet engines
Temperature Performance
| Classification | Range |
|---|---|
| Standard Operation | -55°C to +232°C |
| Short-Term Exposure | +280°C (536°F) ≤24h |
Package Contents
- 1x Probe (30mm case)
- 5m FluidLoc® Cable
- Installation Torque Guide
Contact Support
Email sales@ubestplc.com for hazardous area schematics.
