Description
Full Product Configuration

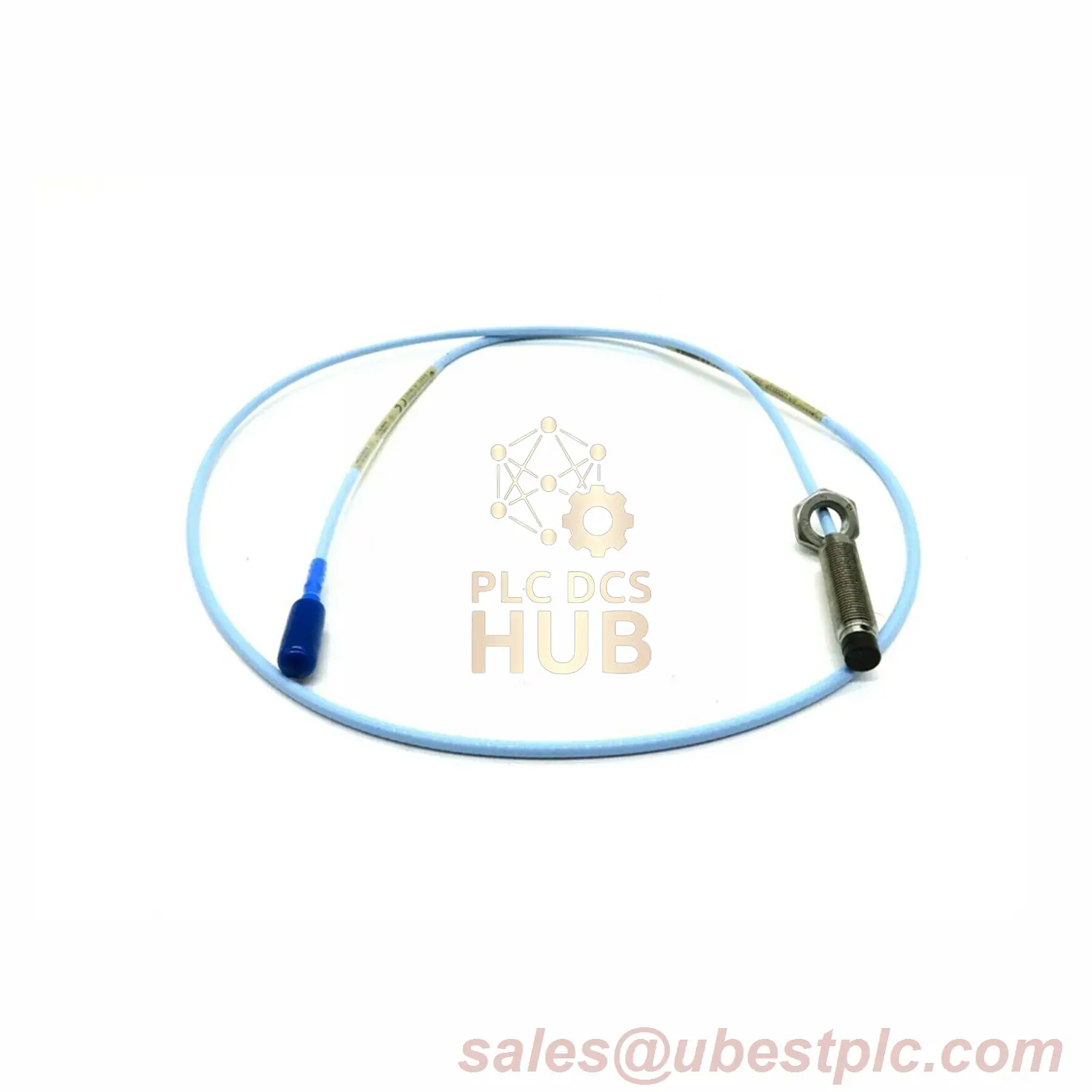

Bently Nevada 3300 XL Probe
Model: 330851-02-000-040-50-00-05
Complete Suffix Breakdown:
- 02 – M30x2 Threaded Case
- 000 – 0in Unthreaded Length
- 040 – 40mm Overall Case Length
- 50 – 5.0m (16.4ft) Cable
- 00 – No Armor
- 05 – Multiple Agency Approvals
Technical Specifications
| Electrical | Mechanical |
| • Resistance: 7.5Ω ±0.8 • 75Ω Triaxial Signal | • Case: AISI 304 SST • Tip: PEEK Polymer • Weight: 230g (8.1oz) |
| Temperature | Installation |
| • -35°C to +200°C • 250°C (24h max) | • Torque: 68-163 N·m • Replaces 7200 Series |
Certifications (Suffix 05)
- ATEX/IECEx Zone 0 & 2
- ABS Marine (Rule 1-1-4/7.7)
- FCC Part 15 | EMC | RoHS
Real-World Applications
- LNG Terminals: Monitors cryogenic pump shafts in -162°C environments.
- Steel Rolling Mills: Tracks roller bearings under heavy mechanical stress.
- Waste-to-Energy Plants: Operates in high-vibration incinerator systems.
What’s Included
- 1x Probe (40mm case)
- 5m FluidLoc® Cable
- Certification Documents (ATEX/IECEx/ABS)
- 1-Year Global Warranty
Contact
Email sales@ubestplc.com for installation drawings.
