Product Overview

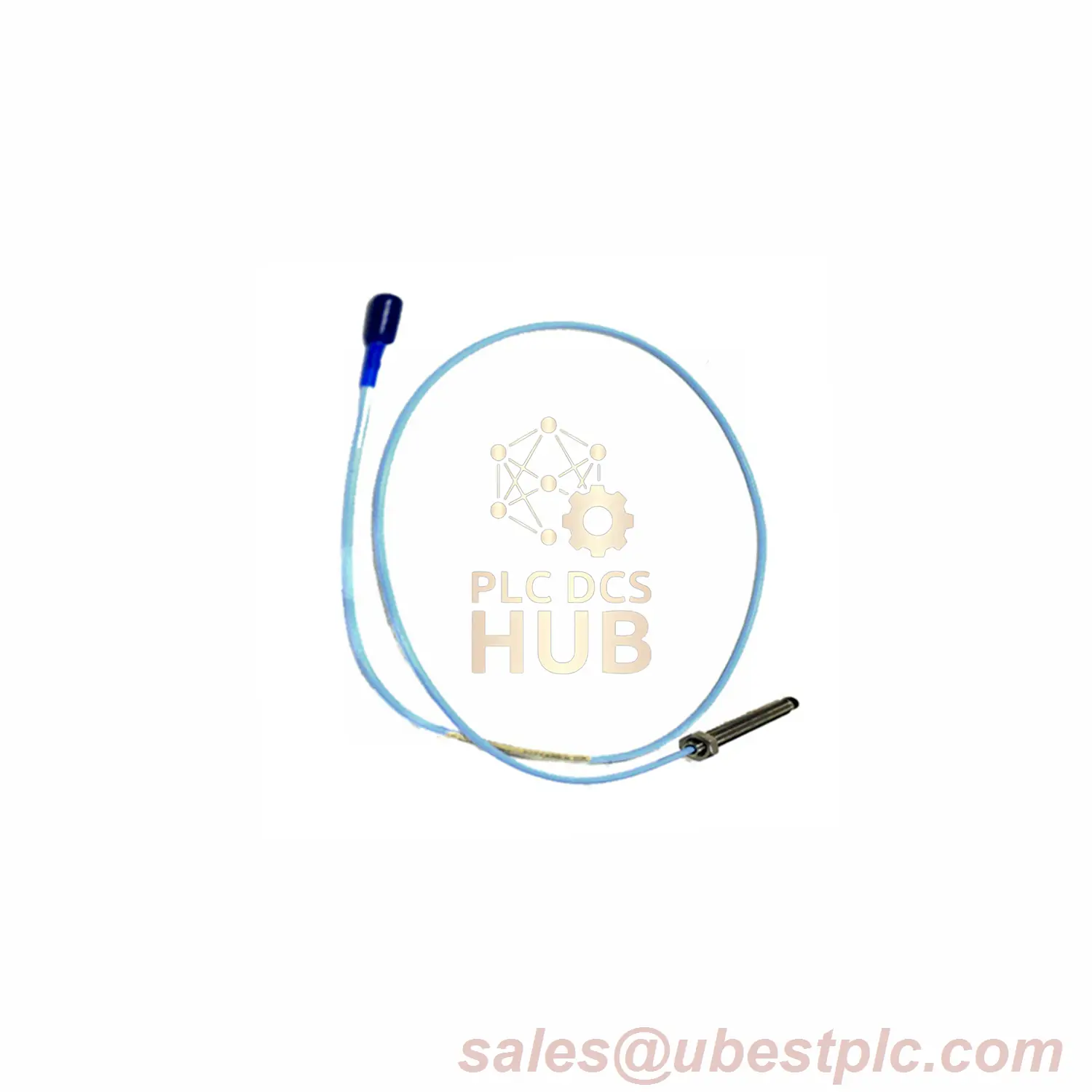

Bently Nevada 3300 XL 25mm Probe (Model: 330851-02-000-080-50-01-00) is a heavy-duty sensor for extreme industrial use. Made in the USA, it features an 80mm case, 5.0m armored cable, and works in high-heat environments up to 250°C.
Key Features for 330851-02-000-080-50-01-00
- Brand: Bently Nevada
- Model Code: 02-000-080-50-01-00
- 02: M30x2 Threaded Case
- 000: 0″ Unthreaded Section
- 080: 80mm Case Length
- 50: 5.0m Cable
- 01: SST Armor Added
- 00: No Agency Approvals
- Resistance: 7.5Ω ±0.8 (5.0m cable)
- Temperature Range:
- Normal Use: -35°C to +200°C
- Short-Term: +250°C (24h max)
- Weight: 330g (with armor)
- Cable: 75Ω Triaxial, PFA Insulation (1m/5m/9m options)
Installation Tips
- Max Torque: 163 N·m (120 ft·lb)
- Safe Torque: 68 N·m (50 ft·lb)
- Durable Materials:
- Case: Stainless Steel (AISI 304)
- Tip: PEEK (Heat-Resistant)
Certifications
- FCC Part 15, EMC EN 61000-6-2/6-4
- RoHS, ABS Maritime Standards
- ATEX/IECEx: AEx/Ex ia IIC (Zone 0) & AEx/Ex ec (Zone 2)
Real-World Uses
- Steel Mills: Monitor furnace rollers with 5.0m cable for flexible placement.
- Water Treatment: Resist corrosion in humid, high-vibration pumps.
- Aerospace Testing: Survive extreme heat in engine test bays.
Package & Support
- Includes: Probe, 5.0m Armored Cable, Manual
- Warranty: 1 Year (Manufacturer defects)
Need Help? Contact sales@ubestplc.com for quotes or technical support..
