Description
Product Overview

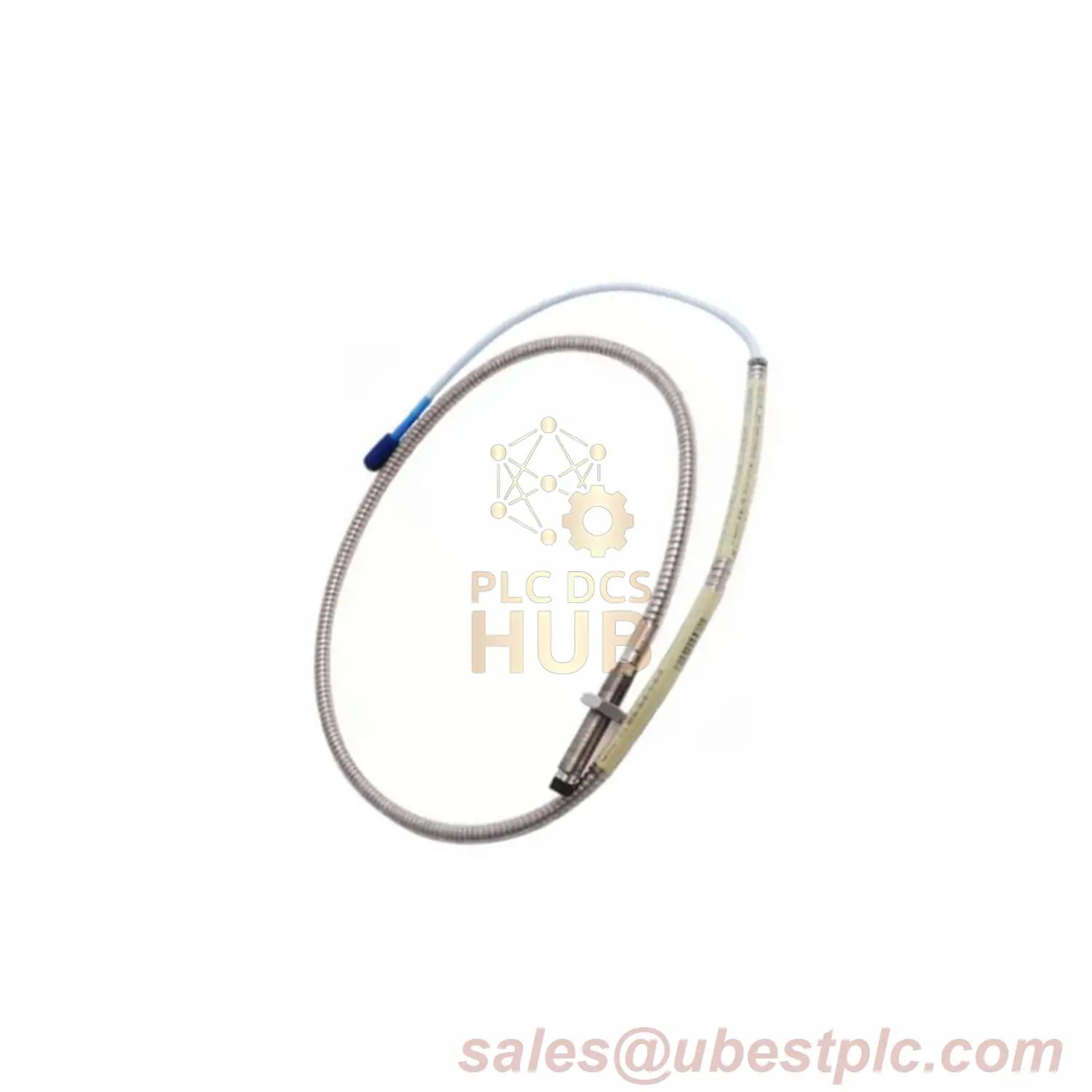

The Bently Nevada 3300 XL 25mm Proximity Probe (Model: 330851-02-000-040-50-00-00) features a 40mm case and 5.0m cable for flexible industrial use. No armor or special approvals (Option 00). Built in the USA.
Technical Specifications for 330851-02-000-040-50-00-00
- Full Product Code Breakdown:
- 330851-02 = M30x2 Threaded Case
- 000 = 0in Unthreaded Section
- 040 = 40mm Overall Case Length
- 50 = 5.0m Cable (16.4 ft)
- 00 = No Armor
- 00 = No Agency Approvals
- Electrical Data:
- Resistance: 7.5Ω ±0.8 (5m cable)
- Signal Type: 75Ω Triaxial
- Mechanical Data:
- Case Material: AISI 304 Stainless Steel
- Tip Material: PEEK (Heat-Resistant)
- Weight: 230g (8.1 oz) base model
- Temperature Limits:
- Standard Use: -35°C to +200°C
- 24-Hour Peak: +250°C (482°F)
Installation & Compatibility
- Max Torque: 163 N·m (120 ft·lb)
- Recommended Torque: 68 N·m (50 ft·lb)
- Fits 7200 25mm/35mm and DE Integral systems
Certifications
- FCC Part 15 Compliant
- EMC, RoHS, ABS Maritime
- No ATEX/IECEx certification (Option 00)
Real-World Applications
- Mining Equipment: Monitors conveyor belt rollers in dusty conditions.
- Wind Turbines: Tracks main shaft vibration during high-speed operation.
- Industrial Compressors: Detects bearing wear in high-pressure systems.
Package Contents
- 1x Probe (40mm case, 5m cable)
- 1-Year Manufacturer Warranty
