Description
Industrial Monitoring Device

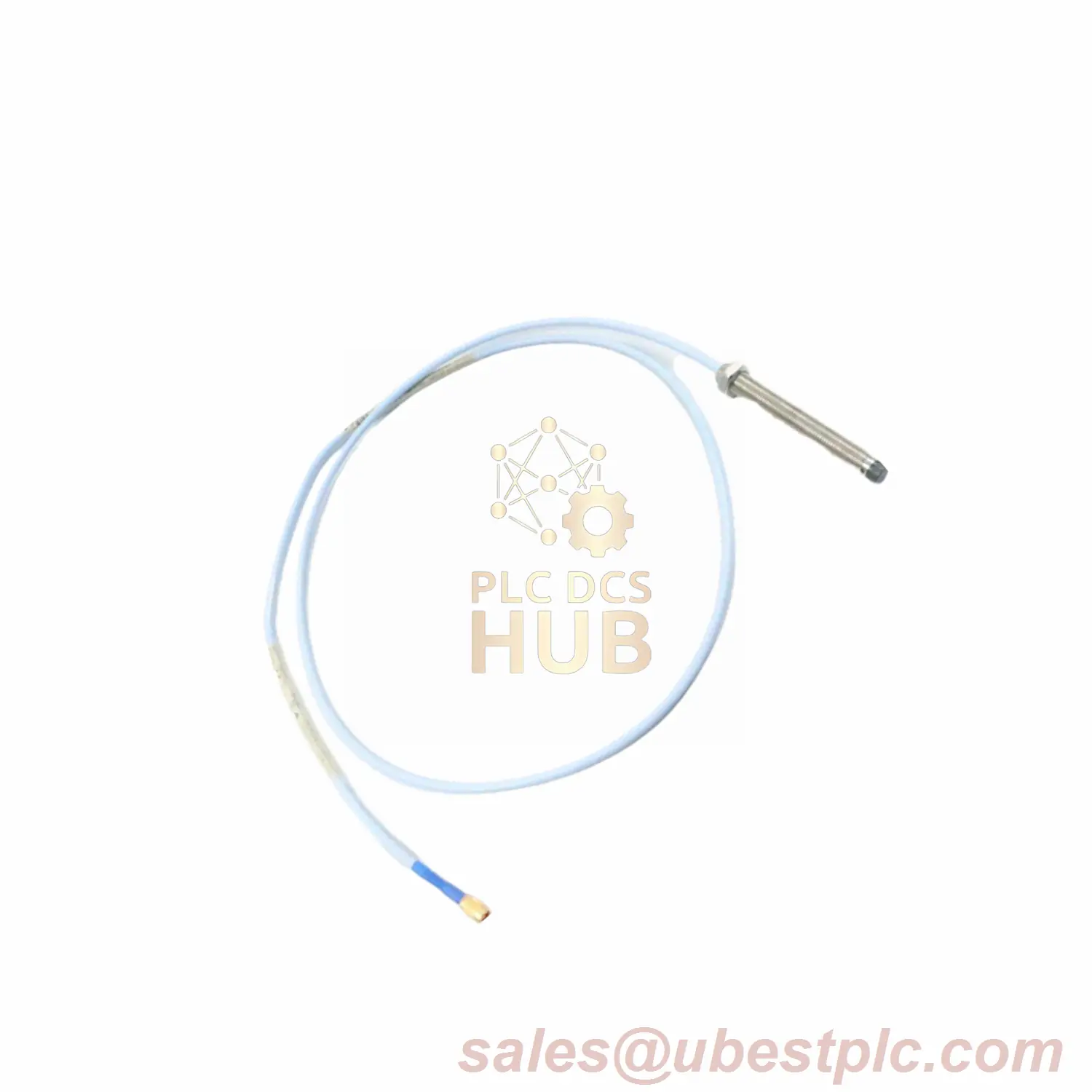

Bently Nevada 3300 XL Probe
Model: 330851-02-000-040-50-00-CN
40mm Case • China-Spec Approvals • 5m Cable
Full Product Code Details for 330851-02-000-040-50-00-CN
- 02 = M30x2 Thread
- 000 = 0in Unthreaded
- 040 = 40mm Case
- 50 = 5.0m Cable
- 00 = No Armor
- CN = China Certifications
Key Specifications
▷ Electrical
• 7.5Ω ±0.8 Resistance
• 75Ω Triaxial Signal
• PFA Cable Insulation
▷ Mechanical
• Weight: 230g (8.1 oz)
• Max Torque: 163 N·m
• Case: AISI 304 SST
China Certifications (CN)
- CCC (China Compulsory Certification)
- GB/T 3836-2010 Explosive Atmosphere
- RoHS China (HJ/T 367-2007)
Industrial Uses
Chemical ReactorsMonitors agitator shafts in pesticide plants
Power TransformersTracks cooling fan vibrations in substations
Temperature Limits
| Condition | Normal | 24h Peak |
|---|---|---|
| Operation | -35°C to +200°C | +250°C |
Package Contents
- 1x Probe (40mm case)
- 5.0m FluidLoc® Cable
- CCC/GB Compliance Docs
- 2-Year China Warranty
