Description
Product Overview

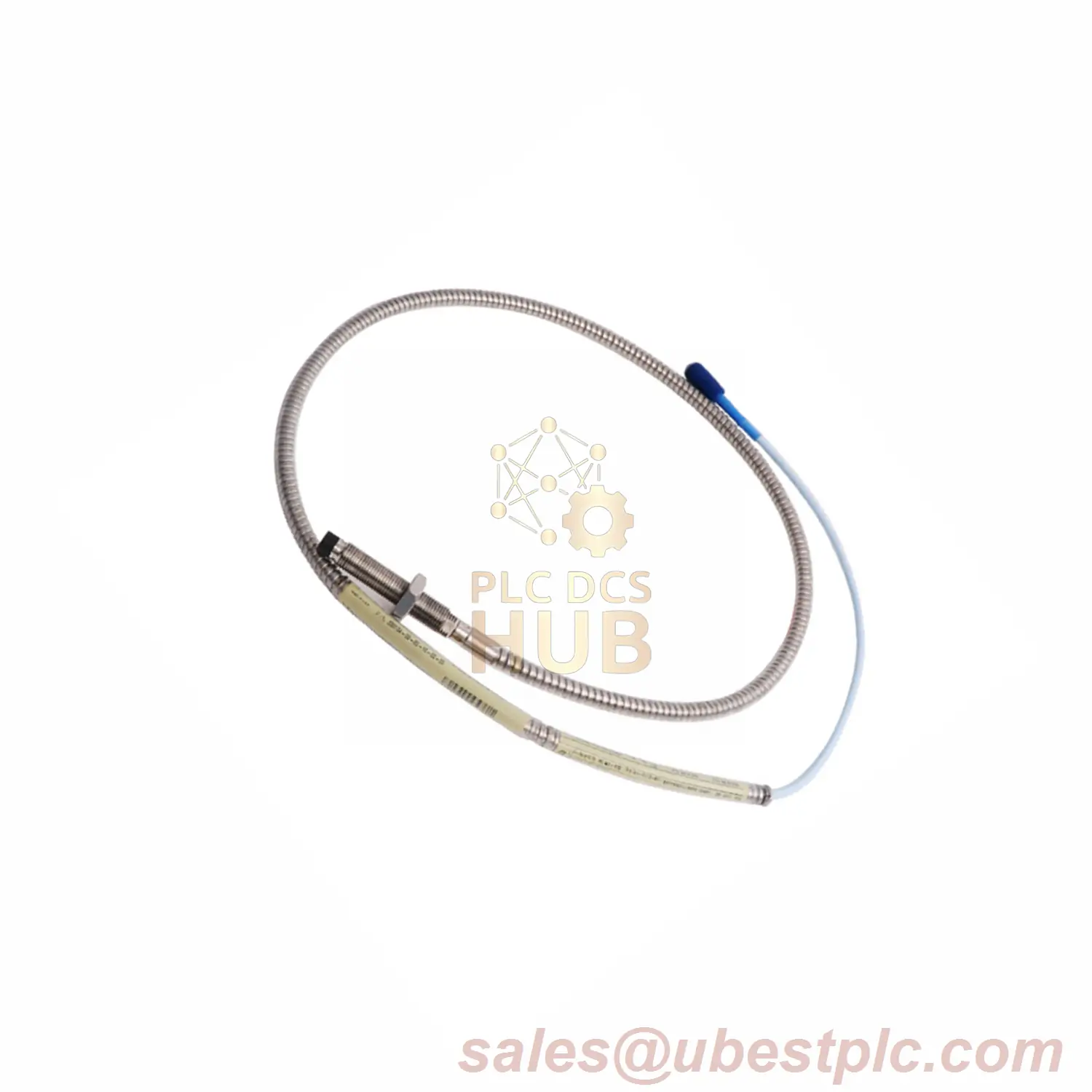

Bently Nevada 3300 XL Probe
Model: 330851-02-000-080-50-00-CN
80mm Case • 5m Cable • Country-Specific Approval
Full Product Code Breakdown
| 330851- | Base Model |
| 02 | M30x2 Threaded Case |
| 000 | 0in Unthreaded Length |
| 080 | 80mm Case Length |
| 50 | 5.0m Cable (16.4 ft) |
| 00 | No Armor |
| CN | Country-Specific Certifications |
Technical Specifications for 330851-02-000-080-50-00-CN
▸ Electrical
7.5Ω ±0.8 Resistance (5m)
75Ω Triaxial Signal
PFA-Insulated Cable
▸ Mechanical
Weight: 230g (8.1 oz)
Max Torque: 163 N·m
Case Material: AISI 304 SST
▸ Environmental
Temp Range: -35°C to +200°C
24h Peak: +250°C
Tip Material: PEEK
Certifications (CN Code)
- China Compulsory Certification (CCC)
- GB/T 3836 Explosive Atmosphere Compliance
- FCC/EMC/RoHS Global Standards
Industrial Applications
Steel ManufacturingMonitors continuous casting rollers at 180°C
Waste IncinerationOperates in boiler flue gas systems (250°C peak)
Temperature Compliance
| Classification | EPL Ga/Gc Range | EPL Dc Limit |
|---|---|---|
| T1 | -55°C to +232°C | T280°C @ -55°C |
| T2 | -55°C to +177°C | T225°C @ -55°C |
Package Contents
- 1x Probe (80mm case)
- 5.0m FluidLoc® Cable
- CN-Specific Compliance Documents
- 1-Year Limited Warranty
