Description
Product Overview

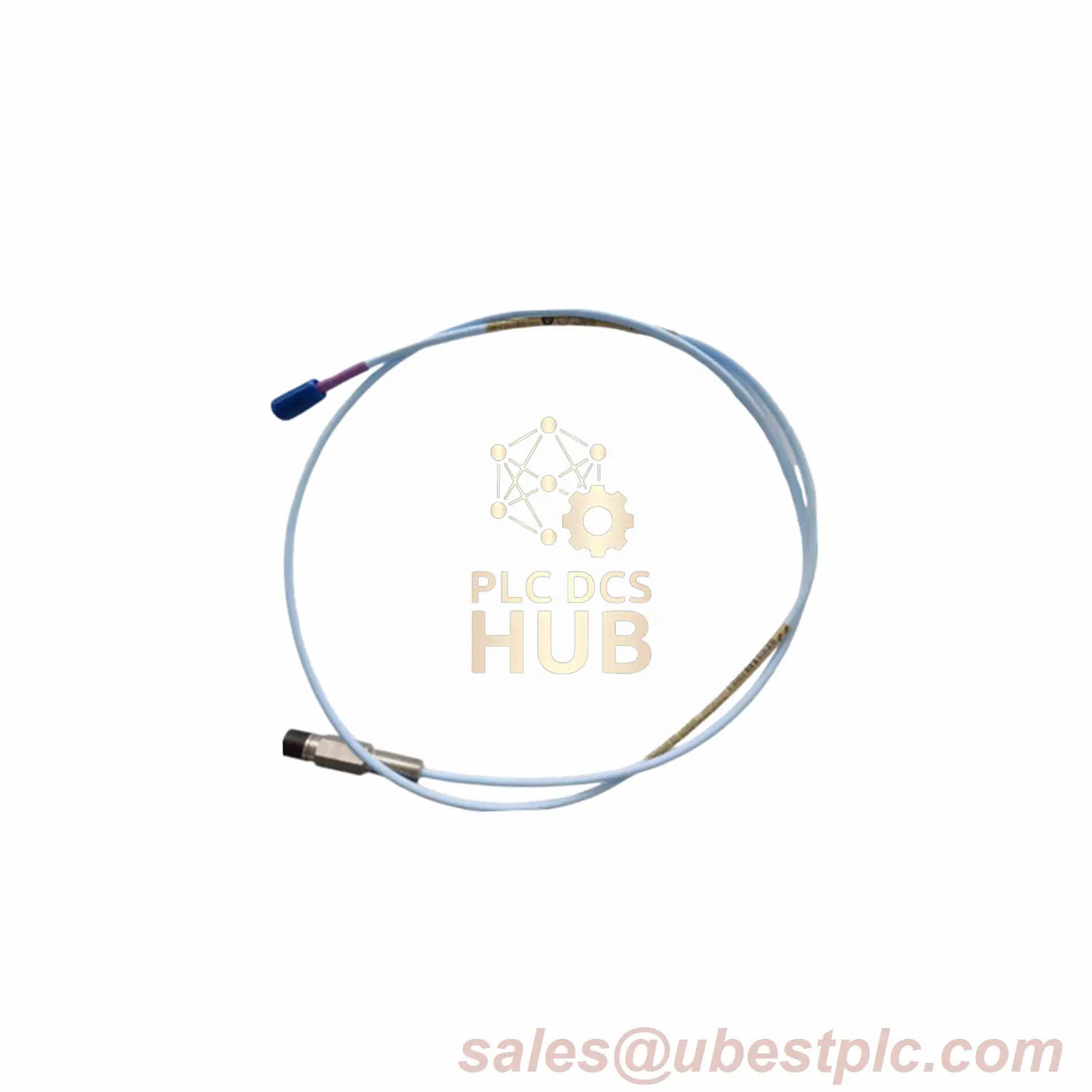

The Bently Nevada 3300 XL 25 mm Probe (Model: 330851-02-000-060-90-00-00) is a long-range vibration sensor with a 60mm case and 9m cable. Built for extreme heat and steam, it replaces older 25mm/35mm probes in tough industrial settings.
Key Specifications
- Part Number: 330851-02-000-060-90-00-00
- Case Design:
- Thread: M30x2 (02)
- Length: 60mm (060)
- Unthreaded: 0 inches (000)
- Cable:
- Length: 9.0 meters (90)
- Type: 75Ω triaxial, PFA insulation
- Performance:
- Resistance: 8.8 Ω ±1.1
- Temperature: -35°C to +200°C (250°C max for 24h)
- Weight: 230 g (no armor)
Installation Guide
- Torque: Tighten to 68 N•m (50 ft•lb)
- Compatible With: 7200 25mm/35mm systems
Certifications
- ATEX/IECEx Zone 0/1/2 (AEx/Ex ia IIC T1-T5)
- FCC Part 15, EN 61000-6-2/4
- ABS Maritime, RoHS
Industry Applications
- Shipbuilding: Monitors diesel engine vibrations in marine propulsion systems.
- Power Generation: Tracks gas turbine rotor alignment in combined-cycle plants.
- Metal Casting: Detects furnace conveyor belt wear in high-temperature foundries.
Package Contents
- 60mm stainless steel probe
- 9.0m FluidLoc® cable
Warranty: 12-month coverage from delivery.
Contact: Email sales@ubestplc.com for bulk orders.
