Description
Product Description

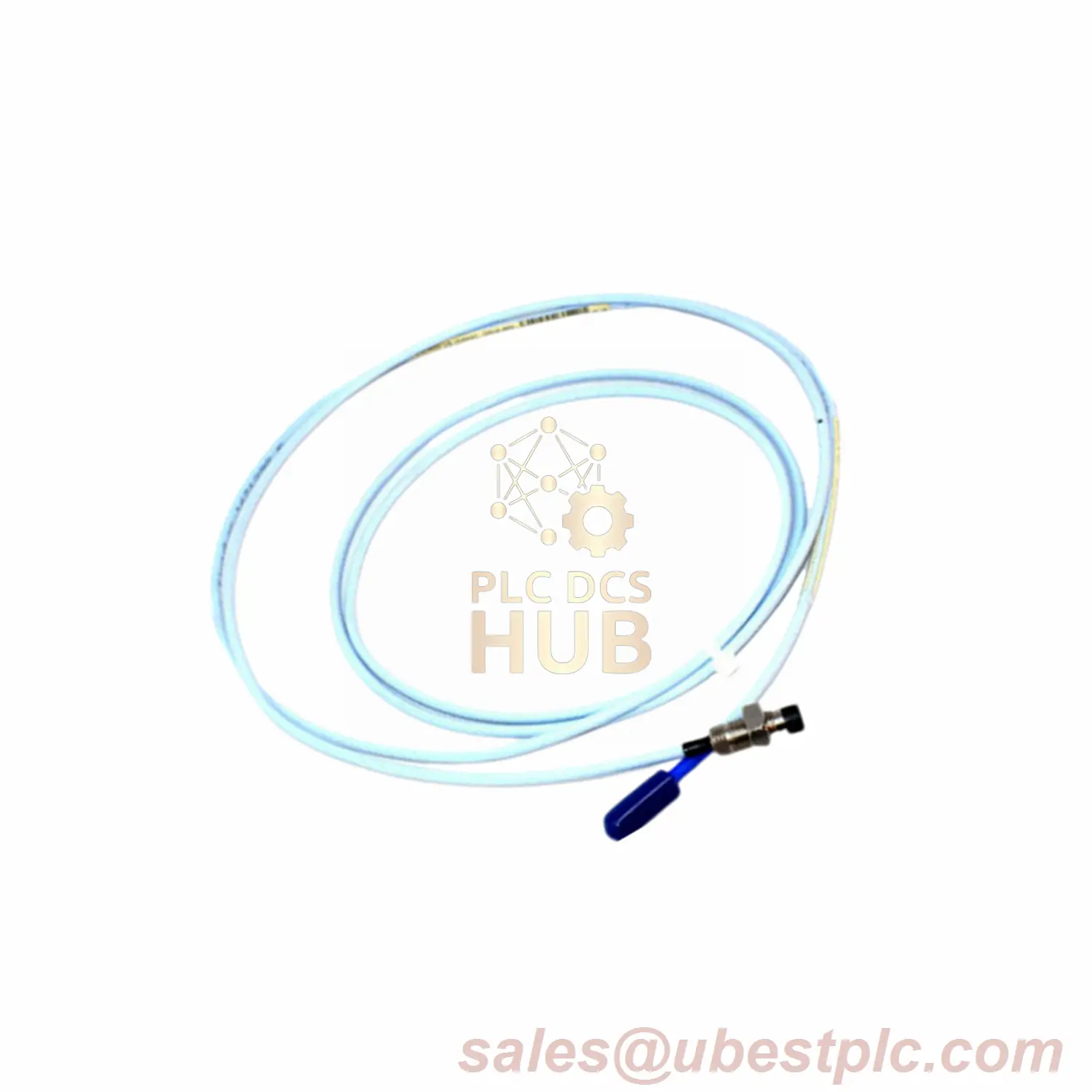

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-030-90-00-00) is a rugged sensor designed for harsh environments like steam turbines. It replaces legacy 7200-series probes and operates reliably in temperatures up to 200°C (392°F), with short-term tolerance to 250°C (482°F). Features include a PEEK tip, stainless steel case, and 9-meter PFA-insulated cable.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330851-02-000-030-90-00-00 |
| Range | 25 mm |
| Accuracy | Resistance: 8.8 ±1.1 Ω (9m cable) |
| Output | 75 Ω triaxial signal |
| Operating Temp | -35°C to +200°C |
| Cable Length | 9.0 meters (29.5 ft) |
| Weight | 230 g (8.1 oz) without armor |
Installation Guide
- Torque: Max 68 N•m (50 ft•lb) for threaded cases.
- Material: AISI 304 stainless steel case, PEEK tip.
Package & Warranty
- Includes probe, documentation.
- 1-year warranty.
Application Example
Steam Turbine Monitoring
