Bently Nevada | ATEX-Certified Industrial Vibration Probe 330851-02-000-050-50-00-CN

Description

Core Features

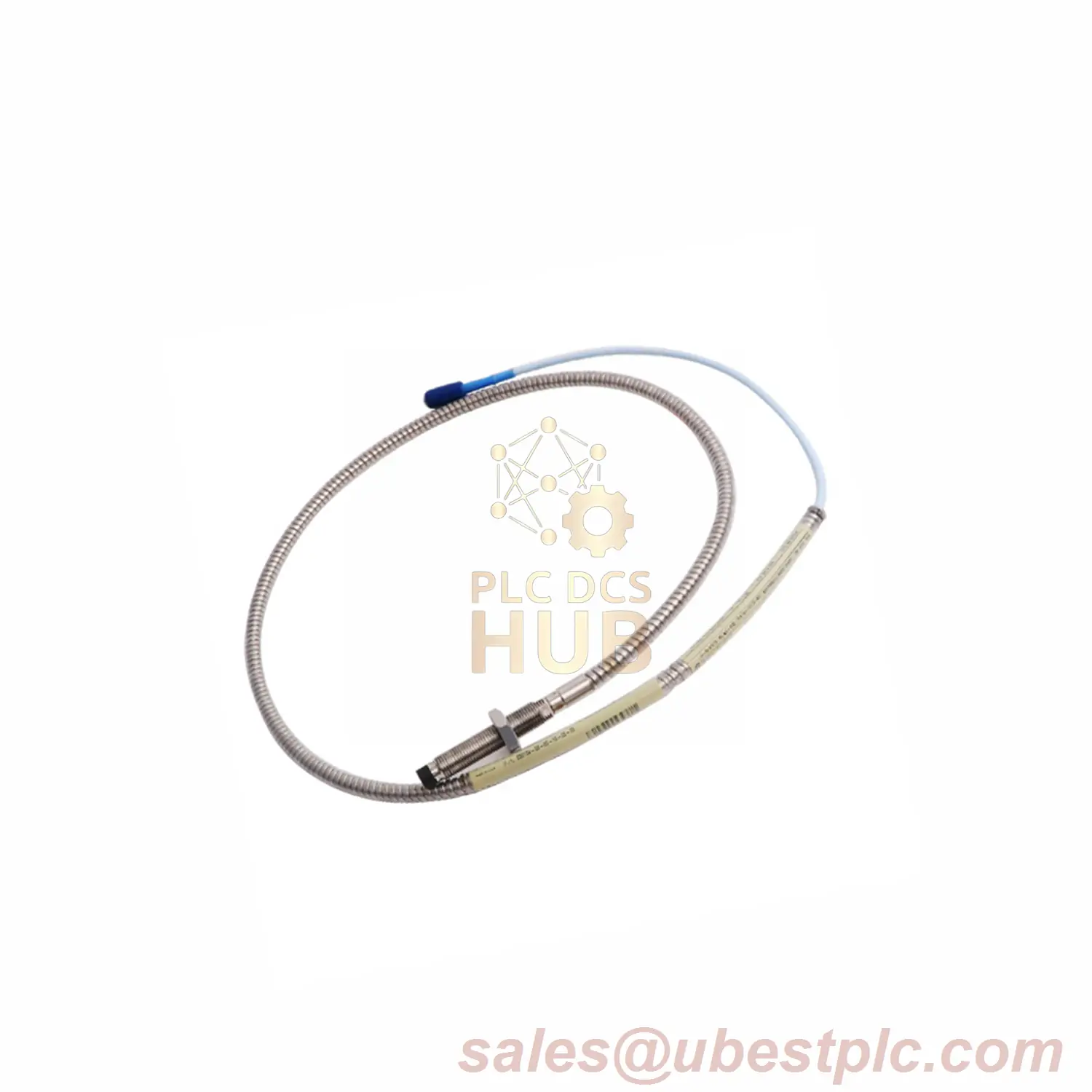

The Bently Nevada 3300 XL 25 mm Probe (Model: 330851-02-000-050-50-00-CN) is a short-case sensor ideal for space-limited installations. Built with a 50mm stainless steel body and 5m cable, it withstands steam, heat, and harsh industrial conditions.

Detailed Specifications for 330851-02-000-050-50-00-CN

• Manufacturer: Bently Nevada
• Part Number Breakdown:
  • 330851: Standard model ID
  • 02: M30x2 threaded design
  • 000: Zero unthreaded length
  • 050: Compact 50mm housing
  • 50: 5-meter cable (16.4 ft)
  • 00: Unarmored version
  • CN: Regional compliance
• Electrical: 7.5 Ω resistance (±0.8 Ω tolerance)
• Heat Resistance:
  • Continuous: -35°C to +200°C
  • Peak: 250°C (24-hour limit)
• Materials: PEEK sensor tip + 304 SST case
• Cable: 75Ω triaxial, 5.0m length

Installation Tips

• Tighten to 68 N•m (50 ft•lb) – do not exceed 163 N•m
• Direct replacement for 7200 25mm/35mm probes

Industry Uses

• Pharmaceuticals: Monitors agitator shafts in cleanroom reactors.
• Aviation: Measures turbine blade vibrations in jet engine testing.
• Plastic Injection Molding: Tracks screw extruder alignment under high pressure.

What’s in the Box

• 50mm proximity probe
• 5.0-meter FluidLoc® cable

Warranty: 1 years against defects.

Need Help? Contact sales@ubestplc.com for specs or bulk orders.
