Description
Product Summary

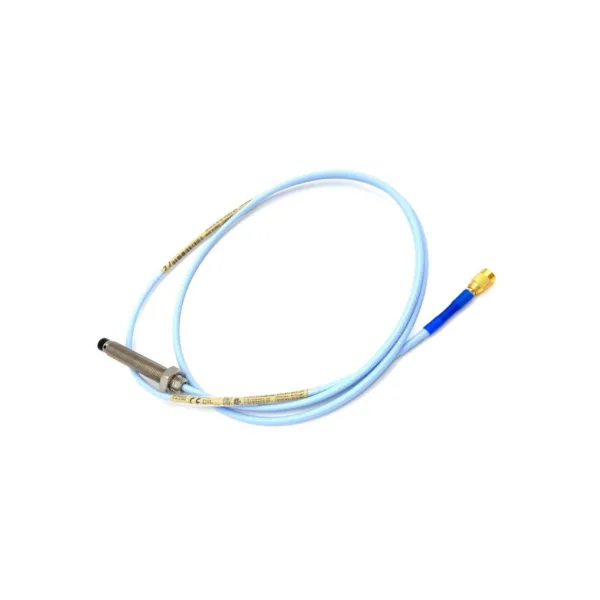

The Bently Nevada 3300 XL 25 mm Probe (Model: 330851-02-000-040-90-00-00) features a 40mm case and 9.0m cable for long-range vibration monitoring in extreme heat and steam environments. Made in the USA.
Technical Specifications
| Part Number | 330851-02-000-040-90-00-00 |
| Case Thread | M30x2 (02) |
| Case Length | 40mm (040) |
| Cable | 9.0 meters (90), 75Ω triaxial |
| Resistance | 8.8 Ω ±1.1 |
| Temperature | -35°C to +200°C (+250°C max 24h) |
| Weight | 230 g (no armor) |
Installation
| Max Torque | 163 N•m |
| Recommended Torque | 68 N•m (50 ft•lb) |
| Compatibility | Replaces 7200 25mm/35mm probes |
Certifications
| EMC | EN 61000-6-2/6-4 |
| Safety | ATEX Zone 0/1/2 (AEx/Ex ia IIC T1-T5) |
| Maritime | ABS 2009 Certified |
Real-World Uses
| Hydroelectric Plants | Monitors turbine shaft vibration in high-humidity dam environments. |
| Pulp & Paper Mills | Tracks roller alignment in steam-heavy paper drying systems. |
| Petrochemical Refineries | Detects pump bearing wear in flare gas recovery units. |
Package Includes
| Probe Unit | 1 x 40mm stainless steel sensor |
| Cable | 1 x 9.0m PFA-insulated triaxial |
Warranty: 12 months from shipment date.
Contact: Email sales@ubestplc.com for technical queries.
