Product Description

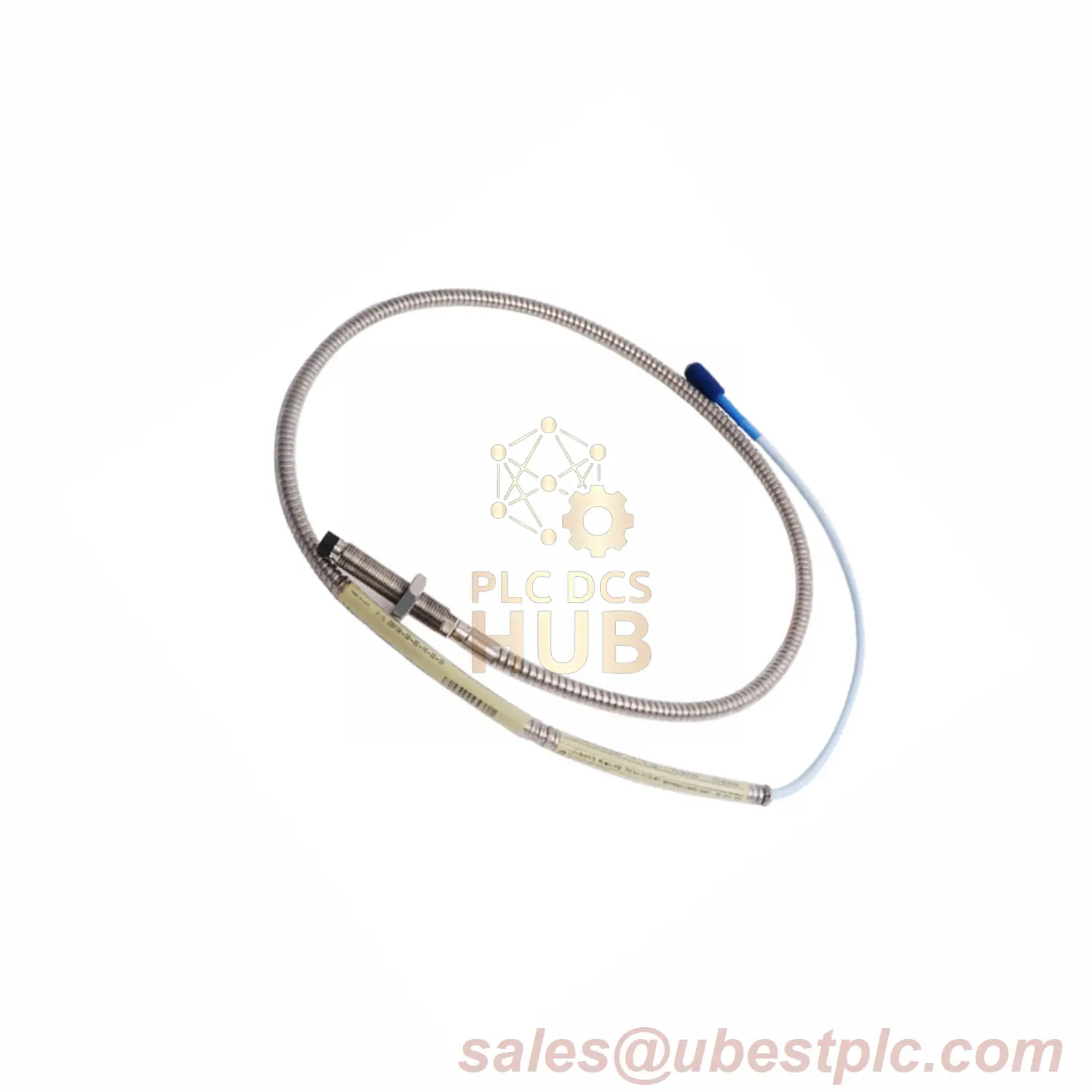

The Bently Nevada 3300 XL 25 mm Proximity Probe (Model: 330851-02-000-070-50-00-05) is a high-performance sensor designed for harsh environments like steam turbines. It replaces older 7200 series probes and features stainless steel construction, PEEK tip, and high-temperature resistance up to 200°C (392°F). Ideal for vibration monitoring, it ensures accuracy in extreme conditions.
Technical Data for 330851-02-000-070-50-00-05
- Brand: Bently Nevada
- Model: 3300 XL 25 mm Proximity Probe
- Full Suffix: 02-000-070-50-00-05 (M30x2 thread, 70mm case, 5m cable, no armor)
- Range: 25 mm sensing distance
- Accuracy: ±0.8 ohms resistance tolerance
- Output Signal: 75 Ω triaxial cable (PFA insulated)
- Operating Temp: -35°C to +200°C (short-term: 250°C for ≤24h)
- Probe Resistance: 7.5 ±0.8 ohms (5m length)
- Weight: 230g (8.1 oz) without armor
Installation Guide
- Torque: 68 N•m (50 ft•lb) recommended
- Compatible with M30x2 threaded mounts
Certifications
- FCC Part 15, EMC Directive 2014/30/EU
- RoHS, ABS Maritime
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0)
Packaging & Warranty
- Includes probe, 5m PFA cable, documentation
- 1-year manufacturer warranty
Applications
Used in steam turbine DE environments, high-temperature machinery, and industrial vibration monitoring systems.
