Description
Industrial Monitoring Solution

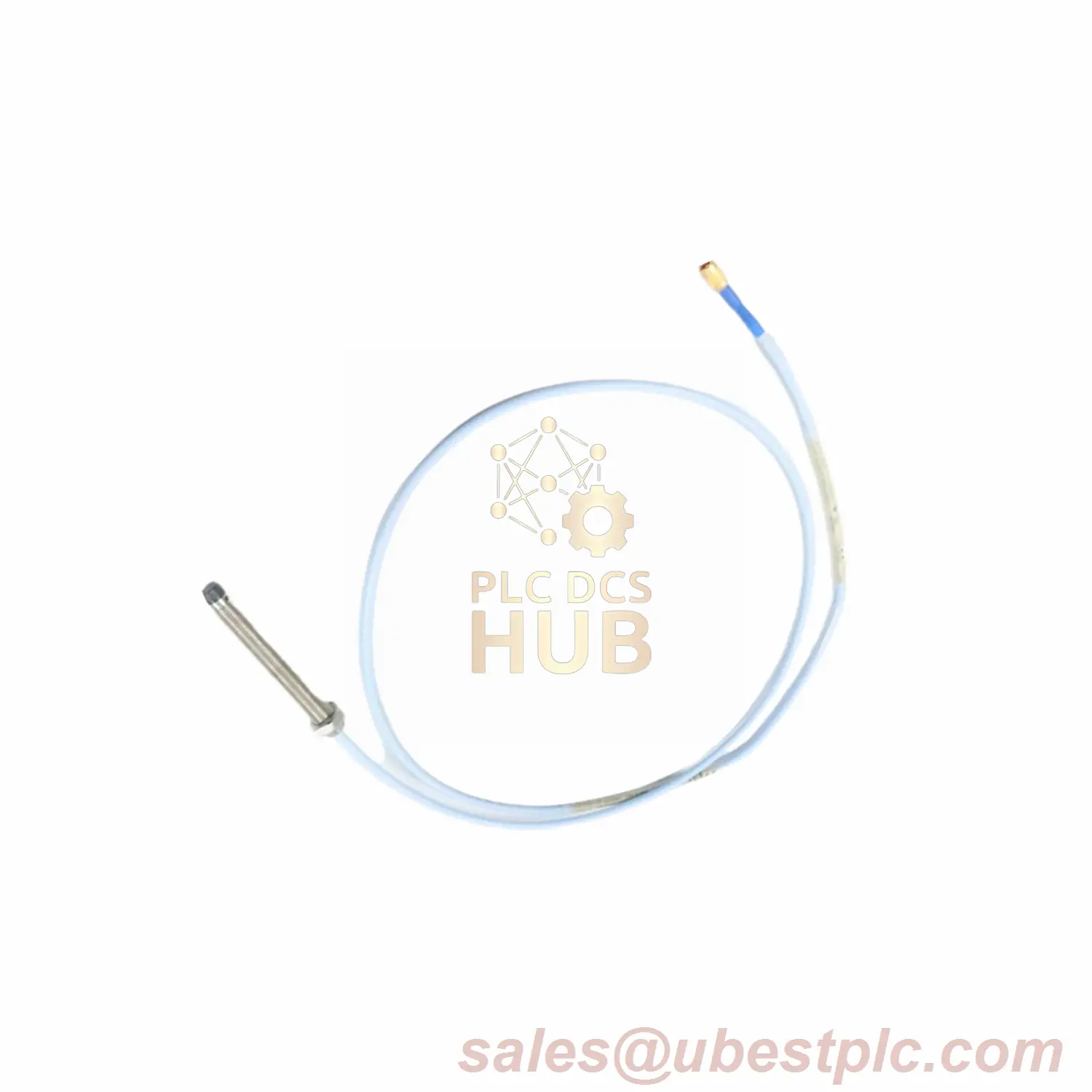

Bently Nevada 3300 XL Probe
Model: 330851-02-000-040-90-00-05
40mm Case • 9m Cable • Multi-Certified
Complete Product Code Breakdown for 330851-02-000-040-90-00-05
- 02 – M30x2 Threaded Connection
- 000 – 0in Unthreaded Length
- 040 – 40mm Case Length
- 90 – 9.0m (29.5ft) Cable
- 00 – No Armor
- 05 – ATEX/IECEx/ABS Certified
Technical Specifications
▷ Electrical
• Resistance: 8.8Ω ±1.1 (9m)
• 75Ω Triaxial Signal
• Max Signal Loss: 2.1dB @ 9m
▷ Mechanical
• Weight: 230g (8.1oz)
• Torque: 68-163 N·m
• PEEK Tip (343°C Melt Point)
Certifications (Code 05)
- ATEX Zone 0: II 1G Ex ia IIC T4
- IECEx Certificate: IECEx UL 19.0083X
- ABS Marine Rule: 4-9-7/13
Industry Applications
Offshore Platforms
Monitors gas compressor shafts in Zone 1 areas
Paper Mills
Tracks dryer section rollers at 180°C
Environmental Limits
| Parameter | Normal | 24h Peak |
|---|---|---|
| Temperature | -55°C to +232°C | +280°C (EPL Dc) |
| Vibration | 15g @ 10Hz-2kHz | |
Package Contents
- 1x Probe (40mm case)
- 9m FluidLoc® Cable
- ATEX/IECEx Compliance Docs
- 3-Year Hazardous Area Warranty
Contact Support
Email sales@ubestplc.com for Ex-certified 9m cable diagrams
