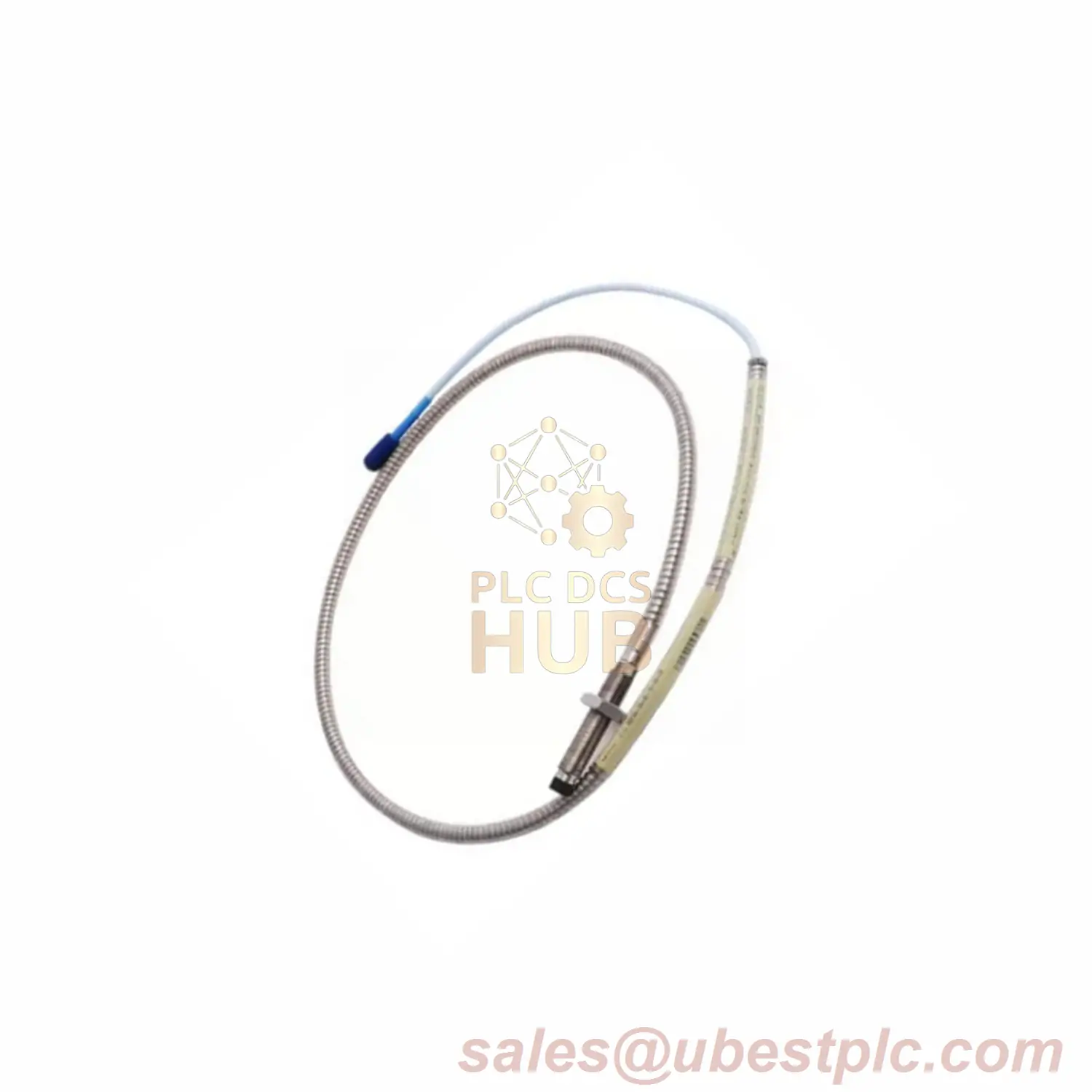

25 mm Probe – Bently Nevada 330851-02-000-050-90-00-00

Description

Key Features for 330851-02-000-050-90-00-00

• ⚡ 9m Long Cable (Code 90)
• ⚡ 50mm Compact Case (Code 050)
• ⚡ Works at -35°C to +200°C
• ⚡ 8.8Ω ±1.1 Resistance Accuracy

Full Model Code

1. 330851 : Base Model
2. 02 : M30x2 Thread
3. 000 : 0in Unthreaded
4. 050 : 50mm Case
5. 90 : 9m Cable
6. 00 : No Armor
7. 00 : Standard Approvals

Technical Data

• ???? Measurement Range : 25mm
• ???? Peak Temperature : 250°C (24hr max)
• ???? Weight : 230g (8.1oz)
• ???? Cable Resistance : 75Ω Triaxial

Installation Notes

• ???? Max Torque : 163 N·m
• ???? Safe Torque : 68 N·m (50 ft·lb)
• ???? Replaces : 7200 25mm Probes

Certifications

• ✅ FCC Part 15
• ✅ EN 61000 EMC
• ✅ RoHS Compliant
• ✅ ABS Marine

Real-World Use

Monitors paper mill drying cylinders detecting roller vibrations in steam-heavy environments (180°C+).

Package Includes

• ???? 1x Probe (50mm Case) 330851-02-000-050-90-00-00
• ???? 9m Triaxial Cable
• ???? 1-Year Warranty
