Description
Core Features for 330851-02-000-080-90-00-05
- ⚡ 9m Extended Cable (Code 90)
- ⚡ 80mm Industrial Case (Code 080)
- ⚡ Multi-Certified (Code 05)
- ⚡ 8.8Ω ±1.1 Resistance Accuracy
Complete Model Code Breakdown for 330851-02-000-080-90-00-05
| Code Segment | Description |
|---|---|
| 02 | M30x2 Thread |
| 000 | 0in Unthreaded |
| 080 | 80mm Case Length |
| 90 | 9.0m Cable |
| 00 | No Armor |
| 05 | ATEX/IECEx/ABS Certified |
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement Range | 25mm |
| Resistance (9m) | 8.8Ω ±1.1 |
| Temp Range | -35°C to +200°C (+250°C for 24hrs) |
| Cable Type | 75Ω Triaxial PFA |
| Weight | 230g (8.1oz) |
Installation Guide
- Max Torque: 163 N·m
- Recommended Torque: 68 N·m (50 ft·lb)
- Compatible With: 7200 25mm/35mm Systems
Certifications
- ATEX Zone 0/IECEx Ex ia IIC T4
- ABS 2009 Steel Vessel Rules
- FCC Part 15 & EN 61000 EMC
- RoHS 2011/65/EU Compliant
Industry Application
Monitors chemical distillation columns detecting pump vibrations in explosive atmospheres (+180°C) at petrochemical plants.
Package Includes

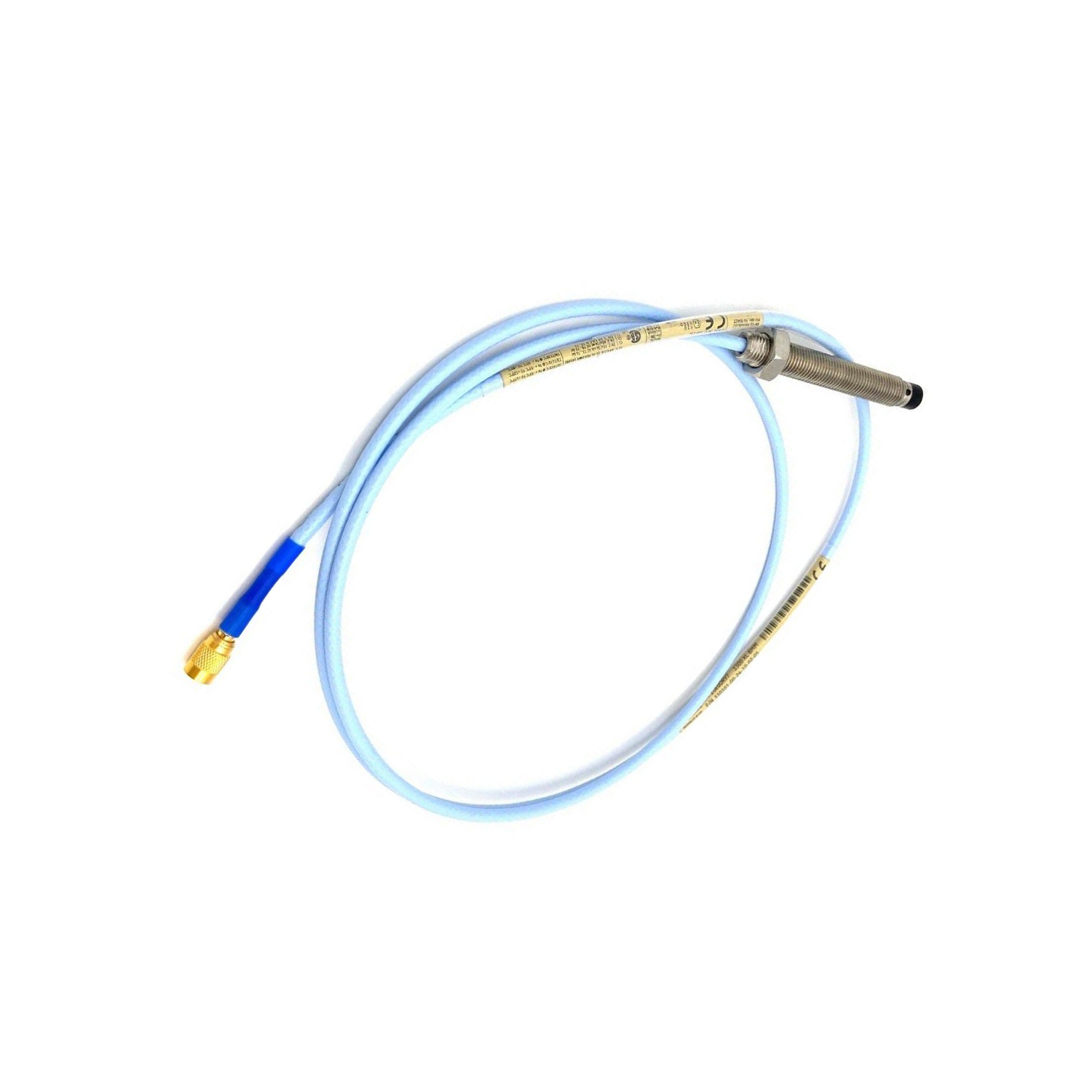

- 1x 80mm Probe with 9m Cable
- International Certificates
- 1-Year Global Warranty
