Description
Product Description

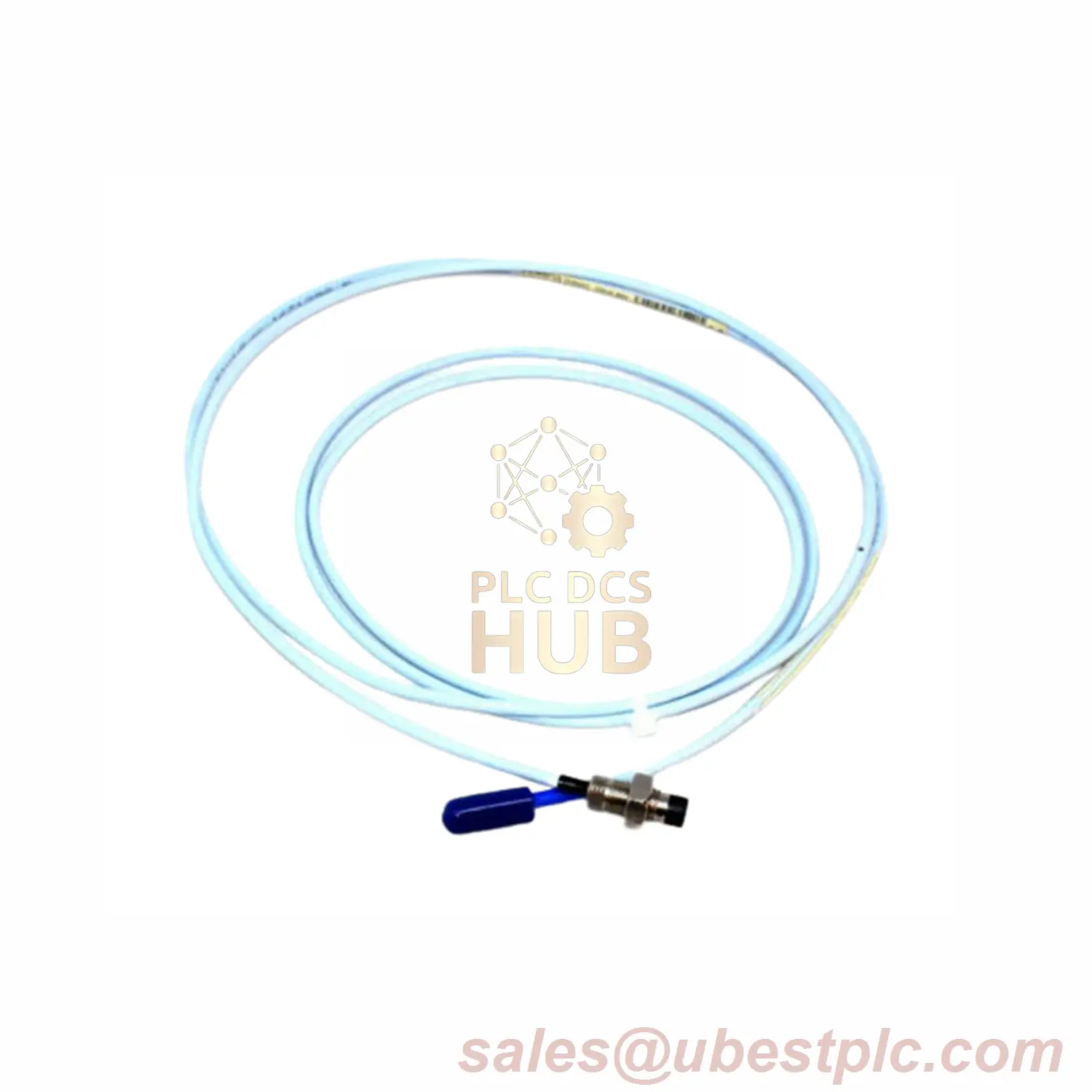

The Bently Nevada 3300 XL 25 mm Proximity Probe (P/N: 330851-02-000-230-50-01-00) is a heavy-duty sensor designed for harsh industrial environments like steam turbines. It replaces older 25 mm/35 mm probes and offers high-temperature resistance up to 200°C (392°F), with short-term tolerance up to 250°C (482°F). Features include an M30x2 threaded case, 5.0-meter SST-armored cable, and PEEK tip for durability.
Technical Data
| Parameter | Value |
|---|---|
| Brand | Bently Nevada |
| Model | 3300 XL 25 mm Proximity Probe Full Suffix: 330851-02-000-230-50-01-00 |
| Probe Resistance | 7.5 Ω ±0.8 (5.0m cable) |
| Operating Temperature | -35°C to +200°C (-31°F to +392°F) |
| Short-Term Temp | +250°C (482°F) for ≤24 hrs |
| Case Material | AISI 304 SST |
Installation Guide
- Torque Limit: 68 N•m (50 ft•lb)
- Weight: 330 g (11.6 oz) with armor
Compatibility
Replaces 7200 25 mm/35 mm probes and DE Integral systems (side/rear exit).
Certifications
- FCC Part 15
- EMC: EN 61000-6-2/4
- RoHS Directive 2011/65/EU
- ABS Maritime Certified
Package & Warranty
- 1x Probe, 1x Cable (5.0m)
- 12-month warranty
Applications
Used in steam turbines, compressors, and high-vibration machinery requiring accurate vibration monitoring under extreme conditions.
