Description

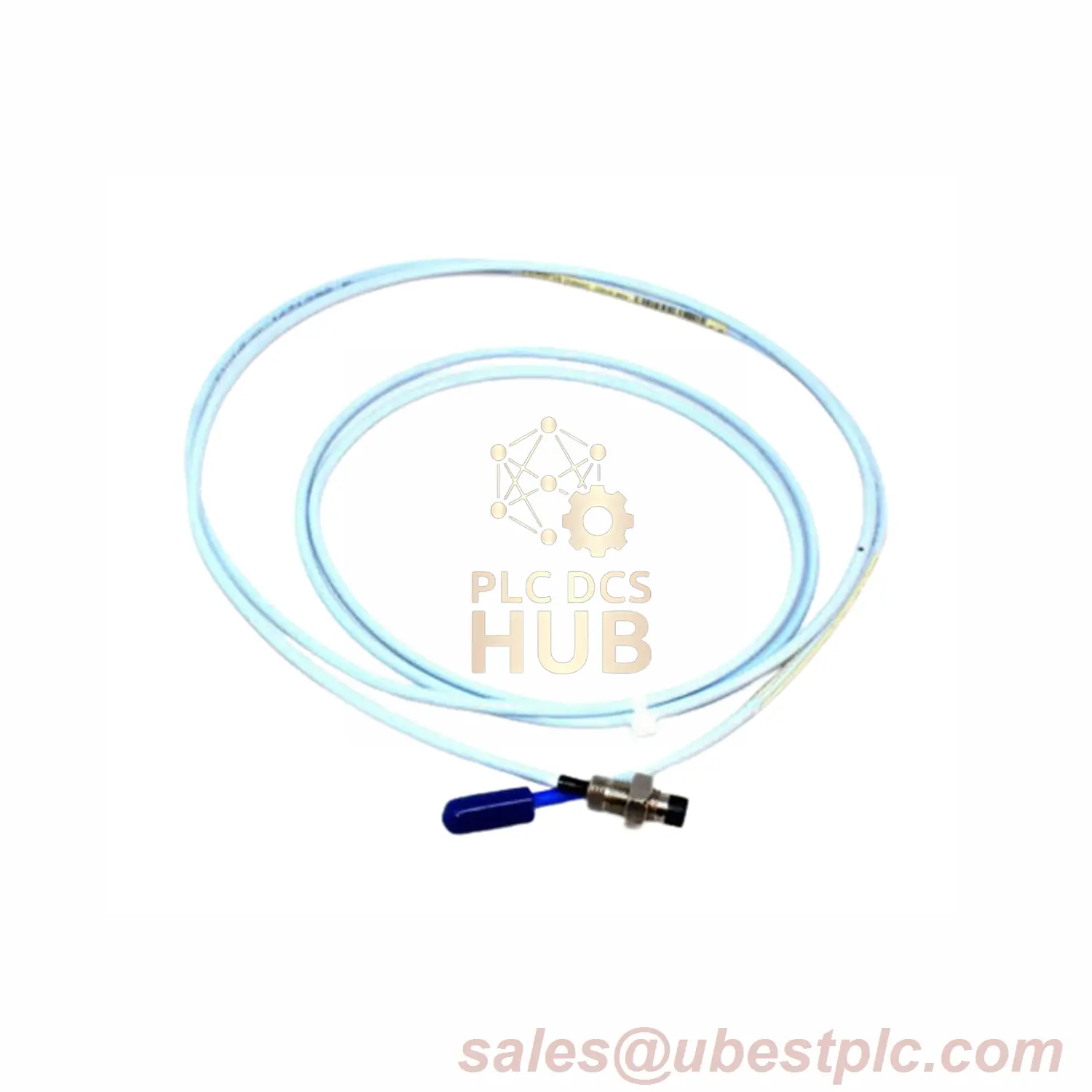

Key Features for 330851-02-000-066-90-00-05
- ???? 66mm Mid-Size Case (Code 066)
- ???? 9m Industrial Cable (Code 90)
- ???? Multi-Certified (Code 05)
- ???? 8.8Ω ±1.1 at 9m Length
Full Model Code Details for 330851-02-000-066-90-00-05
| Code | Description |
|---|---|
| 02 | M30x2 Threaded |
| 000 | 0in Unthreaded |
| 066 | 66mm Case |
| 90 | 9.0m Cable |
| 00 | No Armor |
| 05 | ATEX + IECEx + ABS |
Technical Specifications
| Parameter | Value |
|---|---|
| Resistance (9m) | 8.8Ω ±1.1 |
| Operating Temp | -35°C to +200°C |
| Peak Temp | 250°C (24hr max) |
| Cable Type | 75Ω Triaxial PFA |
| Weight | 230g (8.1oz) |
Installation
- ⚙️ Max Torque: 163 N·m (120 ft·lb)
- ⚙️ Safe Torque: 68 N·m (50 ft·lb)
- ⚙️ Compatibility: Replaces 7200 35mm Systems
Certifications
- ???? ATEX Zone 0/Zone 2
- ???? IECEx Ex ia IIC T4
- ???? ABS Marine Certified
- ???? FCC & EN 61000 EMC
Application Example
Monitors mining conveyor motors detecting bearing failures in high-dust environments (+170°C).
Package Includes
- ???? 1x Probe (66mm Case)
- ???? 9m PFA Cable
- ???? 1-Year Heavy-Duty Warranty
