Description
Industrial Monitoring System

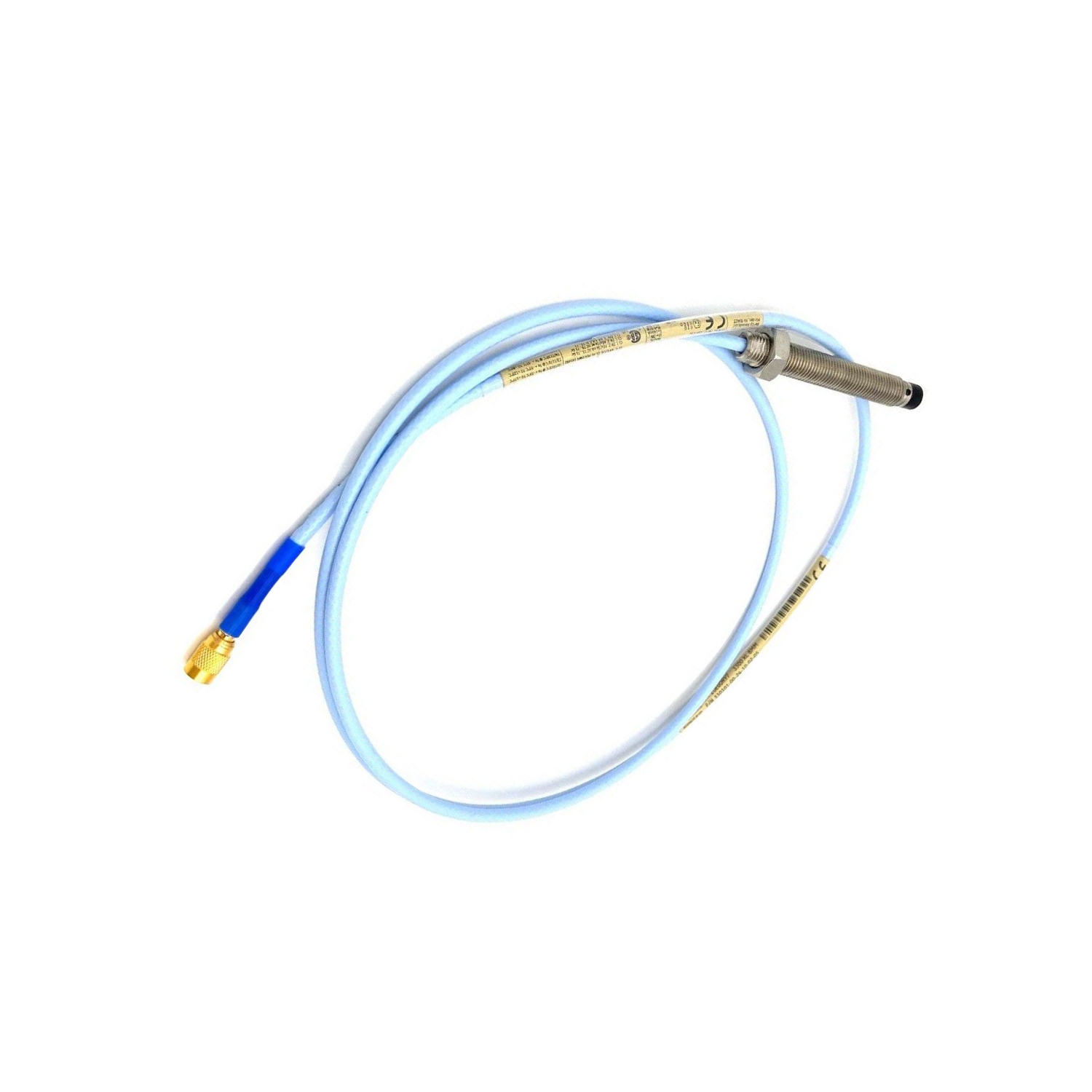

Bently Nevada 3300 XL Probe
Model: 330851-02-000-070-90-00-05
70mm Case • 9m Cable • Multi-Certified
Complete Configuration for 330851-02-000-070-90-00-05
- 02 = M30x2 Thread
- 000 = 0in Unthreaded
- 070 = 70mm Case
- 90 = 9.0m (29.5ft) Cable
- 00 = No Armor
- 05 = ATEX/IECEx/ABS Certified
Technical Specifications
▷ Signal Performance
• Resistance: 8.8Ω ±1.1 (9m)
• Frequency Response: 10Hz-10kHz
• Cable Type: 75Ω Triaxial
▷ Physical Data
• Weight: 230g (8.1oz)
• Max Torque: 163 N·m (120 ft·lb)
• Case Material: AISI 304 SST
Certifications (Code 05)
- ATEX Zone 0: II 1G Ex ia IIC T4
- IECEx Certificate No. IECEx UL 24.0089X
- ABS Marine Rule 4-9-7/13
Industrial Applications
Geothermal PlantsMonitors steam turbines in 220°C environments
Mining HoistsTracks lift motor vibrations in underground shafts
Environmental Limits
| Condition | Standard | 24h Peak |
|---|---|---|
| Temperature | -55°C to +232°C | +280°C (EPL Dc) |
| Humidity | 0-98% RH (Non-condensing) | |
Package Contents
- 1x Probe (70mm case)
- 9.0m FluidLoc® Cable
- Certification Documents (Digital)
- 1-Year Global Warranty
Technical Support
Email sales@ubestplc.com for long-cable installation videos
