Description
Key Features for 330851-02-000-230-50-01-CN
- ???? 230mm Long Case (Code 230)
- ???? 5m Armored Cable (Code 50)
- ???? China Certifications (Code CN)
- ???? 7.5Ω ±0.8 at 5m
Full Model Code for 330851-02-000-230-50-01-CN
| Code | Description |
|---|---|
| 02 | M30x2 Thread |
| 000 | 0in Unthreaded |
| 230 | 230mm Case |
| 50 | 5.0m Cable |
| 01 | SST Armor |
| CN | China Approvals |
Technical Data
| Parameter | Value |
|---|---|
| Range | 25mm |
| Resistance | 7.5Ω ±0.8 |
| Temperature | -35°C to +200°C (250°C for 24hrs) |
| Weight | 330g (11.6oz) |
| Torque Limit | 68 N·m (50 ft·lb) |
Installation
- ???? For deep mounting in heavy machinery
- ???? Compatible with 7200 DE systems
- ???? Use anti-vibration pads in high-shock areas
Certifications
- ???? China CCC (GB 3836-2010)
- ???? ATEX Zone 2 Certified
- ???? ABS Marine Type Approval
- ???? EN 61000 EMC Compliant
Industry Use
Monitors steel rolling mill stands detecting roller vibrations in 200°C+ high-pressure forming zones.
Package Contents

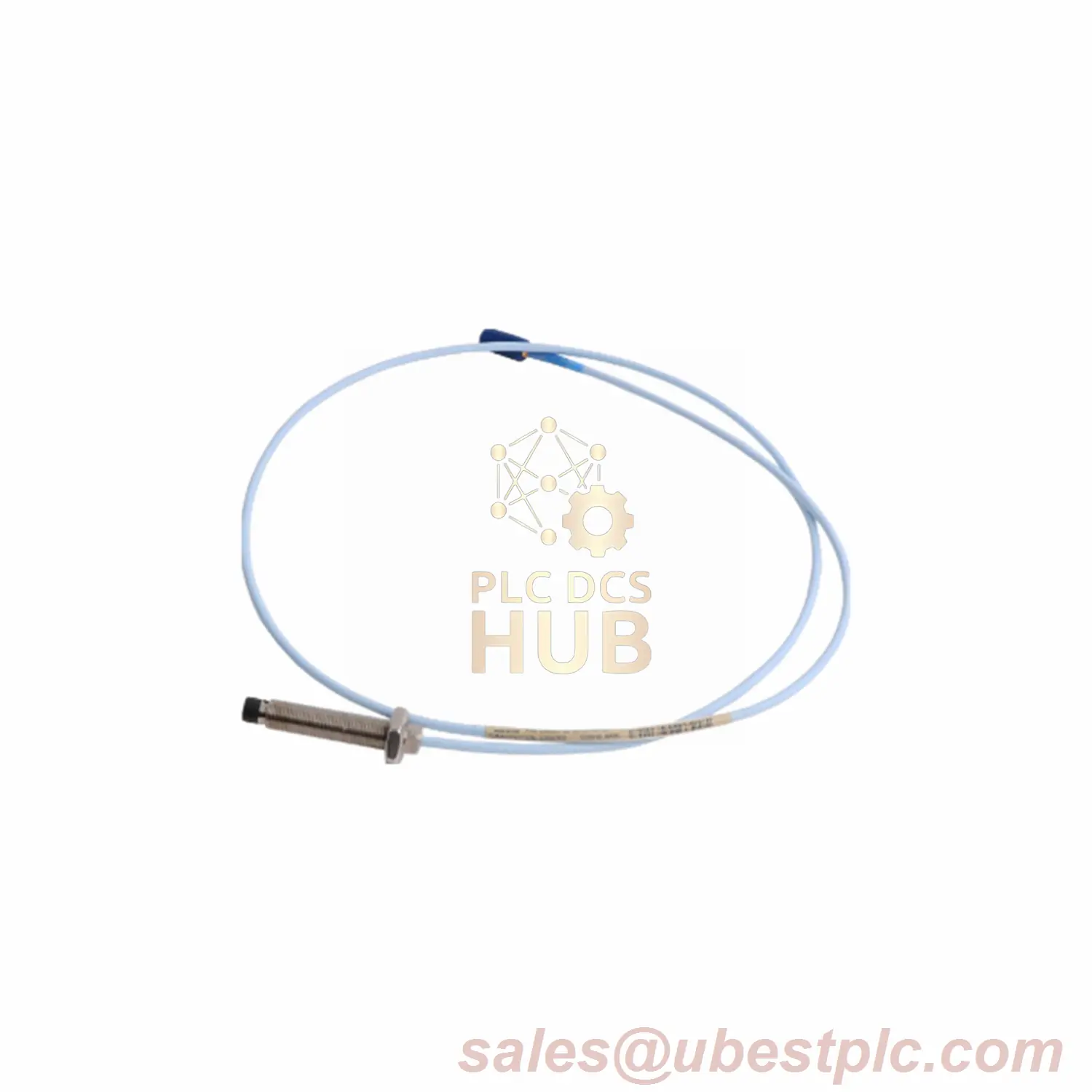

- ???? 1x Armored Probe (230mm)
- ???? 5m SST-Armored Cable
- ???? 1-Year Heavy Industry Warranty
