Description
Product Overview

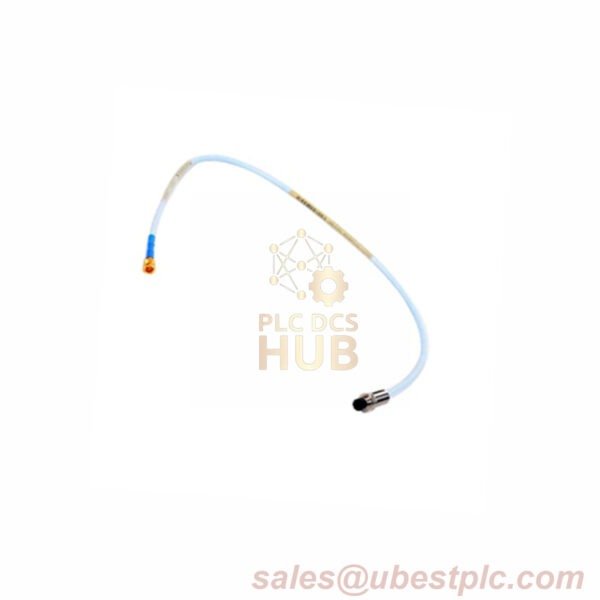

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-50-12-00) is engineered for demanding industrial environments requiring extended reach and fluid resistance. Featuring a 5.0-meter FluidLoc cable and a miniature ClickLoc connector, this probe prevents oil and liquid ingress, ensuring reliable performance in wet or high-pressure conditions.
Technical Specifications
- Brand: Bently Nevada
- Model: 330140-08-50-12-00
- Suffix Breakdown:
- 08: 0.8-inch case length
- 50: 5.0-meter cable (16.4 feet)
- 12: ClickLoc connector + FluidLoc cable
- 00: No agency certifications required
- Suffix Breakdown:
- Probe Tip: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 stainless steel
- Temperature Range:
- Standard: -62°F to +350°F (-52°C to +177°C)
- Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
- DC Resistance: 8.73 Ω ±0.50 (5.0-meter length)
- Scale Factor: 7.87 V/mm ±5% (1/5m systems) or ±6.5% (9m/ETR systems)
- Linearity Deviation: <±0.025 mm (1 mil) for 1/5m; <±0.038 mm (1.5 mil) for 9m/ETR
- Humidity Resistance: <3% ASF change at 93% humidity (56 days, IEC 68-2-3)
- Fluid Resistance: IP67-rated for temporary submersion up to 1 meter
- Signal Bandwidth: 0.1 Hz to 10 kHz for precise dynamic measurement
- Corrosion Resistance: Withstands salt spray per ASTM B117 (500 hours)
- Cable Bend Radius: Minimum 30 mm for repeated flexing
- Installation Torque: 5–7 N·m (44–62 lb·in) for secure mounting
- Response Time: <1.5 ms for real-time data acquisition
Contact Information
For certification documents and technical support:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
