Product Description

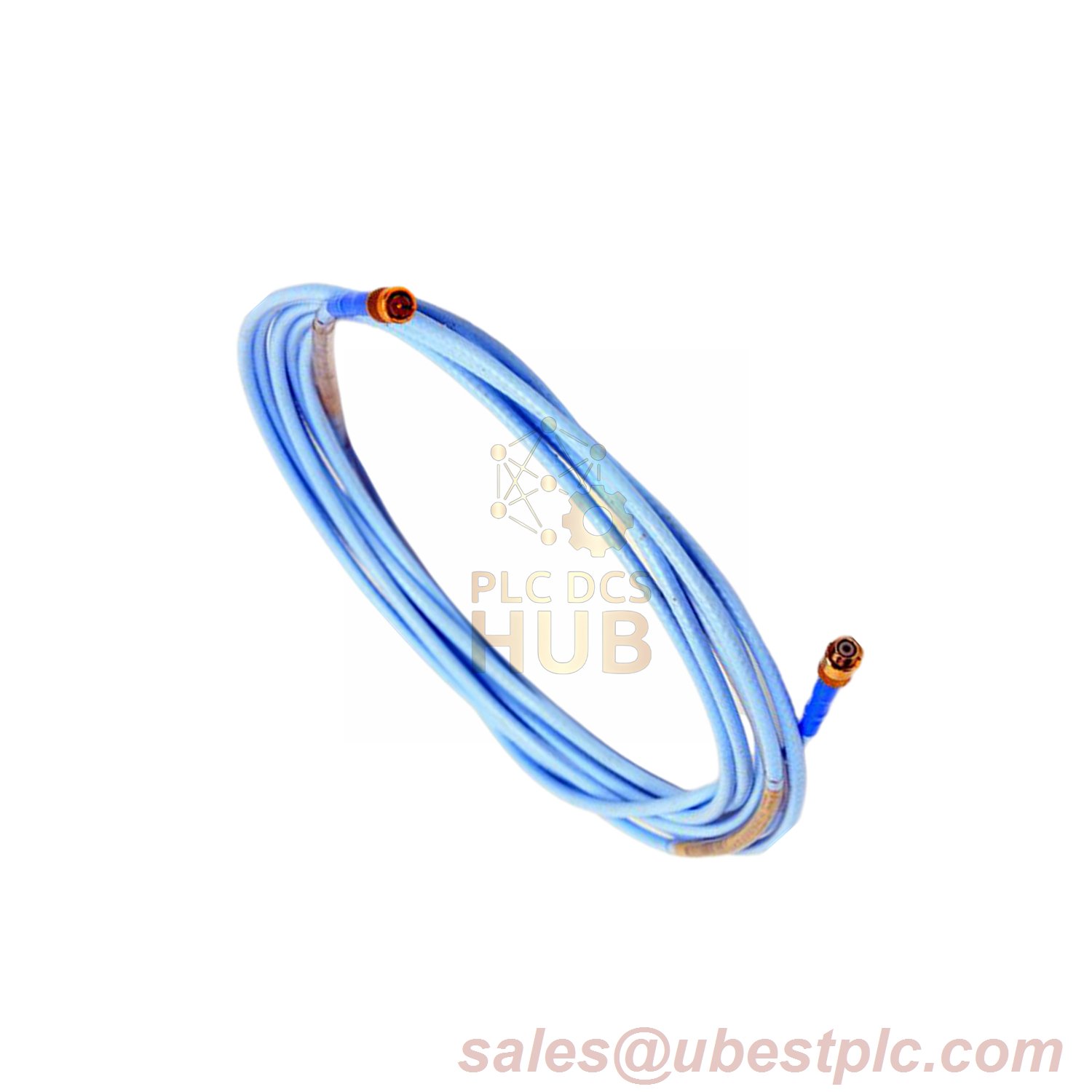

The Bently Nevada 330130-030-10-05 Extension Cable is an integral component of the 3300 XL series, designed for use with 5 mm, 8 mm, and 3300 XL 8 mm Proximity Probes and Proximitor Sensors. It ensures accurate and stable signal transmission in industrial applications, including rotating machinery monitoring, turbine vibration analysis, and predictive maintenance systems. The FluidLoc cable option effectively prevents oil leakage, enhancing reliability in harsh environments.
330130-030-10-05 Technical Specifications
- Cable Length Option: 3.0 meters (9.8 feet)
- Connector Type: ClickLoc corrosion-resistant, gold-plated connectors
- Cable Option: 10 – FluidLoc cable
- Approvals: CSA, ATEX, IECEx
- Extension Cable Weight: 34 g/m (0.4 oz/ft), Total: 0.102 kg
- Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- DC Resistance (Center Conductor): 0.66 ± 0.10 Ω (3.0 m)
- DC Resistance (Outer Conductor): 0.20 ± 0.04 Ω (3.0 m)
- Power Requirement: -17.5 Vdc to -26 Vdc, 12 mA max
- Supply Sensitivity: Less than 2 mV change per volt
- Output Resistance: 50 Ω
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), max length 305m
- Operating Temperature: +18˚C to +27˚C (+64˚F to +80˚F)
