Description
Product Description

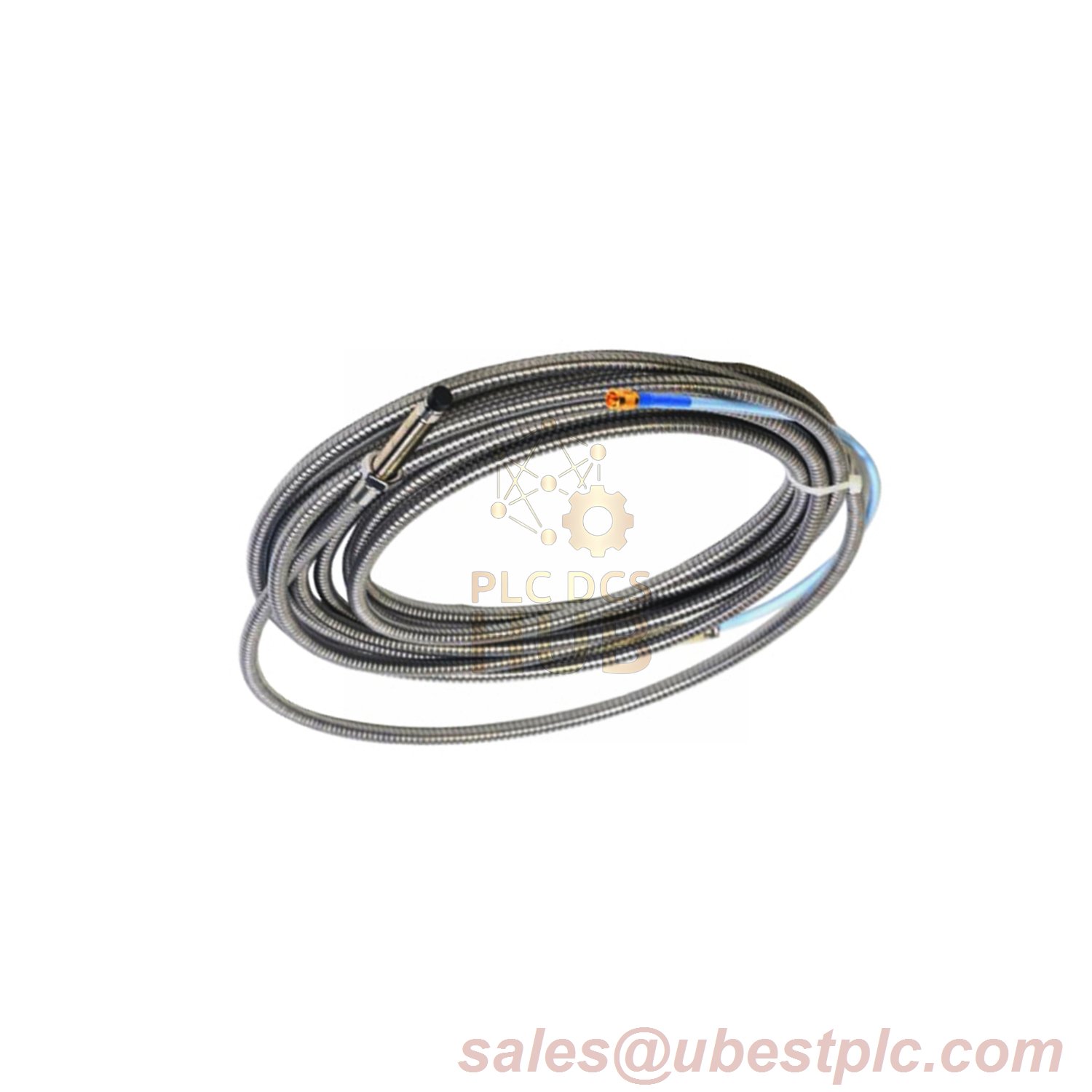

The Bently Nevada 330130-030-11-00 is a high-performance armored **Extension Cable** designed for use with **3300-series 5 mm, 3300 8 mm, or 3300 XL 8 mm Proximity Probes and Proximitor Sensors**. Featuring **FluidLoc technology**, this cable prevents fluid ingress, making it ideal for harsh environments such as turbine oil applications. Its **gold-plated ClickLoc connectors** ensure corrosion resistance and secure connections, while the **armored design** provides exceptional durability and pull strength (330 N / 75 lbf).
Technical Data
- Brand: Bently Nevada
- Model: 330130-030-11-00
- Suffix Details:
- 030: 3.0 meters (9.8 feet) length
- 11: Armored FluidLoc cable
- 00: No approvals required
- Power Supply: -17.5 Vdc to -26 Vdc (without barriers); -23 Vdc to -26 Vdc (with barriers)
- Output Resistance: 50 Ω
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
- DC Resistance (Core): 0.66 Ω ± 0.10 (3.0 m cable)
- DC Resistance (Jacket): 0.20 Ω ± 0.04 (3.0 m cable)
- Weight: 0.309 kg (Armored FluidLoc)
