Bently Nevada | 3300 XL Extension Cable 330730-040-03-05

Description

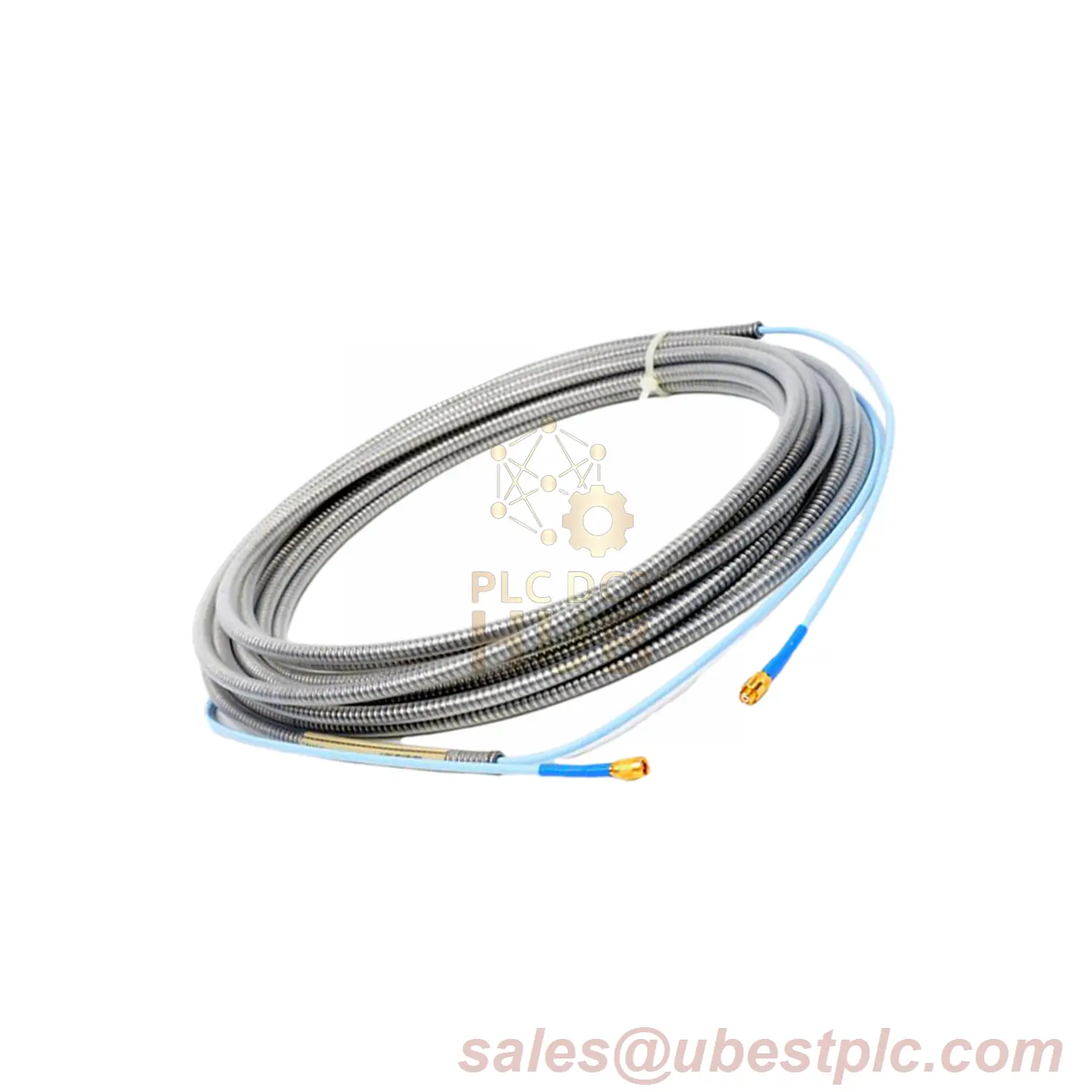

Bently Nevada 3300 XL Extension Cable: Armored Triaxial Connection for Harsh Environments

Industrial-grade 4.0m armored cable with multiple safety approvals and FluidLoc option. Built for -52°C to +177°C operation. Made in USA.

Product resources available:

• Download Installation Guide
• View Technical Specifications

Product Configuration

• Part Number: 330730-040-03-05
• Configuration Details:
  • 040 → 4.0 meter cable length
  • 03 → Armored with connector protector
  • 05 → Multiple agency approvals

Technical Specifications

• Temperature Range: -52°C to +177°C (-62°F to +351°F)
• Cable Type: 75Ω triaxial
• Capacitance: 69.9 pF/m typical
• Resistance: 1.0Ω ±0.25 (core-to-core)
• Armor Material: AISI 302 stainless steel
• Insulation: FEP fluoropolymer
• Weight: 140g/m (armored)
• Tensile Strength: 330N (75 lbs)
• Connector: Gold-plated brass

Shipping & Support

• 12-month warranty
• Global delivery: FedEx, UPS, DHL
• Includes silicone sealing tape
• Technical support available

Technical Questions

• Q: What’s the FluidLoc feature?
  A: Prevents oil from leaking through cable interior
• Q: Cable bend radius?
  A: Minimum 5x cable diameter
• Q: Can I cut to custom length?
  A: Not recommended – voids warranty
• Q: Chemical resistance?
  A: FEP insulation resists most chemicals
• Q: Humidity protection?
  A: Connector protector included

Product Highlights

4m Armored
FluidLoc Ready
Multi-Approved
-52°C to +177°C
