Description

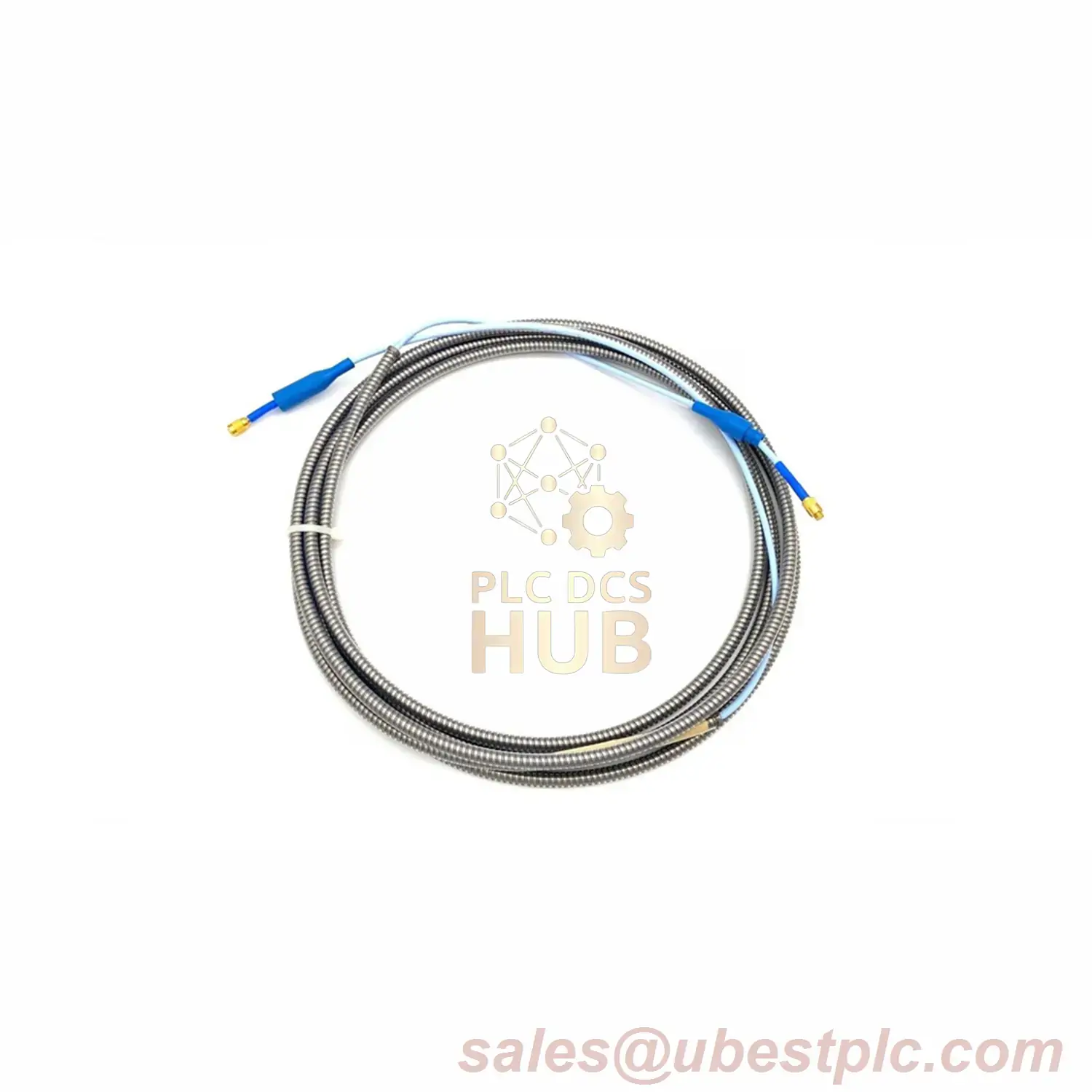

Armored FluidLoc® Extension Cable for Extreme Industrial Environments
Meet the ultimate oil containment solution: Bently Nevada’s 330130-085-11-00 combines armored protection with FluidLoc® technology. Designed for turbines and oil/gas applications, this 8.5m cable prevents internal fluid migration while withstanding 330N pull forces. Gold-plated ClickLoc® connectors ensure corrosion-free performance.
Enhanced Technical Specifications
- Full Suffix Breakdown:
330130 – Base Product
085 – 8.5m Length
11 – Armored FluidLoc®
00 – No Approvals Required
- Signal Integrity: 0.56Ω jacket resistance ±0.11
- Voltage Stability: <2mV fluctuation per volt input change
- Capacitance Stability: 69.9 pF/m (±0.5% temp drift)
- Mechanical Strength: 103 g/m armored construction
Model Comparison Guide
| Feature | 330130-085-11-00 (This Product) | 330130-085-03-05 | 330130-085-10-00 |
|---|---|---|---|
| Protection Type | Armored + FluidLoc® | Armored only | FluidLoc® only |
| Oil Leak Prevention | Yes | No | Yes |
| Connector Type | Gold ClickLoc® | Standard | Gold ClickLoc® |
| Weight (8.5m) | 0.618 kg | 0.875 kg | 0.618 kg |
Installation & Compatibility
- Critical Note: Total (cable + probe) length must match Proximitor Sensor
- Wiring: 3-conductor shielded triad (16-24 AWG)
- Max Distance: 305m from sensor to monitor
- Seal Validation: Custom pressure testing available
Unique Performance Data
- Humidity Resistance: <3% ASF drift @ 93% RH (IEC 68-2-3)
- Linear Accuracy: ±0.5% from 0.25-2.3mm gap
- Altitude Rating: 2000m operational maximum
Technical FAQ
Q: Difference between FluidLoc® and Armored FluidLoc®?
A: Model 11-00 adds steel braiding for crush/abrasion resistance.
Q: Acceptable voltage with intrinsic safety barriers?
A: Requires -23Vdc to -26Vdc when using barriers.
Q: CableLoc® vs ClickLoc® technology?
A: CableLoc® secures cable to probe; ClickLoc® enables tool-free connector mating.
Q: Warranty coverage for oil exposure?
A: Full 12-month coverage includes FluidLoc® oil containment performance.
Package & Shipping
- 8.5m armored FluidLoc® cable
- Silicone tape kit
- Shipping: FedEx/UPS/DHL express (global)
