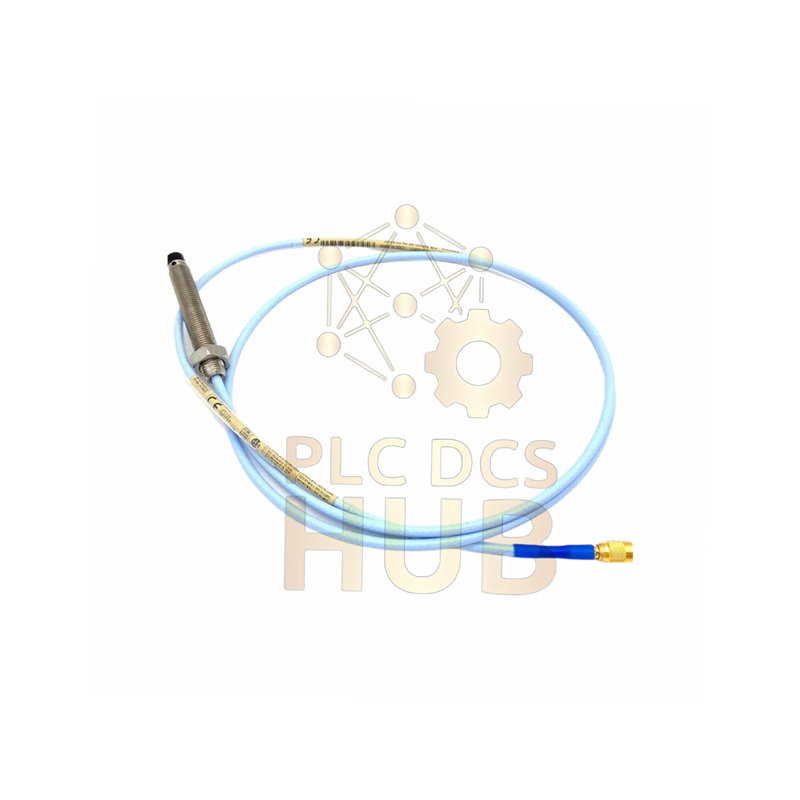

Bently Nevada 330101-00-77-20-02-CN 3300 XL 8 mm Proximity Probe for Vibration Monitoring

Description

Product Description

• Brand: Bently Nevada
• Model: 330101-00-77-20-02-CN
• Series: 3300 XL
• This 8 mm proximity probe measures shaft vibration and position.
• It supports high accuracy in harsh industrial environments.
• The probe uses a non-contact eddy current principle.
• It fits critical rotating machinery monitoring systems.
• The design improves strength and long-term stability.

Core Design Advantages

• TipLoc molding improves bond strength at the probe tip.
• CableLoc design resists cable pull up to 330 N.
• 8 mm diameter increases mechanical robustness.
• PPS encapsulation protects the sensing coil.
• Optional FluidLoc prevents oil migration through cables.

Technical Specifications

• Measurement Range: Linear from 0.25 to 2.3 mm.
• Usable Linear Span: 2 mm total range.
• Sensitivity: 7.87 V/mm, typical.
• Resolution: Supports micrometer-level displacement detection.
• Linearity Error: Less than ±0.025 mm for standard systems.
• Probe Resistance: 7.88 Ω ± 0.50 Ω at 2.0 m.
• Cable Capacitance: 69.9 pF per meter, typical.

Frequency Response and Signal Integrity

• The probe supports wide vibration frequency ranges.
• Signal roll-off depends on field wiring length.
• Maximum field wiring length reaches 305 meters.
• Shielded triad cable improves noise immunity.
• Strong resistance to electromagnetic interference.

Mechanical and Material Data

• Probe Tip Material: Polyphenylene sulfide.
• Probe Case: Stainless steel AISI 303 or 304.
• Weight: Approximately 323 g per meter.
• 3/8-24 UNF mounting thread ensures secure installation.

Temperature and Environmental Limits

• Standard Range: -52°C to +177°C.
• Extended Range: Up to +218°C at the probe tip.
• Cable and connector tolerate up to +260°C.
• Stable performance in high humidity environments.
• Scale factor drift stays below 3 percent.

Pressure and Sealing Performance

• Designed to seal differential pressure at the probe tip.
• Viton O-ring provides reliable sealing.
• Probes are not pressure tested before shipment.
• Custom pressure testing is available on request.

Installation Guidelines

• Recommended gap setting is -9 Vdc for radial vibration.
• This equals approximately 1.27 mm clearance.
• Use proper alignment to avoid probe damage.
• Avoid exposure below -34°C during installation.

Commissioning and Maintenance

• Quick setup using standard 3300 XL proximitor sensors.
• No frequent recalibration is required.
• Visual inspection ensures long service life.
• Connector design simplifies replacement tasks.

System Compatibility

• Works with Bently Nevada 3300 XL Proximitor sensors.
• Compatible with 5 m and 9 m system lengths.
• Supports standard and extended temperature systems.
• Designed for Bently Nevada vibration monitors.

Typical Applications

• Steam and gas turbines.
• Centrifugal compressors.
• Large motors and generators.
• Pumps and critical rotating assets.

Diagnostic Capabilities

• Detects shaft vibration changes early.
• Identifies misalignment and imbalance.
• Supports predictive maintenance strategies.
• Reduces unplanned downtime risks.

Certification and Origin

• Country Code: CN specific approval.
• Origin: Made in U.S.A.
• Designed to meet industrial monitoring standards.

Package Contents

• One Bently Nevada 3300 XL 8 mm probe.
• Factory-attached standard cable.
• Miniature coaxial ClickLoc connector.
• Product identification and labeling.

Warranty and Logistics

• Warranty: 12 months.
• Carefully packed for international shipment.
• Shipping via FedEx, UPS, or DHL.

FAQ

• What makes the 8 mm probe more durable?
• The thicker probe body improves resistance to physical damage.
• Can this probe work in high temperature areas?
• Yes, it supports extended temperature operation.
• Is this probe suitable for long cable runs?
• Yes, it supports up to 305 meters of field wiring.
• How do I choose the correct probe length?
• Select based on machine design and mounting depth.
• Is FluidLoc needed for my application?
• Use it when oil leakage through cables is a concern.

Buying Guidance

• Confirm system length before ordering.
• Check temperature requirements carefully.
• Match the probe with the correct proximitor sensor.
• Consult experts for critical machinery protection.
