Description
Product Description

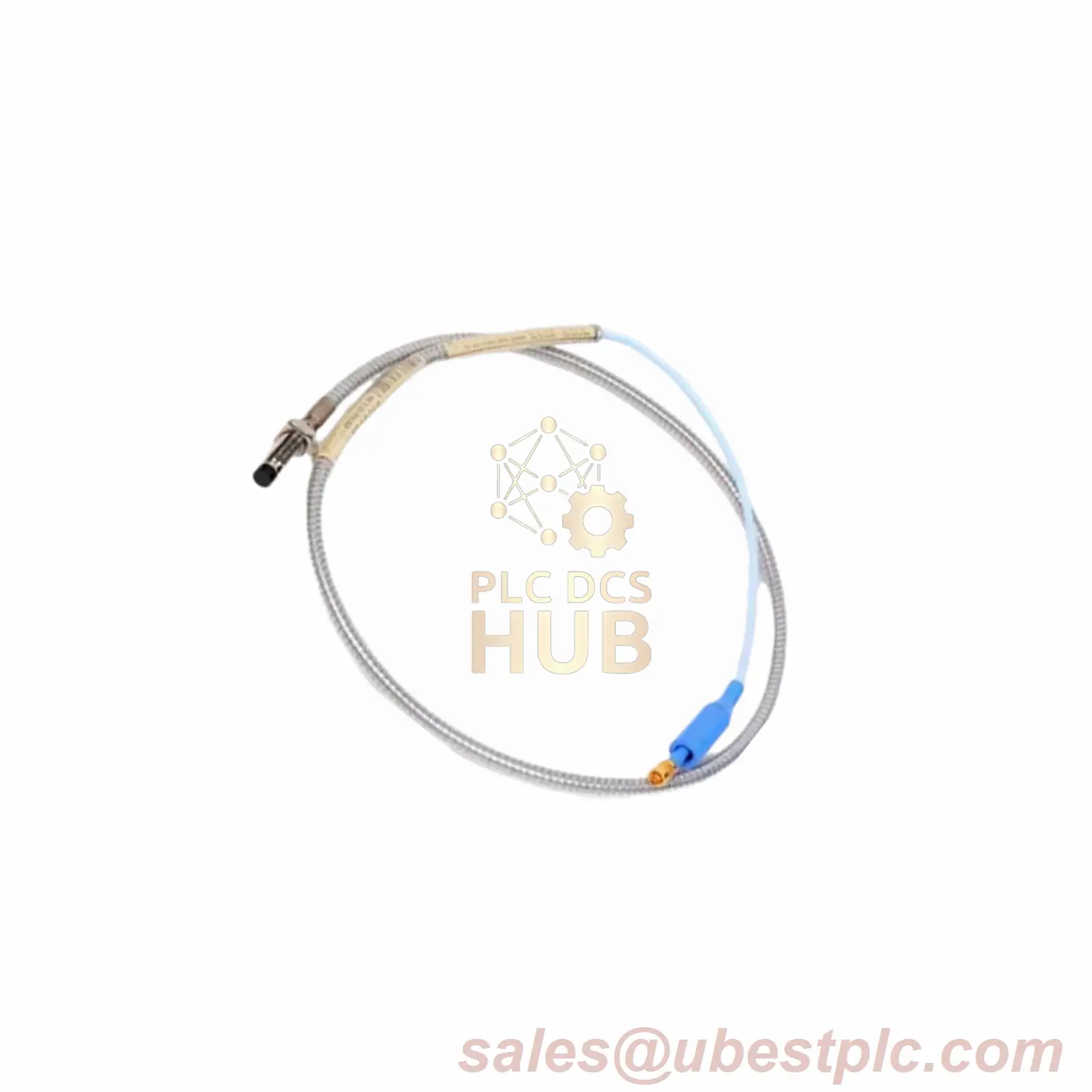

The Bently Nevada 330101-29-52-10-02-05 is an 8 mm industrial vibration probe with a 5.2-inch case and 2.9-inch unthreaded section. Built for hazardous environments, it includes CSA, ATEX, and IECEx certifications and a ClickLoc connector.
Technical Data
| Brand | Bently Nevada |
| Model | 330101-29-52-10-02-05 |
| Suffix Details | 29 (2.9in Unthreaded), 52 (5.2in Case), 10 (1m Cable), 02 (ClickLoc), 05 (Certifications) |
| Measurement Range | 0.25–2.3 mm (10–90 mils) |
| Output Signal | -9 Vdc (1.27 mm gap) |
| Accuracy | ±0.025 mm (±1 mil) |
| Operating Temp | -52°C to +218°C (Probe Tip) |
| Cable Strength | 330 N (75 lbf) pull resistance |
Installation Guide
- Ideal for tight spaces (5.2in case).
- Set gap to 1.27 mm (50 mils) using shielded triad cable.
- Avoid bending cables near connectors.
- Do not expose to temps below -34°C (-30°F).
Compatibility
- Works with 3300 XL Proximitor® systems.
- Supports 1.0-meter and 9-meter configurations.
Certifications
- CSA, ATEX, IECEx approved for hazardous areas.
- Complies with IEC 60079 (explosive atmospheres).
Package Contents
- 1x 8 mm Probe (5.2in case)
- 1x Safety Compliance Sheet
- 1-Year Warranty.
Application Examples
- Oil & Gas: Monitor pump vibrations in explosive zones.
- Power Plants: Track steam turbine shaft alignment.
- Paper Manufacturing: Detect bearing wear in high-humidity mills.
