Description
Model Decoder
- 330102-00-20-10-02-05 means:
- 00 = 0″ unthreaded section
- 20 = 2.0″ stainless steel case
- 10 = 1.0m cable length
- 05 = CSA/ATEX/IECEx approved
Quick Specs For 330102-00-20-10-02-05
- Senses: 0.25-2.3mm (0.01-0.09″)
- Voltage: -1V to -17V output
- Works in: -52°C to +260°C
- Thread: 3/8-24 UNF (14mm max depth)
- Weight: 323g/m (11.4oz/ft)
Install Smart
- Set gap to 1.27mm (0.05″) for best results
- Use 16-24 AWG shielded cable
- Max 305m (1000ft) from sensor to monitor
- ⚠️ 3m/5m cables need special Proximitors
Safety First
- Explosion-proof: Zone 0/2
- ATEX & IECEx certified
- Works with Groups A-G gases/dust
Real World Hero
Stops wind turbine gearbox failures by catching bearing wear early in 2MW generators.

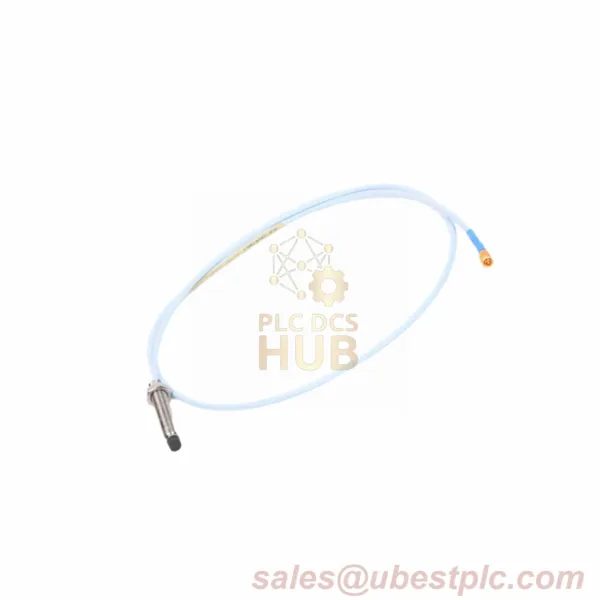

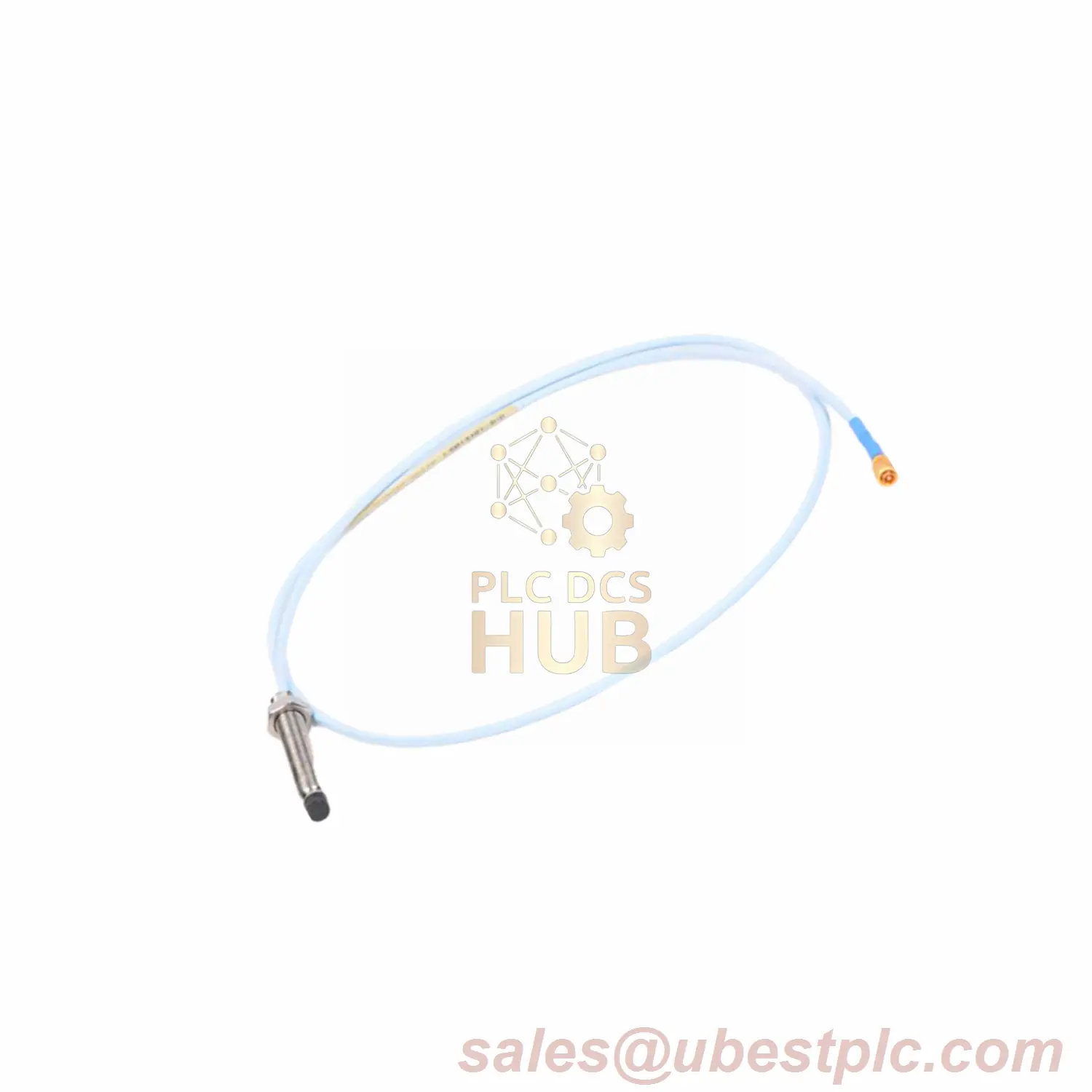

Box Contents
- 1x 2″ armored probe
- 1.0m ClickLoc cable
