Description
Product Overview

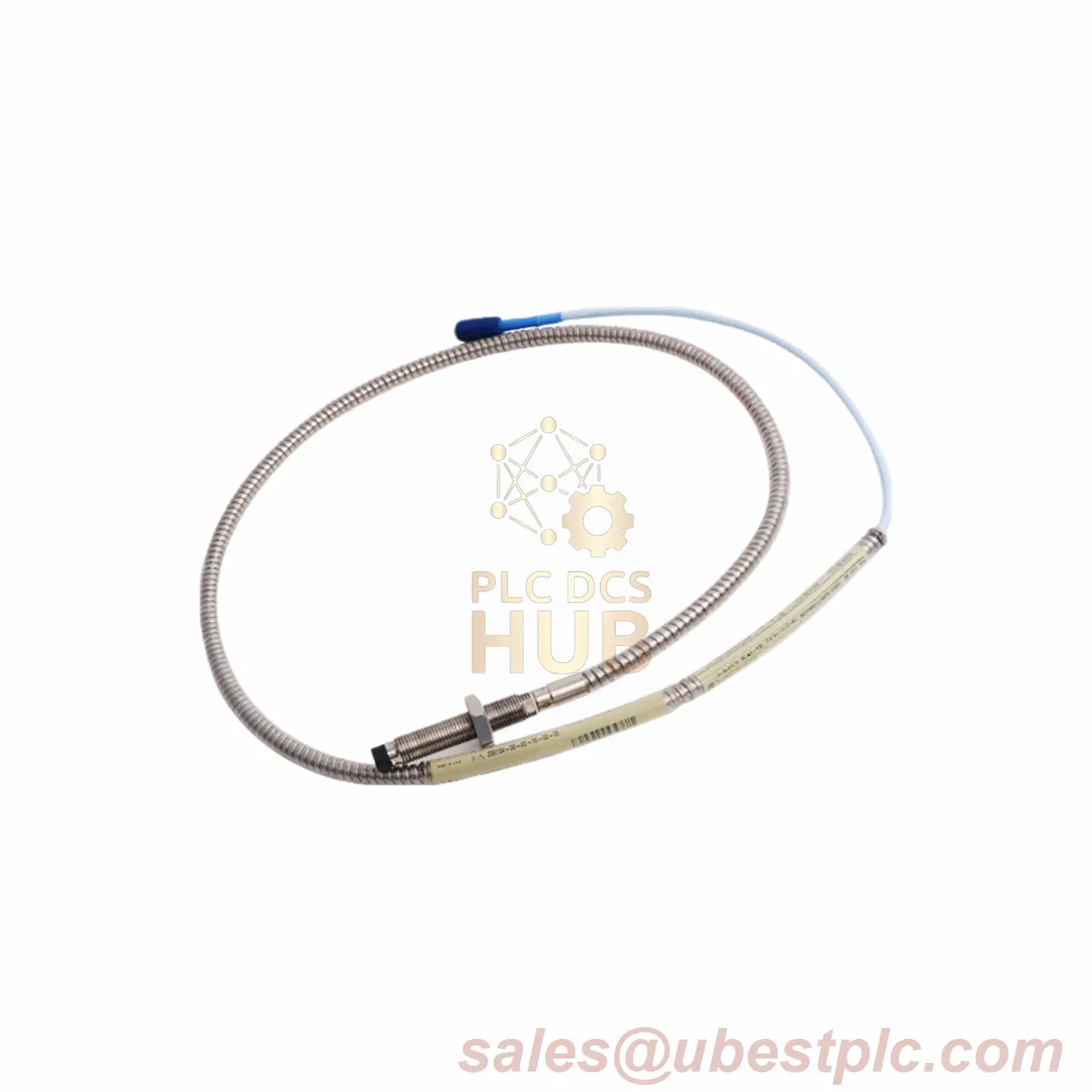

The Bently Nevada 3300 XL 8 mm Proximity Probe (P/N: 330102-24-72-10-02-CN) is a high-precision sensor for vibration monitoring. Built with stainless steel casing and a PPS probe tip, it ensures durability in harsh environments. Ideal for industrial machinery health monitoring.
Technical Data
- Brand: Bently Nevada
- Model: 330102-24-72-10-02-CN
- Suffix Details: 24 (2.4″ unthreaded), 72 (7.2″ case), 10 (1.0m cable), 02 (Mini-ClickLoc connector), CN (country approvals)
- Range: 0.25–2.3 mm (10–90 mils)
- Output: -1 to -17 Vdc (linear)
- Accuracy: ±0.5Ω resistance (1.0m cable)
- Temp Range: -52°C to +177°C (standard)
- Pressure Seal: Viton® O-ring (not tested)
Installation Guide
- Use 3/8-24 UNF thread (max 0.563″ engagement)
- Set gap to -9 Vdc (~1.27 mm) for radial vibration
- Max wiring: 305 meters (shielded triad cable)
Compatibility
- 1.0m cable: Works with 5m/9m Proximitor®
- 3m cable: Use only with 9m Proximitor®
- 5m cable: Pair with 5m Proximitor®
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5
- Class I Div 2, Groups A-D
- Zone 0/2 hazardous areas
Package Contents
- 3300 XL 8 mm Probe
- Installation manual
Warranty
1-year limited warranty against defects.
Real-World Applications
- Gas turbine vibration monitoring
- Compressor shaft displacement
- Power generator health analysis
Contact Us
Email: sales@ubestplc.com
Phone: +86 158 8020 0923
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
