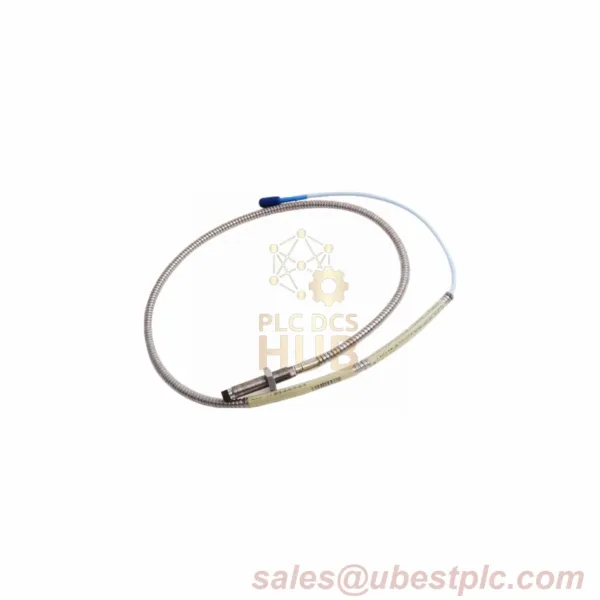

Bently Nevada 330102-10-45-10-02-05 – Proximity Probe With Armor

Description

Product Overview

The Bently Nevada 330102-10-45-10-02-05 is an 8mm proximity probe built for extreme industrial environments. With a 4.5-inch stainless steel case and 1.0-meter ClickLoc cable, it delivers reliable vibration data in high-temperature applications like power plants.

Decoding the Model Number

• 330102-10-45-10-02-05 breaks down as:
• 10 = 1.0″ unthreaded section
• 45 = 4.5″ total case length
• 02 = ClickLoc connector
• 05 = CSA/ATEX/IECEx certified

Critical Specifications

• Measurement: 0.25mm–2.3mm (10–90 mils)
• Output: -1V to -17V linear range
• Temp Survival: -52°C to +260°C
• Thread: 3/8-24 UNF (max 0.563″ depth)
• Weight: 323 g/m (11.4 oz/ft)

Installation Essentials

• Optimal gap: 1.27mm (50 mils) at -9V
• Use 16-24 AWG shielded cable
• Max 305m (1000ft) from sensor to monitor
• ⚠️ 3m/5m cables require specific Proximitors

What You Receive

• 1x 4.5″ armored probe
• 1.0m ClickLoc cable assembly
• Installation guide
• 1-year defect warranty
