Product Overview

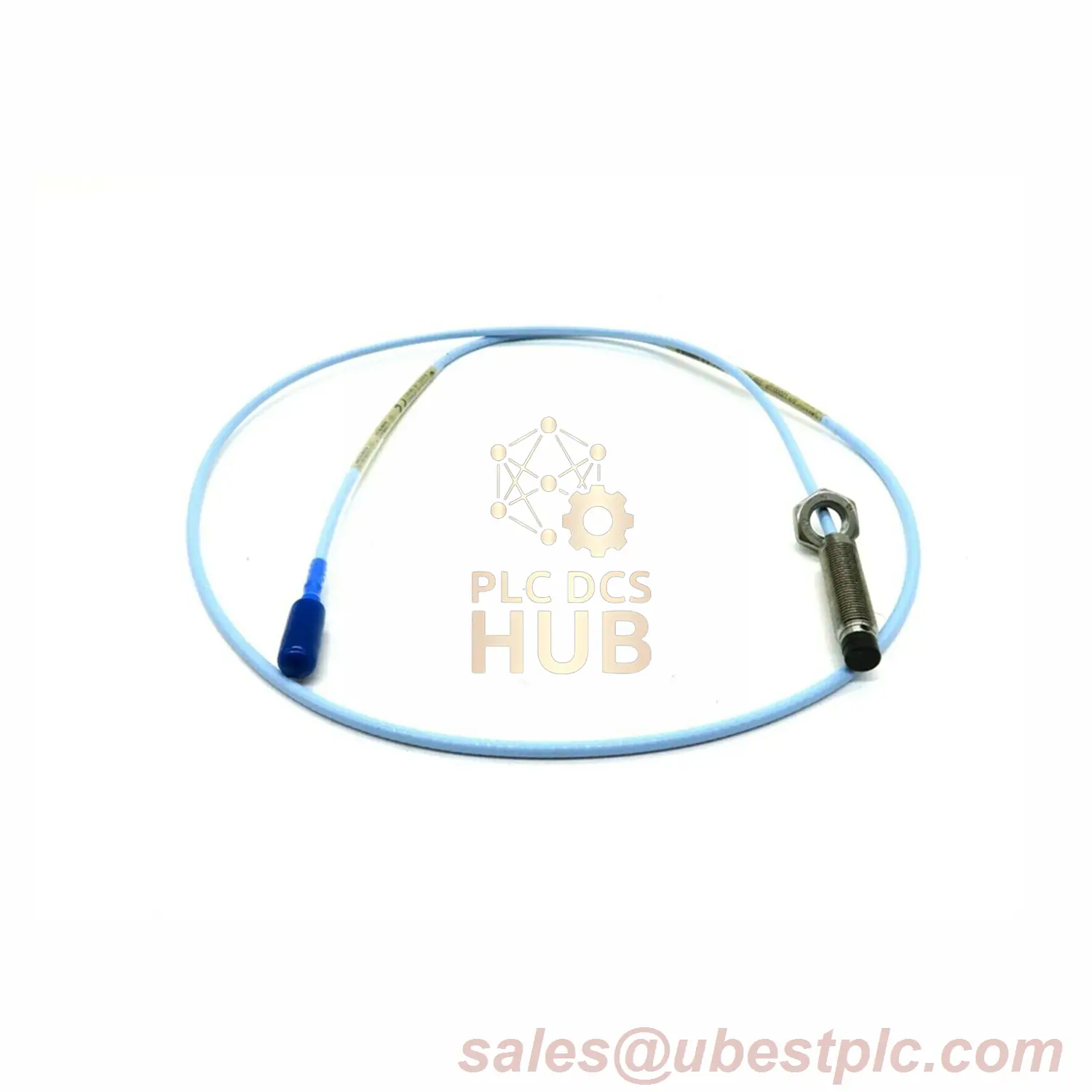

The Bently Nevada 3300 XL Extended-Range Proximity Probe (Model: 330103-06-10-50-02-00) features a 5-meter heavy-duty cable and 60mm unthreaded section, designed for installations requiring long-distance signal transmission. Compatible exclusively with 5m Proximitor® sensors for optimal performance.
Technical Specifications for 330103-06-10-50-02-00
- Suffix Configuration: 06-10-50-02-00
06: 60mm Unthreaded Length
10: 100mm Case
50: 5.0m (16.4ft) Cable
02: ClickLoc® Gen2 Connector
00: Standard Industrial Use
- Cable Resistance: 8.73Ω ±0.50Ω @ 5m
- Voltage Drop: <0.5V @ 24VDC over 100m
- Frequency Response: 0-8kHz (±1dB) with 5m cable
- Torsional Strength: 25Nm max installation torque
Performance Features
- Cable Construction: Dual-layer shielding with drain wire
- Phase Matching: ±1° between matched probe pairs
- Chemical Resistance: Resists hydraulic fluids (MIL-H-5606)
Installation Requirements
- Use cable trays with 150mm radius bends
- Maintain 50mm separation from power cables >480VAC
- Apply thread sealant compatible with -54°C to 260°C
Compliance Standards
- NFPA 70 Article 500 hazardous location guidelines
- ISO 13373-2 Condition monitoring standards
Industrial Applications
- Refinery Systems: FCCU reactor strain monitoring
- Hydroelectric Plants: Kaplan turbine blade clearance measurement
- Material Handling: Stacker-reclaimer slew bearing analysis
Engineering Support: For long-cable installation guides or chemical compatibility charts, email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
