Description
Long Shank Metric Vibration Sensor

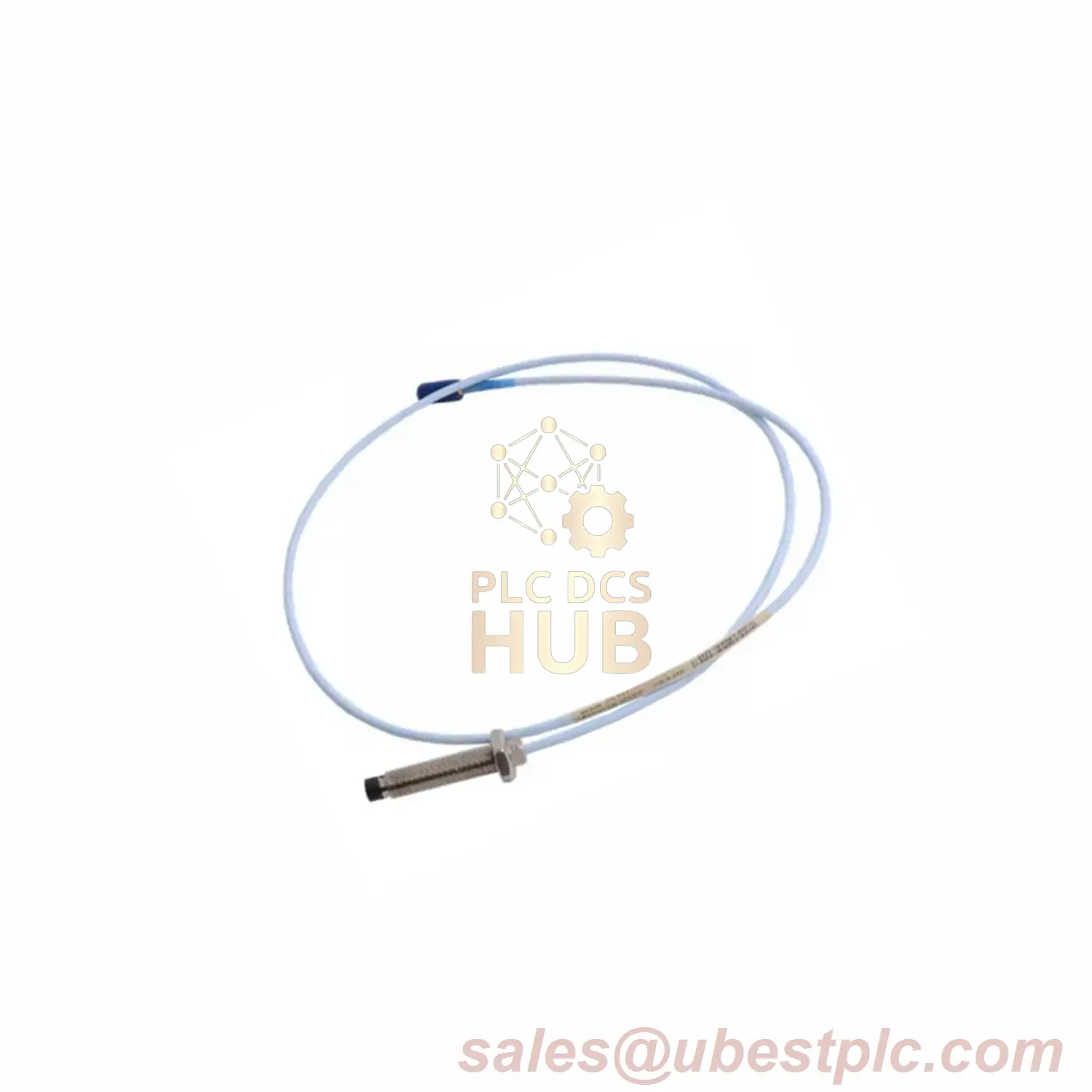

This is the Bently Nevada 330103-12-16-10-02-05. It features a 120mm unthreaded shank for deep installations. This 3300 XL 8mm Proximity Probe has an M10x1 thread and global safety approvals. Ideal for precise machine condition monitoring.
Model Number Feature Breakdown
- Probe Base: 330103 (M10x1 Metric Thread)
- Position 1 [12]: Unthreaded Length = 120 mm
- Position 2 [16]: Overall Case = 160 mm
- Position 3 [10]: Cable Length = 1.0 m
- Position 4 [02]: Connector = ClickLoc
- Position 5 [05]: Approvals = CSA, ATEX, IECEx
Key Specifications & Construction
- Thread Type: M10 x 1.0 mm.
- Body Material: Stainless Steel (AISI 303/304).
- Sensing Tip: Durable PPS Plastic.
- Electrical Data: 7.59 Ω ± 0.5 Resistance.
- Measurement Range: 2.0 mm (80 mils) Linear.
- Output Signal: 7.87 V/mm Sensitivity.
- Thread Engagement: Maximum 15 mm.
- Temperature: -52°C to +177°C Operation.
- Internal Seal: Viton O-Ring.
- Hazardous Area: Class I, Zone 0/1/2 Certified.
Package Contents & Guarantee
- One Bently Nevada 330103-12-16-10-02-05 probe.
- ClickLoc connector pre-attached.
- Factory inspection certificate.
- Reliable 12-month product warranty.
Express shipping options: FedEx, UPS, DHL. Questions? Reach our team on WhatsApp: +86 158 8020 0923.
FAQ: Understanding Your Probe
What is the purpose of the 120mm unthreaded section?
The long unthreaded shank allows the probe to pass through a mounting boss or insulation. The threads only engage at the final mounting point for a secure fit.
Can I use this probe with any monitor?
It is designed for Bently Nevada 3300 XL compatible systems. For other monitors, verify they support 8mm, 7.87 V/mm eddy current probes.
What is the difference between -12 and -00 unthreaded length?
The -12 (120mm) offers more flexible mounting depth than the -00 (0mm). Choose based on your mounting assembly thickness.
How do I protect the probe during storage?
Keep it in its original packaging. Store in a dry, room-temperature environment. Avoid bending the cable sharply.
Do you offer expedited shipping for this 330103-12-16 model?
Yes. We can arrange fast delivery via express couriers. Contact us before ordering to confirm the best shipping method and cost for your location.
