Leak-Proof Proximity Probe for Wet & Oily Environments

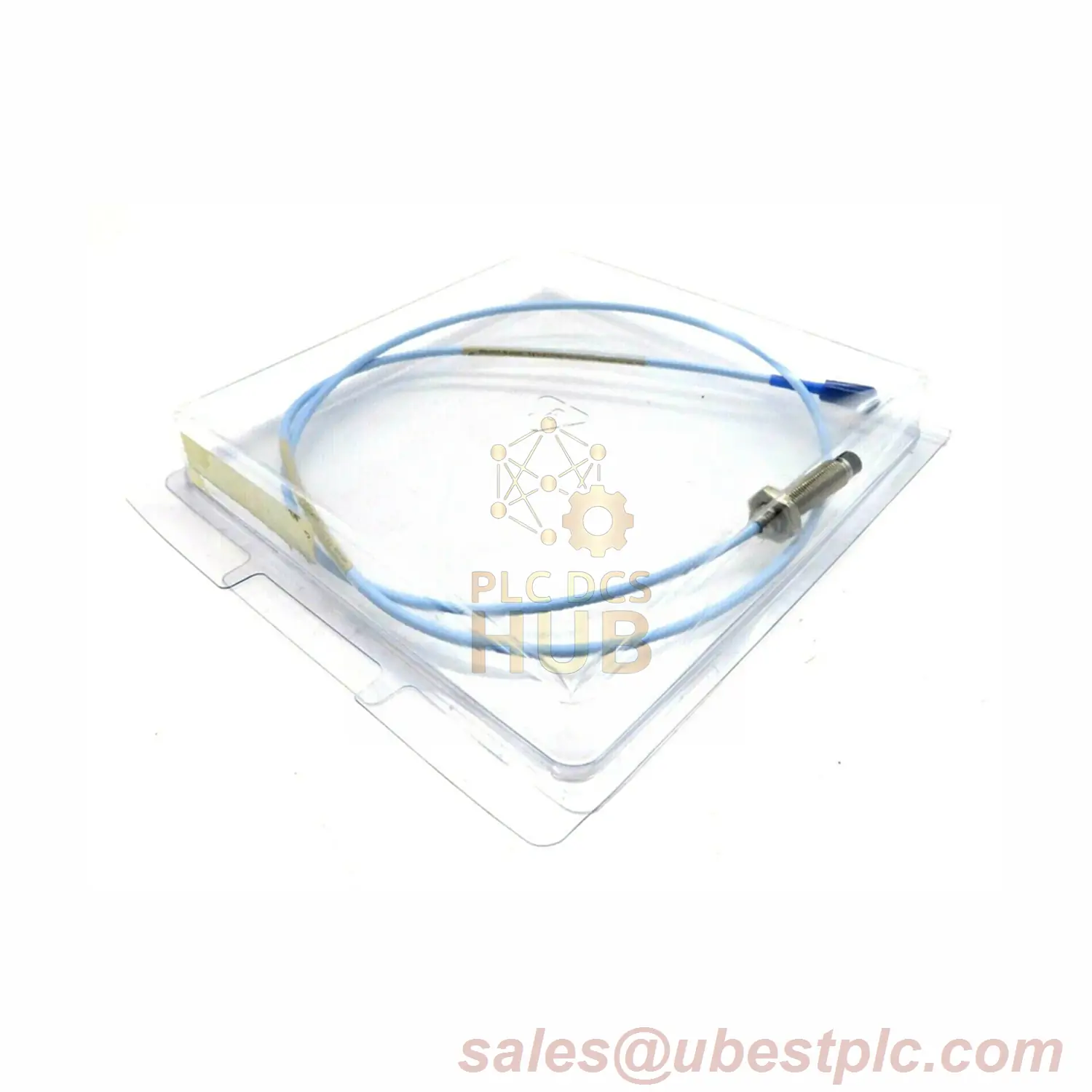

This premium Bently Nevada 3300 XL 8mm Probe features a special FluidLoc cable. It prevents oil and fluid from leaking through the cable. This protects your machinery and ensures reliable monitoring in challenging, wet conditions.
Model Breakdown: Your Probe’s Exact Features
The full part number 330103-00-21-05-11-05 details every feature:
- Product Root:
- 330103 | Base Model: 3300 XL 8 mm Probe with M10 x 1 metric thread.
- Size & Length Configuration:
- 00 | Unthreaded Section: 0 mm.
- 21 | Case Length: 210 mm (long reach).
- 05 | Cable Length: 0.5 meter.
- Advanced Connection & Safety:
- 11 | Connector: ClickLoc with protector & FluidLoc cable.
- 05 | Approvals: CSA, ATEX, IECEx (Hazardous Areas).
Core Technical Data & Durability
- Measurement Specs:
- Linear Range: 2.0 mm (80 mils).
- Resistance (0.5m): 7.45 ± 0.5 Ω.
- Heavy-Duty Construction:
- Case: 303/304 Stainless Steel.
- Tip: Rugged PPS Plastic.
- Seal: Viton O-ring for internal pressure.
- Mechanical Limits:
- Thread Engagement (M10x1): Max 15 mm.
- Operating Temp: -52°C to +177°C.
Special FluidLoc Feature & Certifications
- FluidLoc Cable: Seals the cable interior. Stops oil migration from the machine casing to the connector.
- Hazardous Area Rated: Certified for Zone 0/1/2 with proper barriers. Includes intrinsic safety (ia) and non-incendive (nA, ec) protection types.
- Environmental Stability: Performance changes less than 3% in high humidity (93%).
Target Applications & Integration
This probe is ideal for machinery with oil splash, seal oil systems, or wet conditions. The long 210mm case is perfect for deep mounting. It connects directly to Bently Nevada 3300 XL monitors for vibration and position measurement.
Complete Package & Service
- One 3300 XL 8mm probe with FluidLoc cable and connector protector.
- All necessary certifications and documentation.
- 12-month manufacturer’s warranty.
- Express shipping options: FedEx, UPS, DHL for quick delivery.
Specialized FAQs
What is the FluidLoc cable, and why is it important?
FluidLoc is a special cable design. It blocks oil or process fluid from traveling inside the cable from the machine to the electrical connection. This prevents safety hazards and connection corrosion.
Where is the 210mm case length typically used?
The long 210mm case is used when the probe must mount through a thick housing or insulation blanket to reach the measurement point on the shaft.
Is the connector protector included?
Yes. The “-11” option includes a physical protector that snaps onto the ClickLoc connector. This guards against impact and contamination during operation.
What is the main benefit of ordering the “-05” approval option?
It gives you maximum site flexibility. The probe is pre-certified for virtually all major global hazardous area standards, simplifying procurement and approval for international projects.
Can I get the FluidLoc feature with a longer cable?
Yes. This model (330103-00-21-05-11-05) has a 0.5m cable. Contact us to configure a probe with FluidLoc and a 5m or 9m cable for your specific needs.
