Description

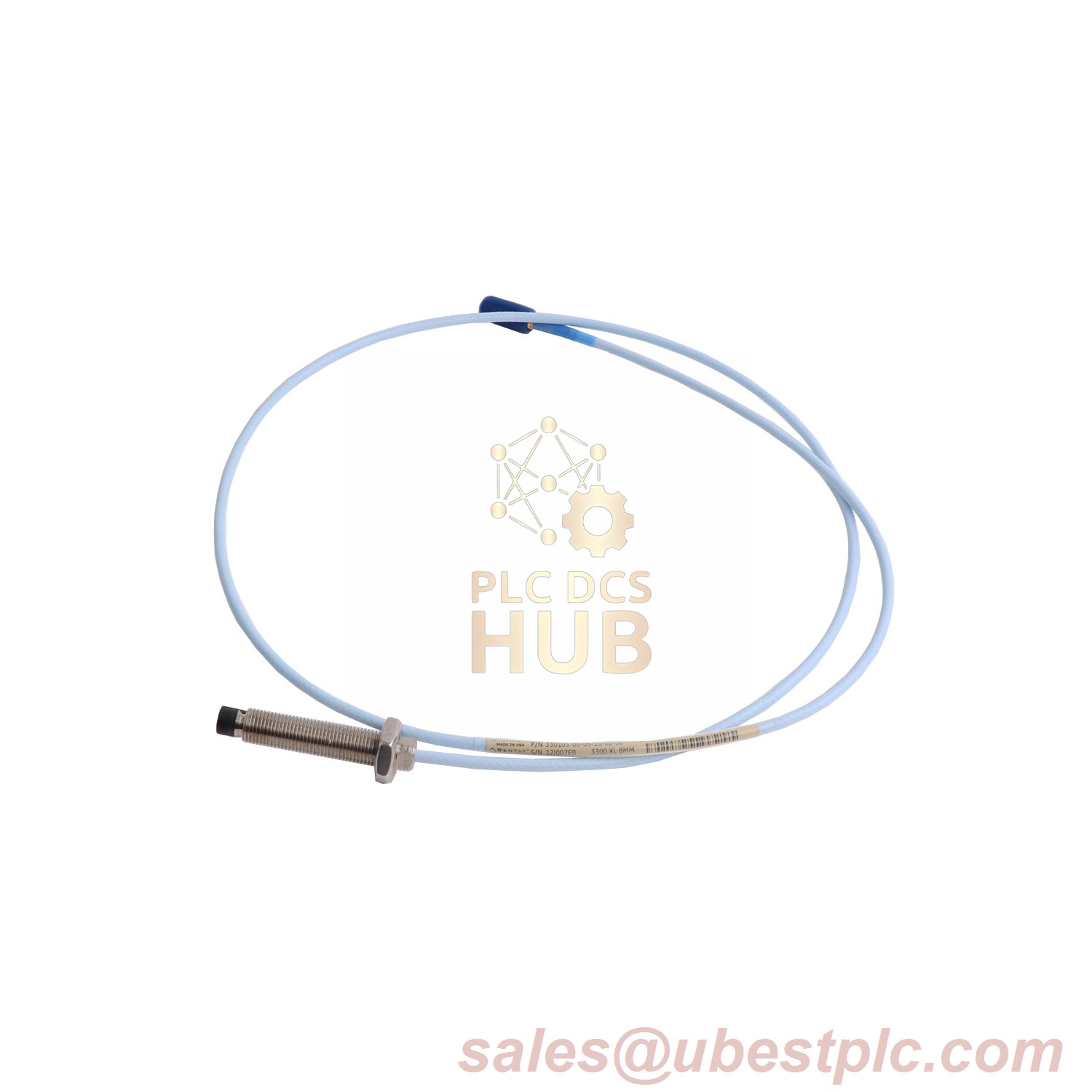

Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330104-00-03-10-02-00)
Made in the U.S.A. Ultra-compact proximity probe 330104-00-03-10-02-00 with a 30mm case and 1.0-meter armored cable, engineered for space-constrained industrial applications. Features Viton® O-ring sealing and M10x1 threading for reliable pressure resistance.
Suffix Code Configuration
| Suffix | Parameter | Specification |
|---|---|---|
| 00 | Unthreaded Length | 0 mm (fully threaded M10x1) |
| 03 | Case Length | 30 mm (1.18″) – shortest in 3300 XL series |
| 10 | Cable Length | 1.0 m (3.3 ft) triaxial armored cable |
| 02 | Connector | Miniature ClickLoc™ IP66-rated |
| 00 | Certifications | None required |
Technical Specifications
Electrical Performance
- Voltage Range: -17.5 Vdc to -26 Vdc (12 mA max)
- Resistance (1.0m): 7.59 Ω ±0.50 (center to outer conductor)
- Output Sensitivity: <2 mV/V input variation
Operational Validation
- Calibration Target: AISI 4140 steel @ 1.27 mm gap
- Tested Temperature: +18°C to +27°C (±0.5% accuracy)
- Altitude Limit: 2000m (6562 ft) above sea level
Application Note: Optimized for pumps, compressors, and turbines where mounting depth is critical. Not rated for explosive atmospheres.
Contact: Email sales@ubestplc.com for COO or custom configurations.
