Description
Description

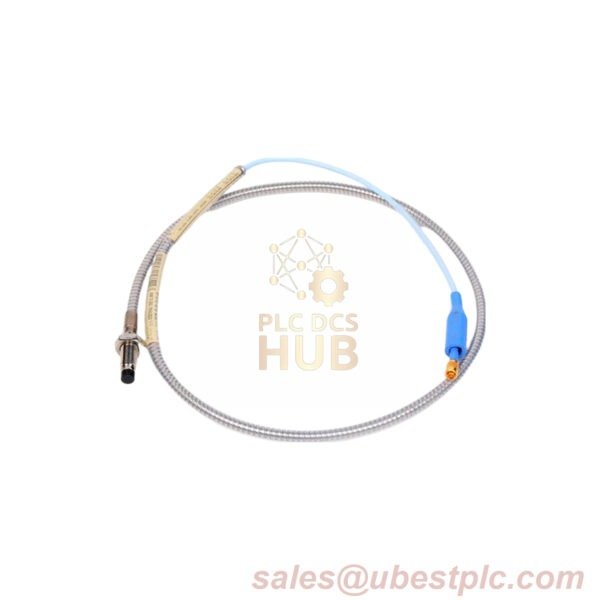

The Bently Nevada 330104-00-07-10-01-CN Proximity Probe is a CN-certified industrial sensor designed for precision vibration monitoring in hazardous environments. Featuring a 70 mm (2.76″) stainless steel case, 1.0 m (3.3 ft) armored cable, and Miniature ClickLoc™ connector with protector, this probe meets Chinese regulatory standards for explosive atmospheres. Built with an M10x1 armored thread and Viton® O-ring seal, it ensures reliability in demanding industrial applications.
Technical Specifications
- Model: 330104-00-07-10-01-CN
- Configuration:
- Unthreaded Length: 0 mm (fully threaded)
- Case Length: 70 mm (2.76″)
- Total Cable Length: 1.0 m (3.3 ft)
- Connector: Miniature ClickLoc™ with Protector
- Certifications: CN Country Specific
- Electrical:
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance (1.0m): 7.59 Ω ±0.50
- Mechanical:
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Seal: Viton® O-ring (pressure-rated)
Why Choose This Model?
This probe combines CN market compliance with Bently Nevada’s industrial-grade reliability. The 70 mm case and 1.0 m armored cable balance compact installation with flexible routing, while the Viton® seal ensures performance under pressure. Ideal for Chinese facilities requiring explosion-proof monitoring.
