Description

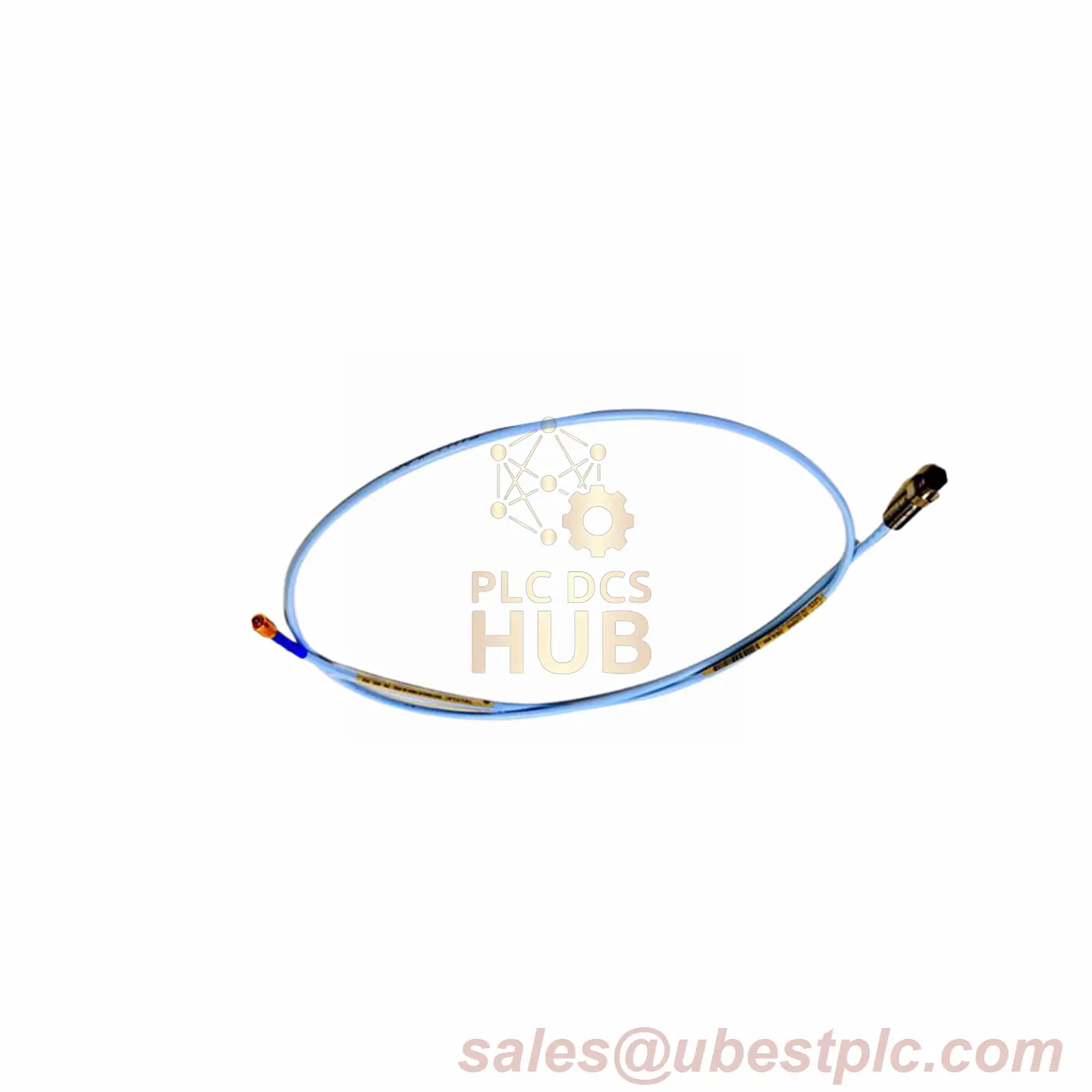

Bently Nevada 3300 XL 8mm Vibration Probe – 3 Meter Cable
Long-reach industrial sensor with hazardous area certifications for remote monitoring applications.
Model Number Breakdown
- 330106 – Base product code
- 05 – Standard temp cable
- 30 – Fixed configuration
- 30 – 3.0 meter cable
- 02 – ClickLoc connector
- 05 – CSA/ATEX/IECEx certified
Key Specifications
| Electrical Resistance | 8.17Ω ±0.50 (3m cable) |
| Cable Weight Total | 969 grams (323g/m × 3m) |
| Bending Radius | Min. 25mm at installation |
| Vibration Range | 0-10 mm (standard applications) |
| Response Frequency | 0 to 10 kHz |
Certifications & Approvals
- CSA Class I, Div 2
- ATEX Zone 2/22
- IECEx Ex ec IIC T4 Gc
- IP67 rating (connector mated)
Physical Properties
- Tip material: PPS plastic
- Body: 303/304 stainless steel
- Cable: FEP insulated triaxial
- Seal: Viton O-ring
- Gold-plated contacts
Installation Guide
- Mounting thread: M10×1
- Max engagement: 15mm
- Storage temp: -52°C to +70°C
- Install above -34°C
- Secure cable every 50cm
Warranty & Shipping
- 12-month quality guarantee
- Free shipping over $500
- FedEx/UPS/DHL options
- Tracked delivery worldwide
Model Comparison
| Feature | This Model | 330106-05-30-10-12-CN | 330106-05-30-50-02-00 |
| Cable Length | 3.0 meters | 1.0 meter | 5.0 meters |
| Connector | ClickLoc (02) | FluidLoc (12) | ClickLoc (02) |
| Approvals | CSA/ATEX/IECEx | Country Specific | Standard |
| Resistance | 8.17Ω | 7.59Ω | 8.59Ω |
| Best For | Long-reach monitoring | Wet environments | Extra-long runs |
Technical Questions
Q: What’s the max cable distance?
A: Works up to 9 meters without signal boosters.
Q: Can I use it in dusty areas?
A: Yes, IP67 rating protects against dust.
Q: Is calibration certificate included?
A> Yes, factory calibration data provided.
Q: How to clean the probe?
A> Use alcohol wipes, avoid solvents.
