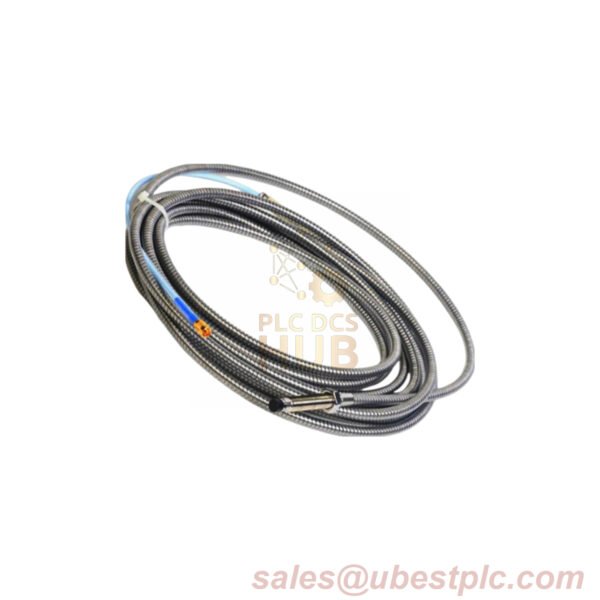

The 330130-035-11-05 combines FluidLoc leak prevention with armored protection for harsh industrial environments. Certified for CSA, ATEX, IECEx, this 3.5 m cable integrates gold ClickLoc connectors, Viton® O-ring seals, and dual-layer durability. Designed for 3300-series 5/8 mm probes with a linear range of 0.25–2.3 mm. Made in USA, COO available.
- Dual Protection: Armored jacket + FluidLoc seals against oil/mechanical stress.
- Field-Ready: Supports 305 m (1,000 ft) field wiring with 3 shielded conductors.
- Stability: <3% ASF drift in 93% humidity (IEC 68-2-3 compliant).
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330130-035-11-05 |
| Suffix Codes | 035: 3.5 m (13.1 ft) 11: Armored FluidLoc 05: CSA/ATEX/IECEx |
| Field Wiring | 0.2–1.5 mm² (24–16 AWG), 305 m max |
| Sealing | Viton® O-ring (differential pressure) |
| Humidity Resistance | <3% ASF change (56 days @ 93%) |
| Pull Strength | 330 N (75 lbf) via CableLoc |
