Description
Overview

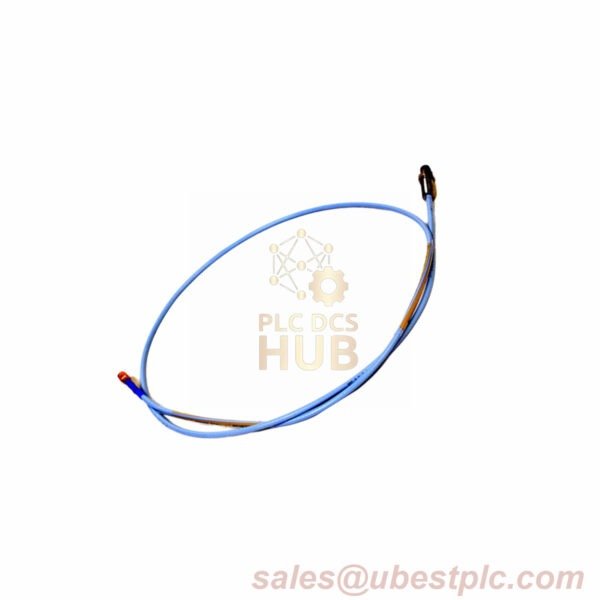

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-30-01-05) is engineered for precision and durability in industrial monitoring systems. Featuring a patented TipLoc molding process and CableLoc design, this probe ensures superior mechanical strength with 330 N (75 lbf) pull resistance. The 8 mm diameter enhances ruggedness, while the PPS plastic tip and stainless steel casing provide resilience against physical stress.
Technical Specifications
- Brand: Bently Nevada
- Model: 330140-08-30-01-05
- Suffix Breakdown:
- 08: 0.8-inch case length
- 30: 3.0-meter cable length (9.8 feet)
- 01: ClickLoc connector with protective cover + standard cable
- 05: CSA, ATEX, IECEx certifications
- Suffix Breakdown:
- Probe Tip: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 stainless steel
- Temperature Range:
- Standard: -62°F to +350°F (-52°C to +177°C)
- Extended: Probe tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
- DC Resistance: 8.17 Ω ±0.50 (3.0-meter length)
- Scale Factor: 7.87 V/mm ±5% (1/5m systems) or ±6.5% (9m/ETR systems)
- Deviation from Straight Line (DSL): <±0.025 mm (1 mil) for 1/5m; <±0.038 mm (1.5 mil) for 9m/ETR
- Humidity Resistance: <3% ASF variation at 93% humidity (56 days, IEC 68-2-3)
- Weight: 323 g/m (11.4 oz/ft)
- Sealing: Viton® O-ring (not pressure-tested pre-shipment)
- Ingress Protection: IP67-rated connector for dust/water resistance
- Insulation Resistance: >100 MΩ at 500 V DC
Contact Information
For certification documents and lead times:
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
